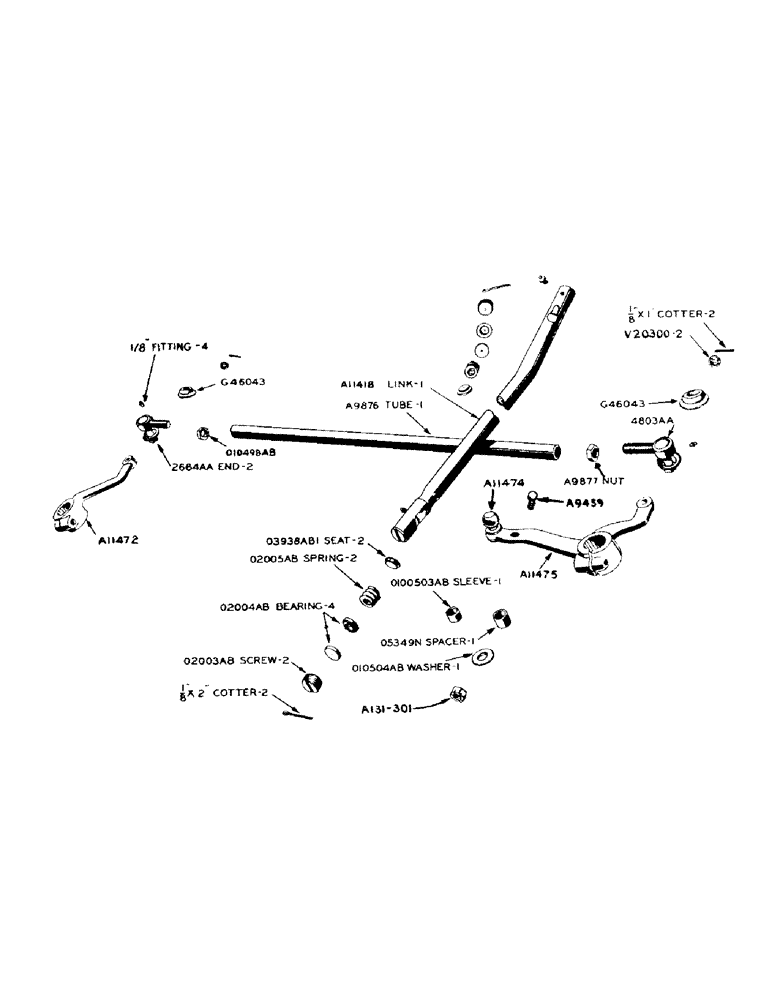

Запчасти Case IH 900 (113) - STEERING ARMS AND TIE ROD (05) - STEERING

131-301

LOCK NUT

LOCK-NUT - Marsden light 5/8-18 (NF) for A9459 bolt

1шт.

A9459

BOLT - hydr. power steering cyl. mounting

1шт.

A9876

TUBE - tie rod

1шт.

A9877

NUT

- jam, front axle tie rod, L.H. thread for 4803AA

1шт.

A11472

ARM - steering, R.H.

1шт.

1/2" x 3" fin. hex. bolt N.F.

1шт.

1/2" fin. hex. nut N.F.

1шт.

1/2" SAE std. lockwasher

1шт.

A11474

BALL

- steering arm

1шт.

A11475

ARM - steering spindle, arm and ball, L.H.

1шт.

1/2" x 3" fin. hex. bolt, N.F.

1шт.

1/2" fin. hex. nut, N.F.

1шт.

1/2" SAE std. lockwasher

1шт.

2664AA

X

END - tie rod, R.H. thrd.

1шт.

1/8" str. Lincoln fitting #5000

1шт.

1/8" x 1" cotter pin

1шт.

4803AA

X

END - tie rod, L.H. thrd.

1шт.

1/8" str. Lincoln fitting #5000

1шт.

1/8" x 1" cotter pin

1шт.

O10498AB

NUT - jam, front axle tie rod - R.H. thread for 2664AA

1шт.

O10503AB

X

SLEEVE - for A9459 bolt, when using power steering

1шт.

O10504AB

X

WASHER - for A9459 bolt, when using power steering

1шт.

G46043

COVER

- dust tie rod end

2шт.

V20300

OPERATOR MANUAL

NUT - slotted hex. for 2664AA and 4803AA tie rod end

2шт.

A11418

LINK - steering drag, A111418

1шт.

1/8" str. Lincoln fitting #5000, A111418 steering drag link

2шт.

O2003AB

X

SCREW - adjusting, for drag link, A111418 steering

2шт.

1/8" x 2" cotter pin, A111418 steering drag link

2шт.

O2004AB

BEARING - for drag link, A111418 steering

4шт.

O2005AB

X

SPRING - drag link, A111418 steering

2шт.

O3938AB1

X

SEAT AND SPACER - for drag link, A111418 steering

2шт.
