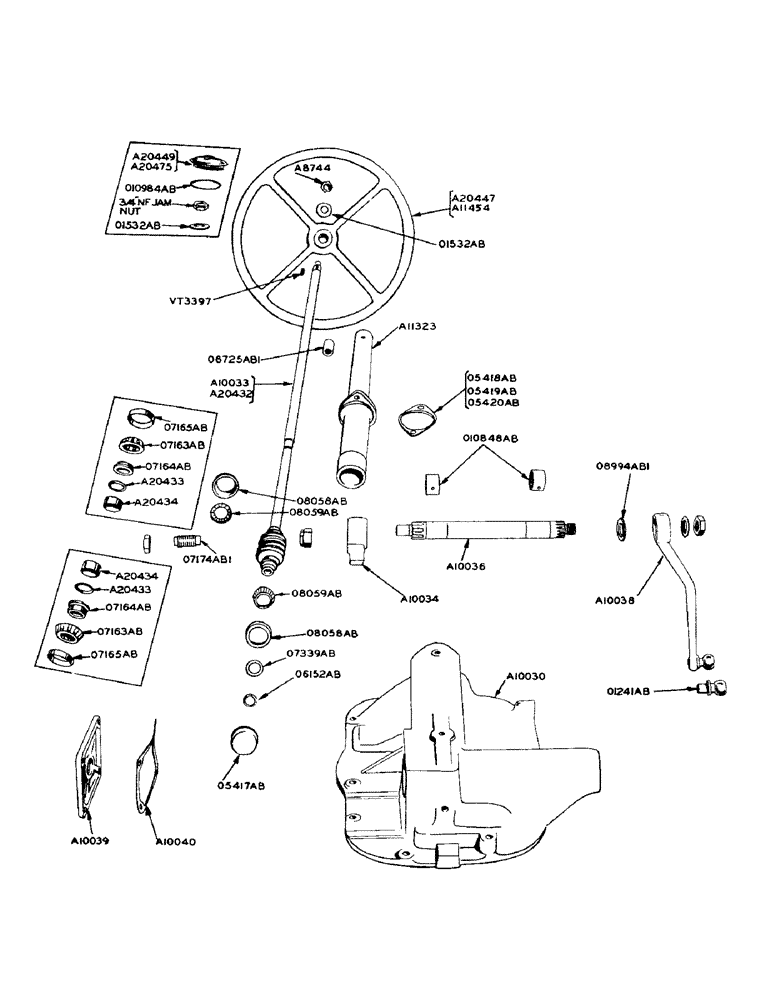

Запчасти Case IH 900 (110) - STEERING GEAR (05) - STEERING

A8744

NUT

- steering wheel shaft (prior to serial no. 8141036)

1шт.

A10030

COVER - transmission case top

1шт.

A10033

SHAFT - steering wheel w/worm gear (all tractors except serial no. 8129086 to 8129683) see A20432

1шт.

3/4" fin. hex. jam nut (NF) serila no. 8141036 and after

1шт.

A10034

GEAR - steering worm drive

1шт.

A10035

SCREW - adjusting, steering worm drive stop

2шт.

A10036

SHAFT - steering drop arm

1шт.

1" - 14 slotted nut

1шт.

1/8" x 1-1/4" cotter pin

1шт.

1" - 14 Marsden (light) locknut

1шт.

A10038

ARM - steering drop w/ball

1шт.

A10039

COVER - steering gear side

1шт.

3/8" x 1-1/8" fin. hex. cap screw (NC) w/lockwasher

4шт.

A10040

GASKET - side cover gasket

1шт.

A11323

COLUMN - steering shaft

1шт.

1/8" str. Lincoln fitting #5000

1шт.

1/2" x 1-1/2" fin. hex. bolt (NC) w/lockwasher

2шт.

A11454

WHEEL - steering (prior to serial no. 8141036) see A20447

1шт.

A20447

WHEEL - steering (serial no. 8141036 and after)

1шт.

A20449

EMBLEM CASE/IH

MEDALLION - steering wheel (serial no. 8141036 and after) no. power steering (see A20475)

1шт.

A20475

CAP

MEDALLION - steering wheel (serial no. 8141036 and after) with power steering

1шт.

O1241AB

BALL - steering drop arm

1шт.

O1532AB

WASHER - steering shaft upper end

1шт.

O5417AB

PLUG - steering column end

1шт.

O5418AB

SHIM - .033" thick

4шт.

O5419AB

SHIM - .005" thick

3шт.

O5420AB

SHIM - 28 gauge

4шт.

O6152AB

SNAP RING - steering worm

1шт.

O6725AB1

X

BUSHING - steering column

1шт.

O7174AB1

SCREW - adjusting

1шт.

1" (NF) hex. jam nut

1шт.

O7339AB

WASHER - bearing retainer

1шт.

O8058AB

X

CUP - steering shaft bearing (Timken #24) all tractors except serial no., Serial Range: 8129086-8129683

2шт.

O8059AB

X

CONE - steering shaft bearing (Timken #21BC) all tractors except serial no., Serial Range: 8129086-8129683

2шт.

O8994AB1

X

OIL SEAL - steering arm shaft

1шт.

O10848AB

X

BEARING - steering arm shaft needle (Timken #B2420-OH)

2шт.

O10984AB

X

"O" RING - steering wheel medallion (serial no. 8141036 and after)

1шт.

VT3397

KEY - steering shaft, Woodruff

1шт.

A20432

SHAFT - steering w/worm gear

1шт.

A20433

WASHER - worm gear adapter

2шт.

A20434

SLEEVE - worm gear adapter

2шт.

O7163AB

X

ROLLER - bearing, steering shaft (Timken no. 11BC)

2шт.

O7164AB

X

CONE - steering shaft (Timken no. 12BC)

2шт.

O7165AB

X

CUP - steering shaft (Timken no. 13BC)

2шт.
