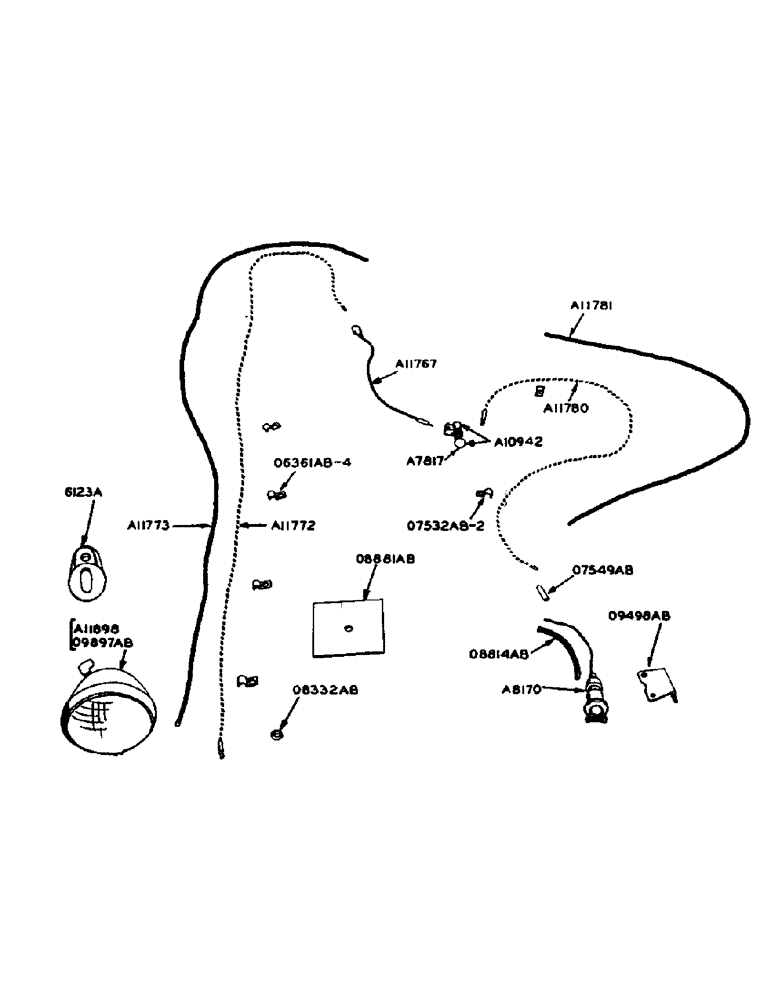

Запчасти Case IH 900 (067) - REAR TRACTOR LAMP AND OUTLET SOCKET (04) - ELECTRICAL SYSTEMS

A7817

KNOB

- light switch (prior to serial no. 8141036)

1шт.

A8170

SOCKET

- electric outlet

1шт.

#10 x 5/8" (NC) rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

A10942

KIT

SWITCH - light with A7817 knob (prior to serial no. 8141036)

1шт.

A11772

WIRE - rear lamp

1шт.

A11773

LOOM - rear lamp wire

1шт.

A11780

WIRE - light switch to outlet socket wire connector

1шт.

A11781

LOOM - light switch to electric outlet socket

1шт.

A11898

X

LAMP - combination flood and tail - 12 volt. see 09797AB. see listing of parts for difference

1шт.

A20465

KNOB

- light switch (serial no. 8141036 and after)

1шт.

A20467

NUT

- light switch mounting (serial no. 8141036 and after)

1шт.

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- light switch knob (serial no. 8141036 and after)

1шт.

A20620

SWITCH

- light (serial no. 8141036 and after) includes 1 - A20465, 1 - A20467, 1 - A20468 and 1-5/8" int. shakeproof lockwasher no. 1228-03

1шт.

6123A

X

BRACKET - combination tail lamp

1шт.

3/8" x 1-1/2" fin. hex. bolt w/nut and lockwasher

1шт.

O6182AB

CLIP - rear lamp wire (rear and top of fender)

2шт.

1/4" x 1/2" rhd. mach. screw w/nut and lockwasher

1шт.

5/16" X 1" rhd. mach. screw N.C.

1шт.

O6361AB

CLIP - rear lamp wire

3шт.

O7532AB

CLIP - outlet socket wire, 1 on transmission top cover and 1 on hydraulic flange

2шт.

O7549AB

CONNECTOR - two wire

1шт.

O8332AB

X

GROMMET - used on L.H. fender

1шт.

O8814AB

LOOM - electric outlet socket wire

1шт.

O8881AB

REINFORCEMENT - tail lamp mounting on L.H. fender

1шт.

O9498AB

BRACKET - electrical outlet socket

1шт.

O9897AB

X

LAMP - combination flood and tail lamp. see A11898. see listing of parts for difference

1шт.
