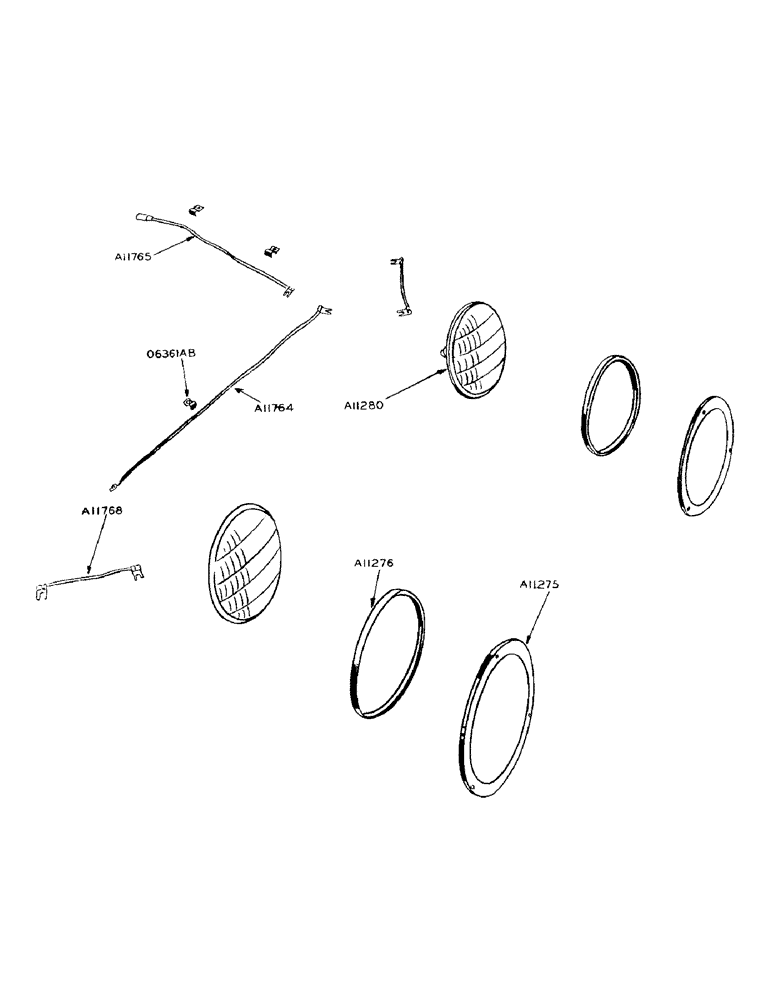

Запчасти Case IH 900 (066) - FRONT TRACTOR LAMP (04) - ELECTRICAL SYSTEMS

A7817

KNOB

- light switch

1шт.

A10942

KIT

SWITCH - light w/A7817 knob

1шт.

A11275

RING

- head lamp retainer

2шт.

#6 - 32 mach. screw nut zinc plated

6шт.

#6 - 32 x 1 pan head mach. screw - chrome plated

6шт.

A11276

GASKET

- head lamp retainer

2шт.

A11280

LAMP

- head, sealed unit

2шт.

A11764

WIRE - head lamp to head lamp

1шт.

A11765

WIRE - connector to head lamp (connector is part of A11765)

3шт.

A11766

WIRE - head lamp, Serial Range: connector-connector

1шт.

A11768

ELECTRICAL WIRE

WIRE - head, Serial Range: lamp-ground

2шт.

A11944

LOOM - from conduit to light switch wire connector

1шт.

O2825AB

X

CLIP - head lamp wire, on rad. grille cap and thermostat housing

2шт.
