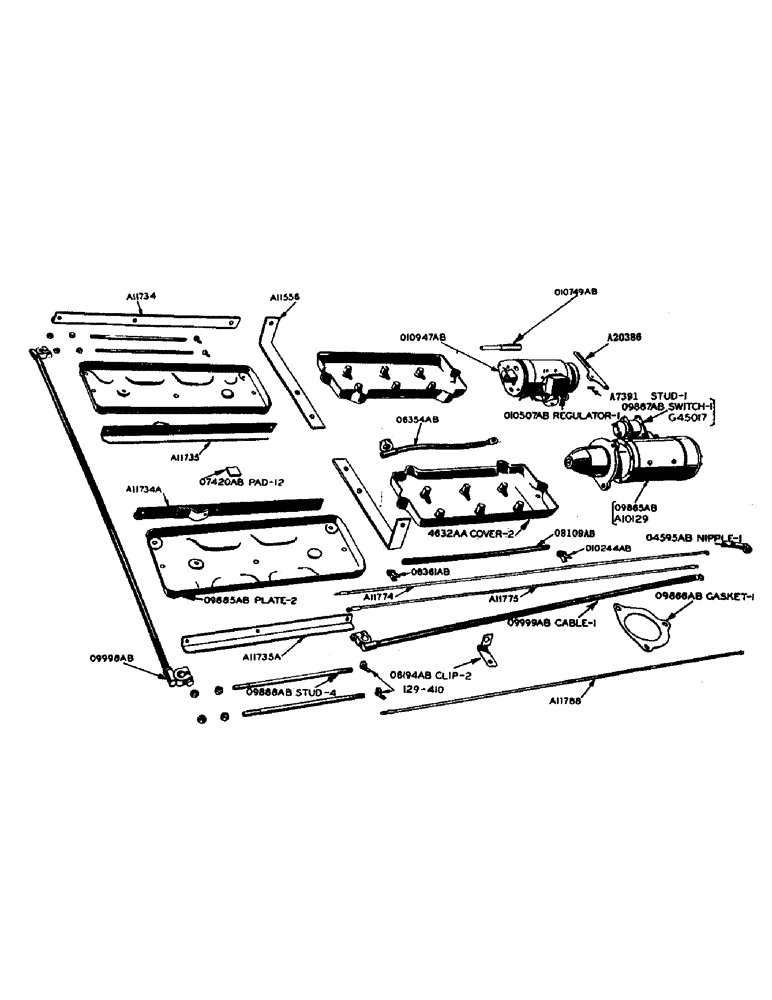

Запчасти Case IH 900 (060) - ELECTRIC LIGHTING AND STARTING PARTS, GENERATOR, STARTING MOTOR AND BATTERY GENERATOR (04) - ELECTRICAL SYSTEMS

.

A7391

STUD

STUD - generator belt adjusting strap

1шт.

.

3/8" (NF) light hex. nut w/lockwasher

1шт.

A20386

SPARE PART STRAP - hyd. steering pump adj.

1шт.

.

5/16" x 5/8" fin. hex. bolt (NC) w/shakeproof int.-ext. lockwasher #4018-24

1шт.

.

A20632

X

GENERATOR - 12 volt Delco-Remy #1100369

1шт.

104450A1R

REMAN-GENERATOR

Remanufactured Generator

1шт.

104450A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 20 ampere

1шт.

104017A1R

REMAN-GENERATOR

Generator

1шт.

104017A1C

CORE-GENERATOR

Return Number

1шт.

A20792

REGULATOR

REGULATOR - voltage, for A20632 generator (Delco-Remy no. 1118991)

1шт.

.

O10507AB

X

REGULATOR - voltage (electric Auto-Lite no. VRT 4104A)

1шт.

O10749AB

SPARE PART CARRIER - generator

1шт.

.

5/8" fin. hex. nut (NF) w/lockwasher

1шт.

.

5/16" x 1" fin. hex. bolt (NC) w/lockwasher

2шт.

O10947AB

SPARE PART GENERATOR - 12 volt (electric Auto-Lite #GHH-6001J) (can use A20632)

1шт.

A10129

SPARE PART MOTOR - starting - Auto-Lite #ML4356 (LP gas only) starting motor

1шт.

.

1/2" x 1-1/2" (NC) hex. hd. cap screw w/lockwasher, starting motor

3шт.

A11774

WIRE - starter switch to starting motor

1шт.

A11775

WIRE - starter switch to starting motor ground starting motor

1шт.

A11788

WIRE - starting switch to magneto (LP gas only), starting motor

1шт.

A20634

SPARE PART CABLE - battery to A20635 motor, starting motor

1шт.

A20635

SPARE PART MOTOR - starting Delco-Remy no. 113628 (diesel) starting motor

1шт.

.

87297386

REMAN-STARTER

Remanufactured Starter

1шт.

.

87297387

CORE-STARTER

Return Number

1шт.

A20648

SPARE PART WIRE - switch to A20635 motor solenoid, starting motor

1шт.

A20649

SPARE PART WIRE - switch to A20635 motor (ground), starting motor

1шт.

.

A20795

SOLENOID

SWITCH - starting motor solenoid (Delco-Remy no. 1119840) for A20635 starter, starting motor

1шт.

A20797

SPARE PART SWITCH - starting motor solenoid (Delco-Remy no. DR.1467) for A20623 starter, starting motor

1шт.

.

G45017

X

SWITCH - starter solenoid Auto-Lite #SSW-4001 (LP gas only), starting motor

1шт.

.

A21753

CAP

NIPPLE - rubber, starting motor terminal starting motor

1шт.

O6361AB

SPARE PART CLIP - for 08109AB loom (rear), starting motor

1шт.

O8109AB

LOOM - for starting switch to starting motor wires, starting motor

1шт.

O9865AB

SPARE PART MOTOR - starting w/09867AB switch (electric Auto-Lite #MCO-4004) starting motor

1шт.

.

1/2" x 1-1/2" (NC) hex. hd. cap screw w/lockwasher (diesel only), starting motor

3шт.

.

O9866AB

X

GASKET - starting motor

1шт.

.

O9867AB

X

SWITCH - starting solenoid for 09865AB starting motor (electric Auto-Lite #WSM-4104A) (diesel only) starting motor

1шт.

O10244AB

SPARE PART CLIP - for 08109AB loom (front), starting motor

1шт.

.

129-410

WING NUT,3/8"-16

WING NUT - 3/8 (NC) battery stud, zinc plated, battery

4шт.

.

BATTERY - storage, 6 volt (Electric Storage Battery Co., no. MA44041, type XF25, not furnished by J. I. Case Company battery

2шт.

A11556

BRACE - fender, fuel tank rear angle (LP gas only), battery

2шт.

.

1/2" x 1-3/4" fin. hex. bolt (N.C.) L.H., battery

1шт.

.

1/2" x 2" fin. hex. bolt (N.C.) R.H., battery

1шт.

.

5/16" x 7/8" carr. bolt w/nut and lockwasher, battery

4шт.

A11734

ANGLE - battery support (R.H. inside and L.H. outside)

2шт.

.

5/16" X 7/8" carr. bolt w/nut and lockwasher, battery

2шт.

A11735

ANGLE - battery support (L.H. inside and R.H. outside) battery

2шт.

.

5/16" x 7/8" carr. bolt w/nut and lockwasher, battery

2шт.

4632AA

SPARE PART COVER - battery

2шт.

O6194AB

SPARE PART CLIP - starting cable, one on steering column and one on transmission case top cover, battery

2шт.

.

O6354AB

X

CABLE - battery to ground, battery

1шт.

.

O7420AB

X

RUBBER PAD - for battery plate, battery

12шт.

O9885AB

SPARE PART PLATE - battery support, battery

2шт.

.

5/16" x 3/4" fin. hex. bolt (N.F.) w/nut and lockwasher, battery

8шт.

O9888AB

SPARE PART STUD - battery

4шт.

.

3/8" fin. hex. nut (N.C.), battery

8шт.

.

O9998AB

X

CABLE -, Serial Range: battery-battery

1шт.

.

O9999AB

X

CABLE - battery to starting motor

1шт.
