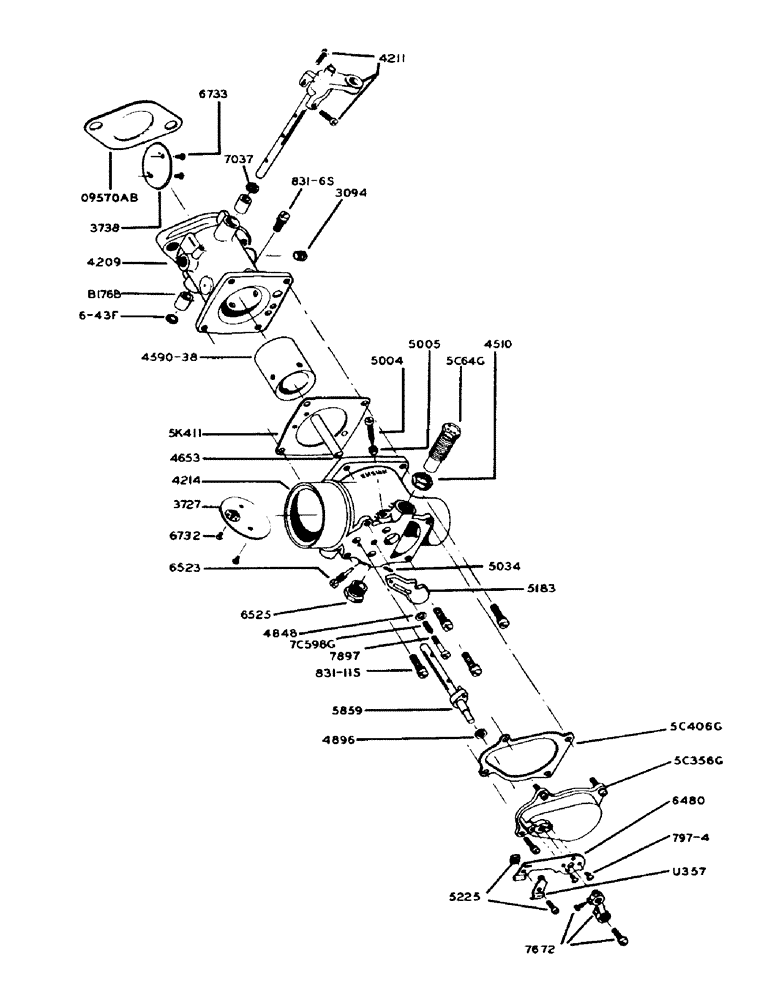

Запчасти Case IH 900 (058) - L.P. GAS ENGINE, PARTS FOR A11790 ENSIGN CARBURETOR, 1-1/2 MODEL KGL, ENSIGN NUMBER 4206 (03) - FUEL SYSTEM

6-43F

PLUG - Welch

1шт.

5C64G

LOCKNUT - fuel adjusting screw

1шт.

B176B

BUSHING - throttle bearing

2шт.

5C356G

PLATE - cover

1шт.

U357

CLAMP - choke tube

1шт.

5C406G

GASKET - cover plate

1шт.

5K411

GASKET

1шт.

7C598G

SPRING - pressure

1шт.

797-4

SCREW - choke tube clamp

2шт.

831-6S

SET SCREW - venturi w/lockwasher

1шт.

831-11S

SCREW - air horn

4шт.

3094

PLUG - 1/8" pipe

1шт.

3727

VALVE

DISC - choke

1шт.

3738

WASHER

DISC - throttle

1шт.

4209

ORIFICE

TUBE - throttle, partial assembly

1шт.

4211

TOY

SHAFT - throttle and stop lever assembly

1шт.

CAS4214

TOOL

AIR HORN - partial assembly

1шт.

4510

SWITCH

LOCKNUT - fuel adjusting screw

1шт.

4590-38

VENTURI

1шт.

4653

GUARD

NOZZLE

1шт.

4848

THREADED TIE-ROD

WASHER - spring retaining

1шт.

4896

PIN

WASHER - dust

1шт.

5004

COVER

SCREW - starting adjusting

1шт.

5005

LOCKNUT - starting adjusting screw

1шт.

5034

SPRING - latching

1шт.

5183

LEVER - valve

1шт.

5225

SPEAKER

SCREW - choke tube clamp nut

1шт.

5859

CHOKE SHAFT AND CAM LEVER ASSEMBLY

1шт.

6480

SUPPORT - choke tube

1шт.

6523

PTO

PLUG - starting adjusting screw

1шт.

6525

YOKE

PLUG - screw

1шт.

6732

SCREW - choke shaft

2шт.

6733

SCREW - shaft

2шт.

7037

TESTER

WASHER - dust

1шт.

7672

KIT

LEVER - choke assembly

1шт.

7897

STUD

PIVOT - valve lever

1шт.

O9570AB

X

GASKET -, Serial Range: carburetor-manifold

1шт.
