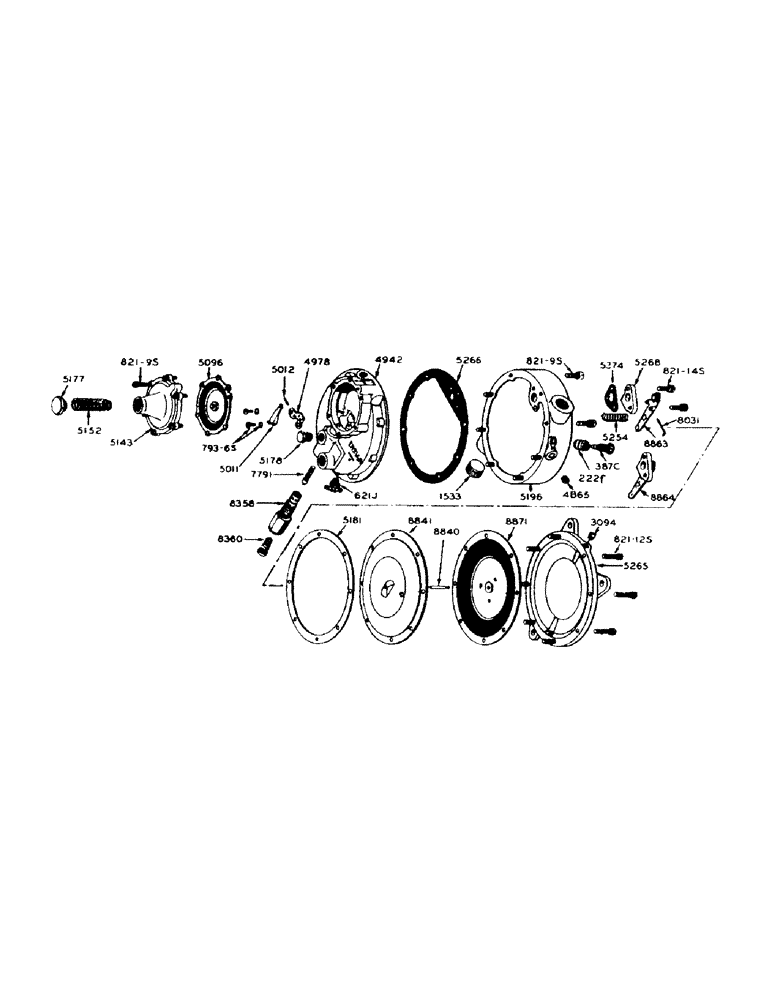

Запчасти Case IH 900 (057) - L.P. GAS ENGINE, PARTS FOR 4001AA L.P. GAS REGULATOR (03) - FUEL SYSTEM

4B65

BLEED SCREW

1шт.

Included in 2519 service parts kit.

1шт.

222F

RETAINER - idle adjusting screw

1шт.

Included in 2519 service parts kit.

1шт.

387C

SCREW - idle adjusting

1шт.

Included in 2519 service parts kit.

1шт.

621J

DRAIN COCK

1шт.

793-6S

SCREWS FOR 4978 PIVOT SUPPORT WITH SHAKEPROOF LOCKWASHER

2шт.

Included in 2519 service parts kit.

1шт.

821-9S

SCREW (7 used for 5196 body and 6 used for 5143 cover) with lockwasher

13шт.

Included in 2519 service parts kit.

1шт.

821-12S

SCREW FOR 5265 SUPPORT PLATE WITH LOCKWASHER

8шт.

Included in 2519 service parts kit.

1шт.

821-14S

SCREW FOR 8864 MAIN VALVE WITH LOCKWASHER

2шт.

Included in 2519 service parts kit.

1шт.

1533

COUNTER SUNK PLUG, 3/4"

1шт.

2519

KIT - service parts, for 4001AA regulator, Includes: P/N 4B65, 222F, 387C, 793-6S, 821-9S, 821-12S, 821-14S, 5096, 5152, 5181, 5254, 5266, 5374, 7791, 8360, 8840, 8864 and 8871

1шт.

3094

PIPE PLUG - 1/8"

1шт.

4942

VAPORIZER BODY

1шт.

4978

GUARD

PIVOT SUPPORT

1шт.

5011

VALVE LEVER

1шт.

5012

PIVOT FOR VALVE LEVER

1шт.

5096

JACK

DIAPHRAGM ASSEMBLY - pressure regulator

1шт.

Included in 2519 service parts kit.

1шт.

5143

KIT

COVER FOR PRESSURE REGULATOR

1шт.

5152

GEAR

SPRING - pressure regulator

1шт.

Included in 2519 service parts kit.

1шт.

5177

RETAINER - pressure regulagor spring

1шт.

5178

PIPE PLUG - 1/4"

1шт.

5181

BOLT,V, 3/4" - 10 x 4", Gr 8

GASKET - partition plate

1шт.

Included in 2519 service parts kit.

1шт.

5196

BODY - fuel regulator

1шт.

5254

BOLT

SPRING - fuel regulator

1шт.

Included in 2519 service parts kit.

1шт.

5265

SPINDLE

SUPPORT PLATE

1шт.

5266

HYDRAULIC HOSE

GASKET FOR VAPORIZER BODY

1шт.

Included in 2519 service parts kit.

1шт.

5268

RETAINER

VALVE SEAT

1шт.

5374

GASKET FOR MAIN VALVE

1шт.

Included in 2519 service parts kit.

1шт.

7791

NEEDLE VALVE

1шт.

Included in 2519 service parts kit.

1шт.

8031

RIGID TUBE

PIVOT PIN

1шт.

8358

FUEL INLET - valve seat and strainer assembly

1шт.

8360

FUEL INLET - strainer assembly

1шт.

Included in 2519 service parts kit.

1шт.

8840

PUSH PIN

1шт.

Included in 2519 service parts kit.

1шт.

8841

SPINDLE

PARTITION PLATE

1шт.

8863

VALVE LEVER INCLUDES 5374 GASKET, 5268 SEAT, 8031 PIN AND 8863 LEVER

1шт.

8864

MAIN VALVE ASSEMBLY

1шт.

Included in 2519 service parts kit.

1шт.

8871

TUBE

FUEL REGULATOR DIAPHRAGM ASSEMBLY INCLUDES 8840 PIN

1шт.

Included in 2519 service parts kit.

1шт.
