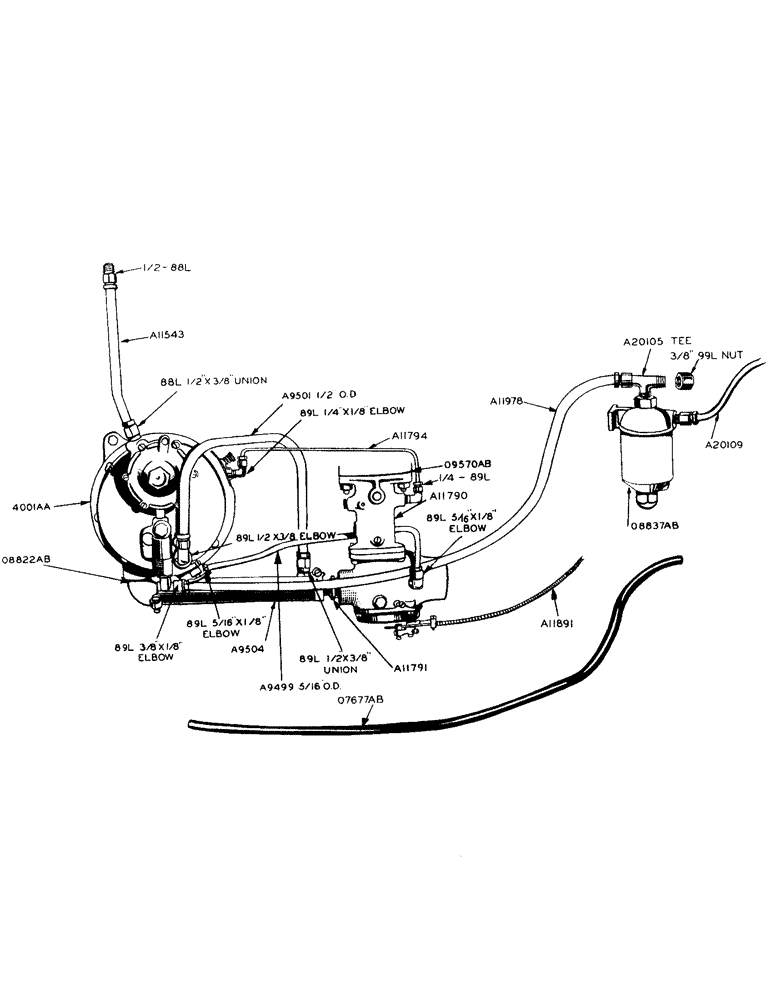

Запчасти Case IH 900 (054) - L.P. GAS ENGINE, LIQUID FILTER, REGULATOR AND CARBURETOR, LIQUID FILTER (03) - FUEL SYSTEM

A11978

TUBE - fuel filter to regulator (3/8" O.D. x 44-1/2")

1шт.

3/8" tube x 1/4" P.T. Imperial 89L hi-duty elbow

2шт.

A20105

TEE - 3/8" tube with Imperial hi-duty #99 nut

1шт.

O7677AB

LOOM - filter to regulator tube

1шт.

O8837AB

FILTER - liquid (Ensign #6257)

1шт.

A9496

PLATE - mounting, regulator

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher, regulator

2шт.

A9497

BRACE, regulator

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher, regulator

1шт.

A9499

TUBE - regulator, Serial Range: balance-carburetor

1шт.

5/16" tube x 1/8" P.T. Imperial hi-duty elbow #89L, regulator

2шт.

A9501

HOUSING

TUBE -, Serial Range: regulator-block

1шт.

1/2" tube x 3/8" P.T. Imperial hi-duty elbow #89L, regulator

1шт.

1/2" tube x 3/8" P.T. Imperial hi-duty connector #88L, regulator

1шт.

A9504

SPARE PART

HOSE - vapor connection, regulator

1шт.

#4 - 3/4" hose clamp, regulator

2шт.

A11543

SEAL

TUBE - regulator water inlet to water pump

1шт.

1/2" x 3/8" P.T. Imperial #88L hi-duty half union, regulator

2шт.

A11791

NIPPLE - 1" hose, vapor hose to carburetor, regulator

1шт.

A11794

TUBE - idle fuel, regulator

1шт.

1/4" tube x 1/8" P.T. Imperial #89L hi-duty elbow, regulator

2шт.

4001AA

REGULATOR - LP-gas (Ensign #8793)

1шт.

5/16" x 1-1/4" N.F. hex. bolt w/lockwasher, regulator

3шт.

O8822AB

ELBOW - vapor, Serial Range: hose-regulator

1шт.

A195-103

WROUGHT WASHER - 3/8" zinc plated for holding choke cable in dash (LP gas only), carburetor

2шт.

A11790

CARBURETOR - LP and natural gas (Ensign model KGL 1-1/2" no. 4206)

1шт.

A11891

CONTROL

- choke, carburetor

1шт.

O9570AB

X

GASKET - inlet, Serial Range: manifold-carburetor

1шт.
