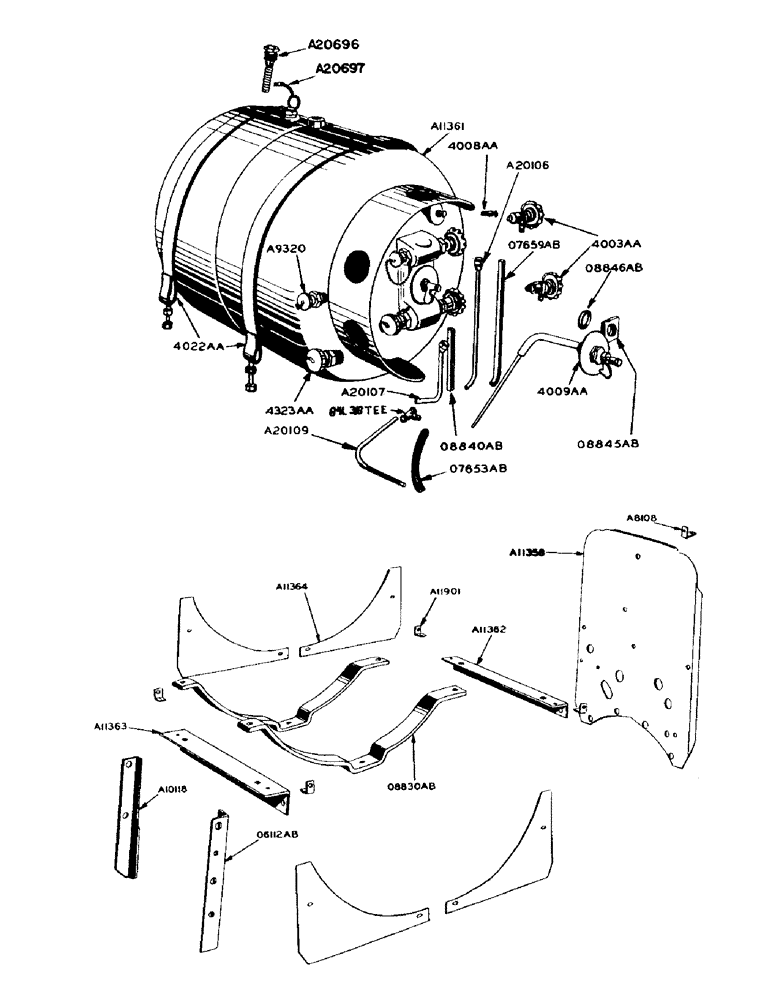

Запчасти Case IH 900 (052) - L.P. GAS ENGINE, FUEL TANK AND SUPPORTS (03) - FUEL SYSTEM

A8108

BRACE - hood rear support plate

1шт.

3/8" x 1" (NF) hex. hd. bolt w/nut and lockwasher

1шт.

A8659

VALVE - safety relief

1шт.

A20696

SEAL

CAP - safety relief valve

1шт.

A20697

WIPER

VALVE - vapor return

1шт.

A10118

LUBE NIPPLE

POST - fuel tank rear support, L.H.

1шт.

1/2" x 1" N.C. hex. hd. cap screw w/lockwasher

2шт.

A11358

PLATE - hood rear support

1шт.

A11361

TANK - fuel, with valves and gauge assembly

1шт.

A11362

ANGLE - fuel tank front support

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

A11363

ANGLE - fuel tank bottom support

1шт.

1/2" x 1-1/4" fin. hex. bolt (NF)

3шт.

1/2" fin. hex. nut N.F. w/lockwasher

2шт.

A11364

SHEET - fuel tank side

4шт.

1/4" x 5/8" truss hd. mach. screw (NC) w/nut and lockwasher

4шт.

1/4" x 1/2" truss hd. mach. screw (NC) w/lockwasher

4шт.

A11901

BRACKET - fuel tank side sheet

4шт.

1/4" x 3/4" fin. hex. bolt (NF) w/nut and lockwasher

4шт.

A20106

TUBE - vapor outlet valve to tee w/nut

1шт.

A20107

TUBE - liquid outlet valve w/nut

1шт.

A20109

TUBE - tee to fuel filter

1шт.

3/8" tube, Imperial #84L hi-duty free

1шт.

4003AA

X

VALVE - liquid and vapor outlet

2шт.

4008AA

GAUGE - fixed liquid level

1шт.

4009AA

ROTOGAGE - with 13-1/8" dip tube. can use A20423 and A20489

1шт.

4022AA

STRAP - fuel tank and "T" bolt

2шт.

4323AA

VALVE - double check filler (3/4" pipe thrd.) for A4002AA fuel tank

1шт.

O6112AB

POST - fuel tank rear support, R.H.

1шт.

1/2" x 1" NC hex. hd. cap screw w/lockwasher

2шт.

1/2" X 1-1/4" N.F. hex. hd. cap screw w/nut and lockwasher

1шт.

O7653AB

LOOM - tee to filter tube

1шт.

O7659AB

LOOM - vapor valve to tee tube

1шт.

O8830AB

CRADLE - fuel tank

2шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

O8840AB

LOOM - liquid valve to tee tube

1шт.

O8845AB

ADAPTER - rotogage (use with 4009AA)

1шт.

1/4" - 28 x 3/4" N.F. rd. hd. mach. screw w/lockwasher

4шт.

O8846AB

GASKET - rotogage adapter (use with 4009AA)

1шт.

A20423

GAUGE - visual fuel

1шт.

1/4" x 15/16" N.F. rhd. mach. screw (zinc plated) w/lockwasher

4шт.

A20489

GASKET - visual fuel gauge mounting

1шт.
