Запчасти Case IH 900 (030) - DIESEL ENGINE, STARTING FLUID PRIMER PUMP AND DISPENSER (03) - FUEL SYSTEM

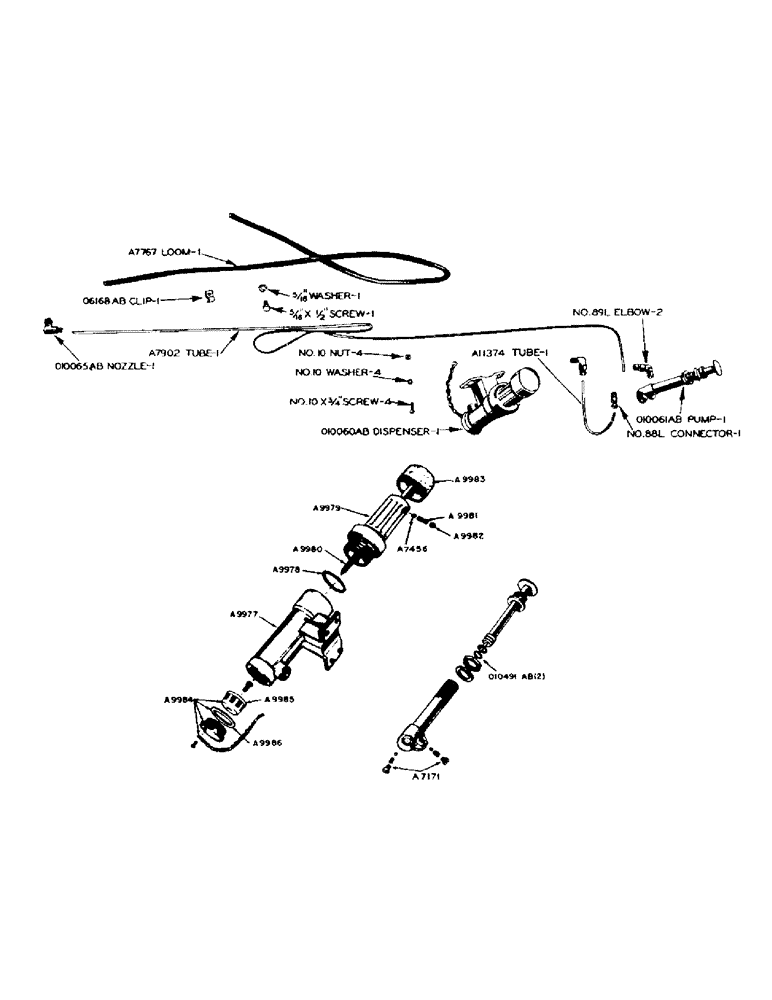

Схема запчастей Case IH 900 - (030) - DIESEL ENGINE, STARTING FLUID PRIMER PUMP AND DISPENSER (03) - FUEL SYSTEM

№

Артикул

Название

Примечание

Количество

A7767

LOOM - for A7902 tube

1шт.

A7902

TUBE - starting fluid primer, Serial Range: pump-manifold

1шт.

A11374

TUBE - starting fluid dispenser to primer pump

1шт.

1/8" O.D. x .032 wall x 10-1/2" long

1шт.

O6168AB

CLIP - for A7902 tube

1шт.

5/16" x 1/2" N.C. hex. hd. cap screw w/lockwasher

1шт.

O10060AB

DISPENSER - starting fluid

1шт.

1/8" tube x 1/8" P.T. Imperial #89L hi-duty elbow

1шт.

#10-24 x 5/8" rhd. mach. screw (NC) zinc plated, w/nuts and lockwashers

4шт.

O10061AB

PUMP - starting fluid primer

1шт.

1/8" tube x 1/8" P.T. Imperial #89L hi-duty elbow

1шт.

1/8" tube x 1/8" P.T. Imperial #88L hi-duty connector

1шт.

O10065AB

NOZZLE - starting fluid priming elbow (connects A7902, Serial Range: tube-manifold)

1шт.

A7171

BRACKET

KIT - service for 010061AB pump (consists fo 2 - ball check, 2 - ball check spring, 2 - retainer for spring and 2 - "O" ring packing), and parts for 010060AB dispenser

1шт.

A7456

X

BALL - plunger lock, 3/16" dia., parts for 010060AB dispenser and 010061AB pump

1шт.

A9977

BODY - lower, parts for 010060AB dispenser and 010061AB pump

1шт.

A9978

GASKET - body, parts for 010060AB dispenser and 010061AB pump

1шт.

A9979

CHAMBER - upper capsule, short, parts for 010060AB dispenser and 010061AB pump

1шт.

A9980

PLUNGER ASSEMBLY - short, parts for 010060AB dispenser and 010061AB pump

1шт.

A9981

SPRING - plunger lock, parts for 010060AB dispenser and 010061AB pump

1шт.

A9982

PLUG - plunger lock, parts for 010060AB dispenser and 010061AB pump

1шт.

A9983

KNOB - plunger, parts for 010060AB dispenser and 010061AB pump

1шт.

A9984

PLUG - and strainer assembly, with chain, parts for 010060AB dispenser and 010061AB pump

1шт.

A9985

STRAINER, parts for 010060AB dispenser and 010061AB pump

1шт.

A9986

GASKET

- for A9984 plug, parts for 010060AB dispenser and 010061AB pump

1шт.

O10491AB

X

"O" RING - primer pump plunger, parts for 010060AB dispenser and 010061AB

2шт.

Выбрано товаров: 26
