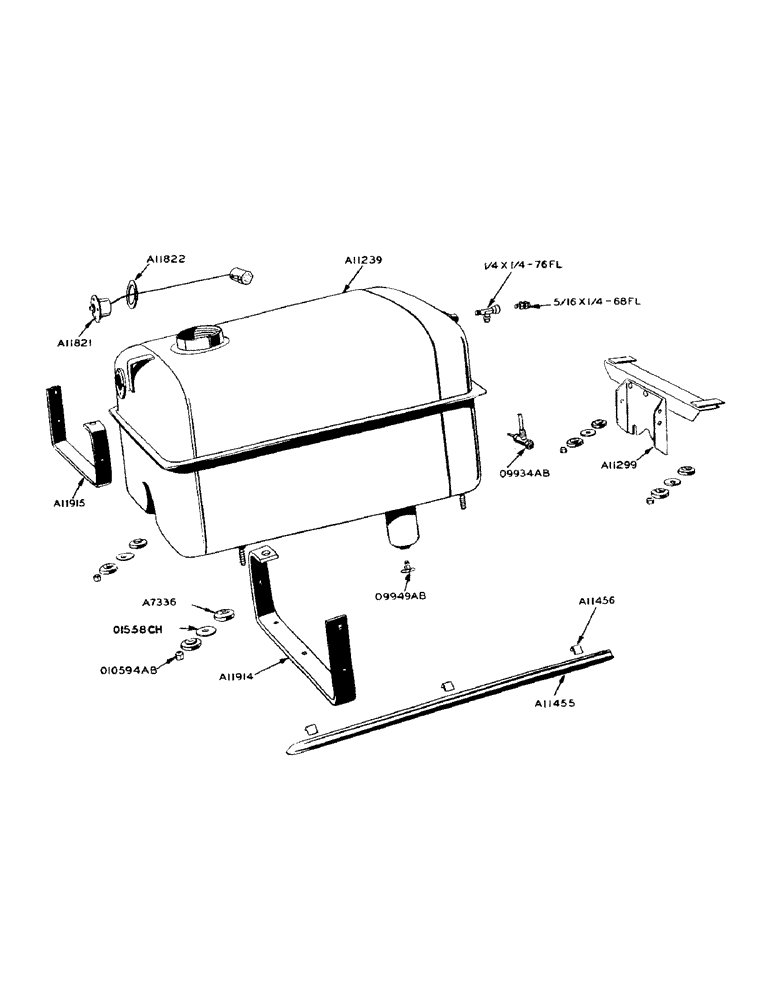

Запчасти Case IH 900 (028) - DIESEL ENGINE, FUEL TANK AND SUPPORTS (03) - FUEL SYSTEM

A7336

CUSHION

- support

8шт.

A11239

TANK - fuel

1шт.

1/4" x 1/4" P.T. Imperial flex. tee #76FL

1шт.

5/16" x 1/4" P.T. Imperial flex. connector #68FL

1шт.

A11299

SUPPORT - front

1шт.

A11455

MOLDING

- trim

2шт.

A11456

LOCK PIN

CLIP - trim molding

4шт.

A11821

X

SENDER - fuel gauge

1шт.

#10 - 32 x 7/16" rd. hd. mach. screw (zinc plated)

4шт.

#10 lockwasher

4шт.

A11822

GASKET

- fuel gauge sender

1шт.

A11914

SUPPORT - fuel tank & battery, R.H.

1шт.

1/2" X 1" N.C. hex. hd. cap screw w/lockwasher

2шт.

1/2" x 1-1/4" N.F. hex. hd. cap screw w/nut and lockwasher

1шт.

A11915

SUPPORT - fuel tank and battery, L.H.

1шт.

1/2" x 1" N.C. hex. hd. cap screw w/lockwasher

2шт.

O1558CH

X

WASHER - mounting stud

4шт.

O9934AB

X

VALVE - needle (3/8" tube size x 3/8" P.T.) to which 09935AB tube connects

1шт.

O9949AB

X

VALVE - water drain

1шт.

O10594AB

X

NUT - mounting stud stop

4шт.
