Запчасти Case IH 900 (026) - DIESEL ENGINE, PARTS FOR A10386 FUEL FILTER (03) - FUEL SYSTEM

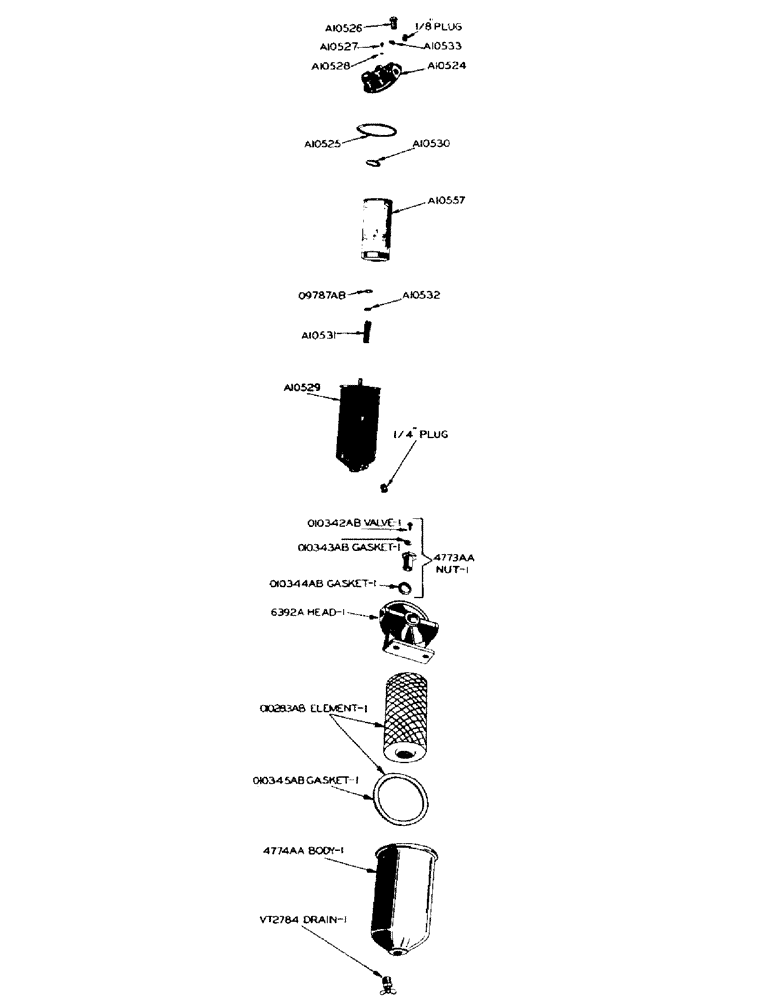

Схема запчастей Case IH 900 - (026) - DIESEL ENGINE, PARTS FOR A10386 FUEL FILTER (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A10524

HEAD

1шт.

1/8" sq. hd. pipe plug

1шт.

A10525

GASKET

- for head

1шт.

A10526

NUT

1шт.

A10527

SCREW - bleed

1шт.

A10528

GASKET

- bleed screw

1шт.

A10529

CASE

1шт.

1/4" brass plug

1шт.

A10530

GASKET

- for element

1шт.

A10531

SPRING

1шт.

A10532

RETAINER - for "O" ring

1шт.

A10533

GASKET - for nut

1шт.

A10557

FILTER

ELEMENT

1шт.

O9787AB

X

"O" RING

1шт.

6392A

HEAD - filter, parts for 010013AB fuel

1шт.

4773AA

NUT - clamp, assembly, parts for 010013AB fuel filter

1шт.

4774AA

BODY - filter, parts for 010013AB fuel

1шт.

O10283AB

ELEMENT

- with gasket, for 010013AB fuel filter, parts

1шт.

O10342AB

BLEED VALVE, parts for 010013AB fuel filter

1шт.

O10343AB

X

GASKET - bleed valve, parts for 010013AB fuel filter

1шт.

O10344AB

X

GASKET - clamp nut, parts for 010013AB fuel filter

1шт.

O10345AB

X

GASKET - filter body, parts for 010013AB fuel

1шт.

VT2784

X

DRAIN COCK, parts for 010013AB fuel filter

1шт.

Выбрано товаров: 23
