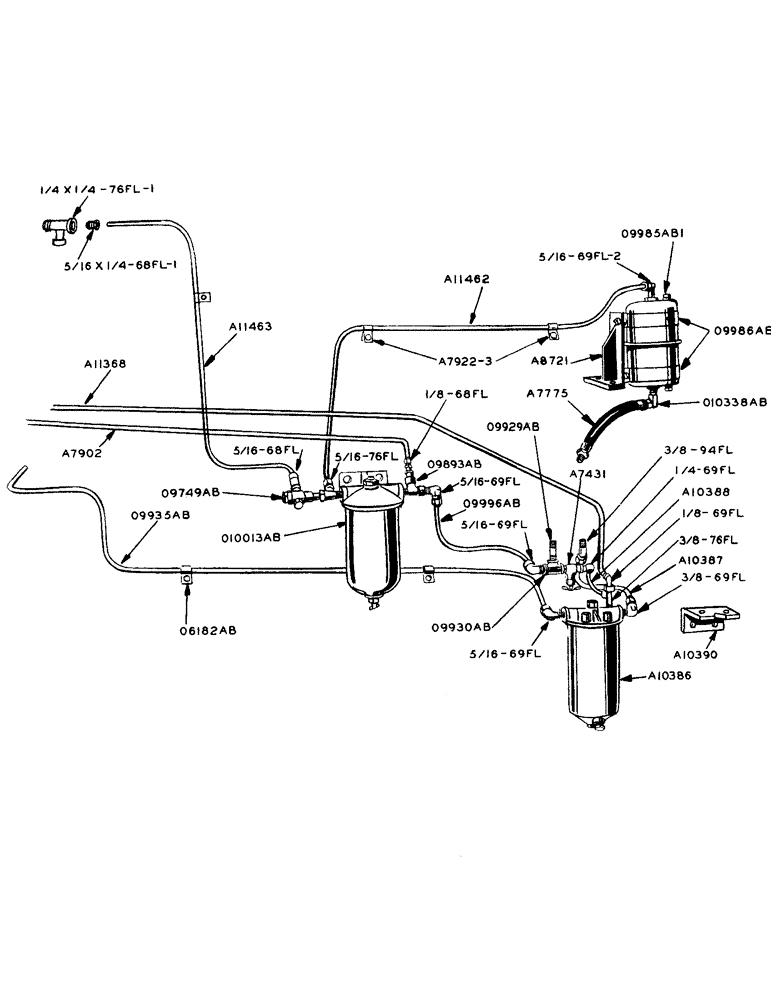

Запчасти Case IH 900 (022) - DIESEL ENGINE, FUEL FILTERS AND TUBES, PRIOR TO SERIAL NUMBER 8141036 (03) - FUEL SYSTEM

A7431

VALVE

- needle, first stage fuel filter and tubes

1шт.

A10386

SPARE PART

FILTER - first stage, fuel, and tubes

1шт.

A10387

TUBE

- first stage filter to fuel pump w/2 - #60FL sleeve and 2 - #61FL nut (for 3/8" tubing)

1шт.

3/8" x 1/4" P.T. Imperial flex. 45 degree elbow #94FL, first stage fuel filter and tubes

1шт.

3/8" x 1/4" P/T. Imperial flex. elbow #69FL, first stage fuel filter and tubes

1шт.

A10388

TUBE

- first stage filter by-pass, 1/4" tubing w/2 - #60 FL sleeve and 2 - #61FL nut (for 1/4" tubing), fuel

1шт.

1/4" tube x 1/8" Imperial flex. tee #76FL, first stage fuel filter

1шт.

1/4" tube x 1/8" Imperial flex. elbow #69FL, first stage fuel filter

1шт.

1/8" tube x 1/8" Imperial flex. elbow #69FL, first stage fuel filter

1шт.

A10390

BRACKET

- first stage filter bracket, fuel, and tubes

1шт.

3/8" x 7/8" N.C. hex. hd. cap screw, first stage fuel filter and tubes

2шт.

A11368

TUBE - vacuum gauge, first stage fuel filter

1шт.

1/8" tubes x 1/8" P.T. Imperial #69FL elbow, first stage fuel filter

1шт.

O6182AB

CLIP - for 09935AB tube, first stage fuel filter

2шт.

O9929AB

X

NIPPLE - 1/4" x 1-1/2" brass pipe (connects 09930AB "T" to fuel pump), first stage, filter and tubes

1шт.

O9930AB

X

TEE - 1/4" P.T. brass female, first stage fuel filter and tubes

1шт.

O9935AB

TUBE - fuel tank to first stage filter (3/8" tube w/#60FL sleeve and #61FL nut)

1шт.

A7902

TUBE - fuel oil pressure gauge, second stage, filter

1шт.

1/8" tube x 1/8" P.T. Imperial connector #68FL, second stage fuel filter

1шт.

A7922

CLIP

- tube, relief valve to fuel tank and A11462 tube, second stage, filter

3шт.

A11462

SPARE PART

TUBE - 2nd stage filter to final stage filter w/2 #60FL sleeve and 2 - #61FL nut (for 5/16" tubing), fuel

1шт.

5/16" tube x 1/4" P.T. Imperial flex. elbow #69FL, second stage fuel filter

1шт.

5/16" tube x 1/4" P.T. Imperial flex. tee #76FL, second stage fuel filter

1шт.

A11463

TUBE - leak-off, relief valve to fuel tank w/2 - #60FL sleeve and 2 - 61FL nut (for 5/16" tubing), second stage, filter

1шт.

5/16" x 1/4" P.T. Imperial flex. connector #68FL, second stage fuel filter and tubes

2шт.

1/4" tube size x 1/4" P.T. Imperial flex tee 76FL, second stage fuel filter

1шт.

O9749AB

VALVE - relief (American Bosch #VA7928A), second stage fuel filter and tubes

1шт.

O9893AB

TEE - 1/4" for second stage filter, fuel, and tubes

1шт.

1/4" x 1/8" reducer bushing brass, second stage fuel filter and tubes

1шт.

O9996AB

TUBE - fuel pump to second stage filter w/2 - #60FL sleeve and 2 - #61FL nut (for 5/16" tubing)

1шт.

5/16" x 1/4" P.T. Imperial flex. elbot #69FL, second stage fuel filter and tubes

2шт.

O10013AB

FILTER - second stage fuel (model #B6-1984), and tubes

1шт.

3/8" x 1" N.C. hex. hd. cap screw w/lockwasher, second stage fuel filter and tubes

2шт.

A7775

FUEL HOSE,0.38" ID x 9.25"

Final Stage Filter To Fuel Pump, And Tubes 0.38" ID x 9.25"

1шт.

A8721

BRACKET - final stage fuel filter, and tubes

1шт.

7/16" fin. hex. bolt N.C. w/lockwasher, final stage fuel filter and tubes

2шт.

O9985AB1

FILTER - final stage fuel, and tubes

1шт.

O9986AB

CLAMP - final stage filter, fuel, and tubes

2шт.

5/16" x 1/2" fin. hex. bolt, N.C. w/shakeproof ext.-int. lockwasher #4018-24, final stage fuel filter and tubes

1шт.

5/16" x 3/4" fin. hex. bolt, N.F. w/shakeproof ext.-int. lockwasher #4018-24, final stage fuel filter and tubes

3шт.

1/4" x 1-1/2" rd. hd. mach. screw w/hex. nut, final stage fuel filter and tubes

2шт.

5/16" fin. hex. nut N.F., final stage fuel filter and tubes

3шт.

O10338AB

UNION

- 90 degree adapter, connects A7775 to final stage filter, fuel, and tubes

1шт.
