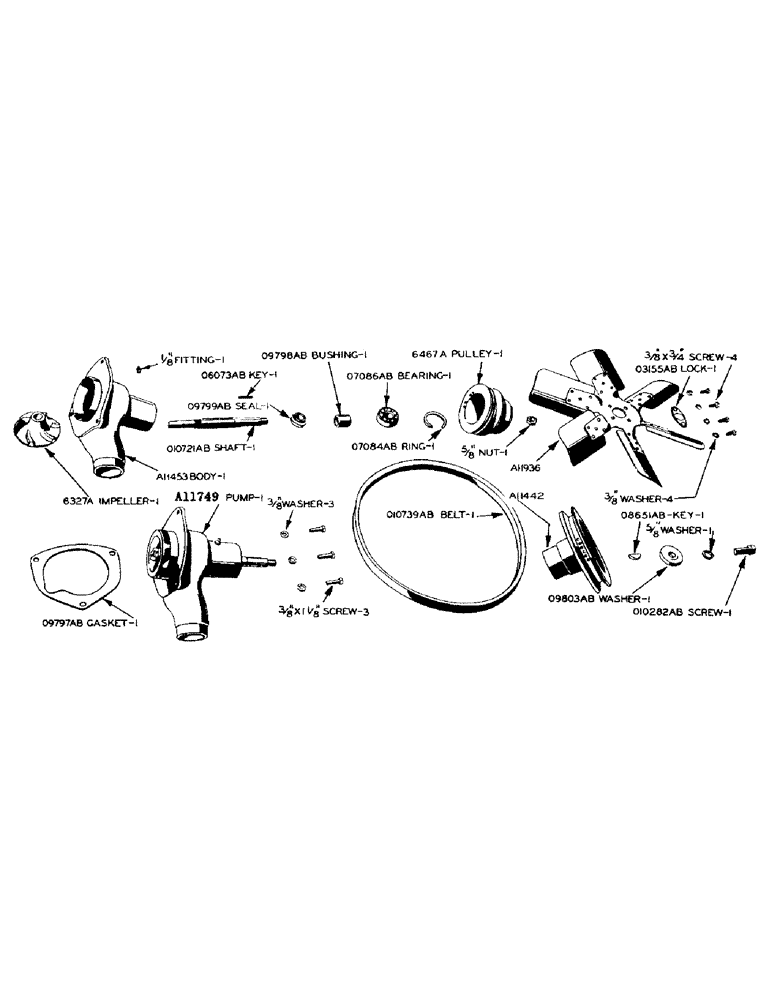

Запчасти Case IH 900 (075) - FAN AND WATER PUMP ASSEMBLY (02) - ENGINE

A11442

X

PULLEY - fan drive, on crankshaft

1шт.

A11749

PUMP, WATER

PUMP - water, less fan pulley

1шт.

1/8" - 67-1/2 degree safety vent lub. fitting

1шт.

3/8" x 1-1/4" fin. hex. bolt (NC) w/lockwasher

3шт.

A11452

BODY - water pump (use A11453)

1шт.

A11453

BODY

- water pump, with bushing

1шт.

3/8" ctsk. headless pipe plug

1шт.

A11936

FAN

- radiator

1шт.

6327A

IMPELLER - water pump

1шт.

6467A

PULLEY - fan

1шт.

3/8" x 3/4" fin. hex. bolt (NC) w/lockwashers

4шт.

O3155AB

X

LOCK - water pump shaft nut

1шт.

O6073AB

X

KEY - water pump & fan shaft

1шт.

O7084AB

X

SNAP RING - bearing retainer

1шт.

O7086AB

X

BEARING - water pump shaft (ND #8604)

1шт.

O8651AB

X

KEY - Woodruff, fan drive pulley on crankshaft

1шт.

O9797AB

GASKET

- water pump

1шт.

O9798AB

X

BUSHING - water pump

1шт.

O9799AB

SEAL - water pump

1шт.

O9803AB

X

WASHER - lower fan drive pulley

1шт.

O10282AB

X

CAP SCREW - lower fan drive pulley

1шт.

5/8" std. lockwasher

1шт.

A28116

SHAFT

- water pump and fan (Replaces O10721AB)

1шт.

SHAFT 010721AB THE CORRECT SHAFT TO

1шт.

USE IS A28116 AND IS 8 1/32" LONG.

1шт.

5/8" fin. hex. jam nut (NF)

1шт.

O10739AB

X

BELT - fan and generator

1шт.
