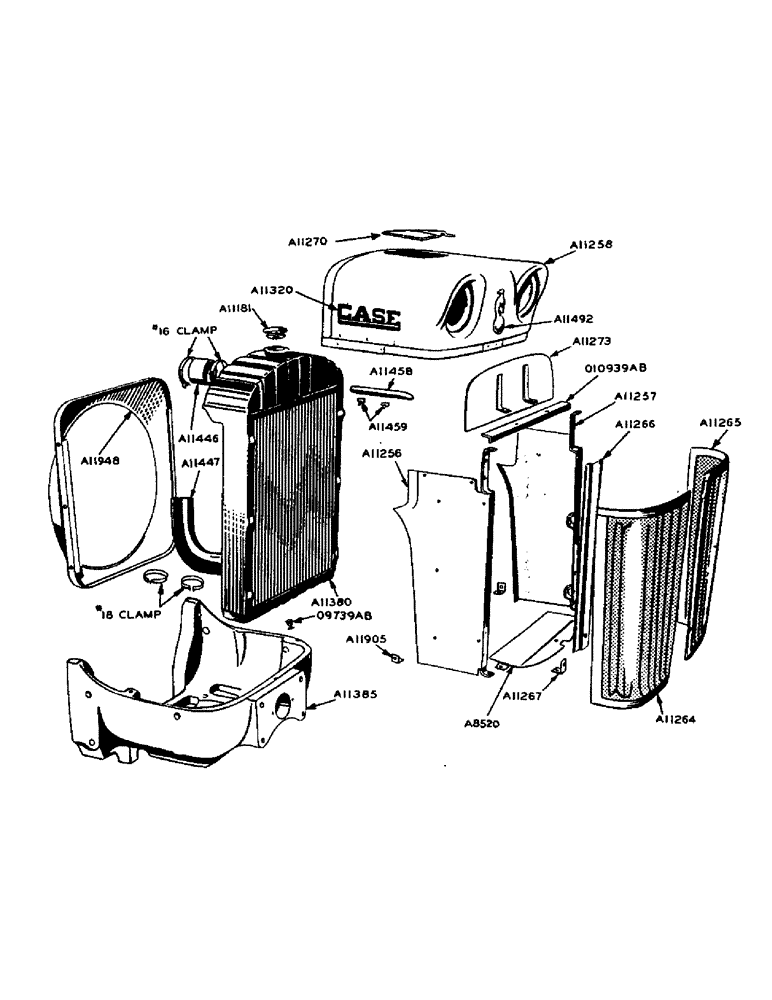

Запчасти Case IH 900 (072) - RADIATOR AND GRILL (02) - ENGINE

A8520

PLATE - lower radiator baffle

1шт.

A10259

CAP

- radiator pressure (serial no. 8141036 and after) see A11181

1шт.

A11049

BRACE - radiator side member top. (serial no. 8141036 and after) (see 010939AB)

1шт.

A11181

RADIATOR CAP

CAP - radiator (4 lb. pressure) (prior to serial no. 8141036) see A10259

1шт.

A11256

MEMBER - radiator side, R.H.

1шт.

5/16" x 5/8" fin. hex. bolt (NF) w/lockwasher

1шт.

5/16" x 1-1/2" fin. hex. bolt (NF) w/lockwasher

2шт.

3/8" x 7/8" fin. hex. bolt (NC) w/lockwasher

2шт.

1/4" - 20 Tinnerman speed grip nut #C7998-1420 #27 finish

2шт.

A11257

MEMBER - radiator side, L.H.

1шт.

5/16" x 5/8" fin. hex. bolt (NF) w/lockwasher

1шт.

5/16" x 1-1/2" fin. hex. bolt (NF) w/lockwasher

2шт.

3/8" x 7/8" fin. hex. bolt (NC) w/lockwasher

2шт.

1/4" - 20 Tinnerman speed grip nut #C7998-1420 #27 finish

2шт.

A11258

CAP - radiator grille (prior to serial. no. 8141036) see A20450

1шт.

1/4" x 5/8" truss hd. mach. screw (NC) zinc plated

4шт.

1/4" x 20" Tinnerman speed grip nut #C7998-1420 3B finish

4шт.

A11264

GRILLE - R.H.

1шт.

1/4" x 1/2" truss hd. mach. screw N.C.

4шт.

A11265

GRILLE - L.H.

1шт.

1/4" x 1/2" truss hd. mach. screw (NC)

4шт.

A11266

CENTER PIECE - grille

1шт.

1/4" fin. hex. nut (NC)

1шт.

1/4" x 20" Tinnerman speed grip nut #C7998-1420 #27 finish

4шт.

1/4" x 5/8" truss hd. mach. screw w/lockwasher

3шт.

A11267

BRACE - center piece lower

1шт.

3/8" x 3/4" fin. hex. bolt (NC) w/lockwasher

1шт.

A11270

DOOR

- grille cap (prior to serial no. 8141036)

1шт.

A11273

PLATE - radiator upper baffle

1шт.

1/4" x 1/2" rhd. mach. screw (NF) int.-ext. lockwasher

2шт.

1/4" x 3/4" rhd. mach. screw (NC) with hex. nut and int.-ext. lockwasher

2шт.

A11319

X

CLIP - 3/16" dia. push on type (4 used on "CASE" name plate, 2 used on medallion)

6шт.

A11320

PLATE

- name, CASE

2шт.

A11380

RADIATOR - short filler neck (prior to serial no. 8141036) see A20441

1шт.

A11385

BRACKET - use A20360

1шт.

3/4" x 2" hex. bolt (NC) w/lockwasher

4шт.

A11446

RADIATOR HOSE,2.50" ID x 2.13", SAE 20R2

Inlet 2.50" ID x 2.13", SAE 20R2

1шт.

#18 hose clamp

2шт.

A11447

X

HOSE - radiator to water pump (2-1/4" I.D. x 2-5/8" O.D.)

1шт.

#16 hose clamp

2шт.

A11458

MOLDING - radiator grille cap trim

2шт.

A11459

BOLT

- trim molding retainer

4шт.

#10-32 mach. screw nut

4шт.

#10-SAE std. lockwasher

4шт.

A11492

X

MEDALLION - grille cap

1шт.

A11737

WASHER - radiator side member

2шт.

A11905

CLIP - radiator side member rear support

2шт.

3/8" x 1/2" fin. hex. bolt, N.F.

2шт.

A11948

SHROUD - radiator

1шт.

A20279

COVER - radiator bracket, front

1шт.

3/8" x 1-3/8" fin. hex. bolt NC w/lockwasher

2шт.

A20360

BRACKET - front axle and radiator

1шт.

3/4" x 2" hex. bolt NC w/lockwasher

4шт.

A20441

RADIATOR - long filler neck (serial no. 8141036 and after)

1шт.

A20450

CAP - radiator grille (without door) serial no. 8141036 and after

1шт.

O9739AB

X

VALVE - radiator drain

1шт.

O10939AB

BRACE - radiator side member top (prior to serial no. 8141036)

1шт.
