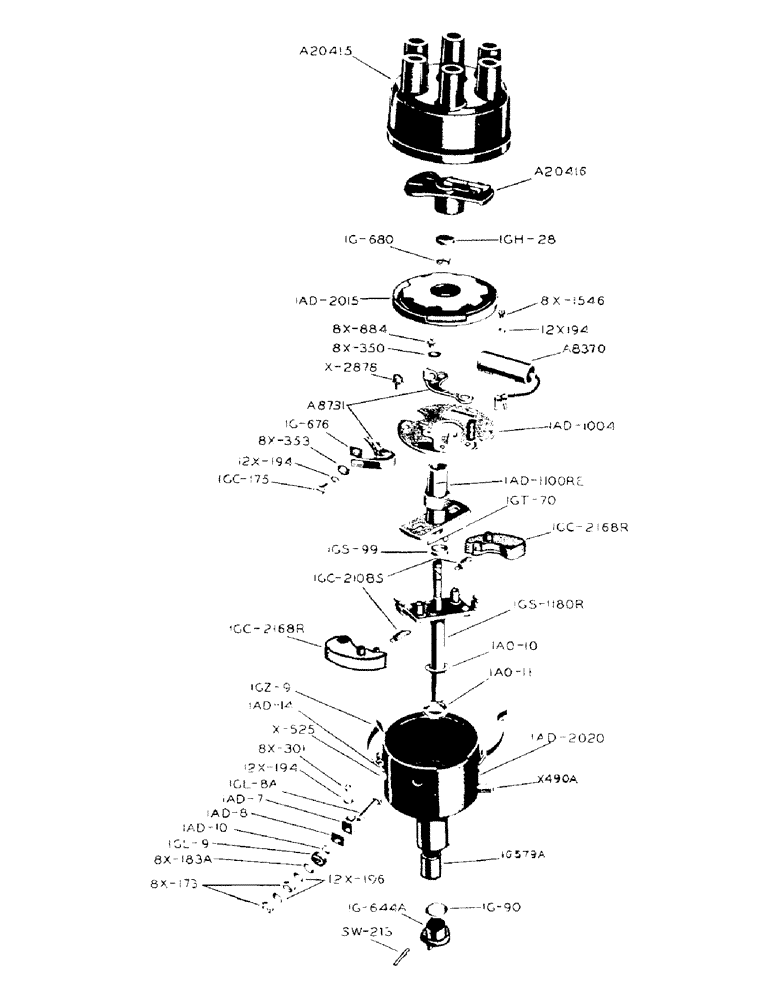

Запчасти Case IH 900 (048) - L.P. GAS ENGINE, PARTS FOR A20264 AUTO-LITE DISTRIBUTOR (02) - ENGINE

A8370

PACKAGE

CONDENSER (Auto-Lite n. IBB-2042SS-1)

1шт.

All parts numbers listed except for A8370, A8371, A2415, and A20416 must be obtained from an Auto-Lite service station.

1шт.

A8371

X

CONTACT SET - breaker points (Auto-Lite no. IGW-3028DS)

1шт.

All parts numbers listed except for A8370, A8371, A2415, and A20416 must be obtained from an Auto-Lite service station.

1шт.

A20415

CAP

ASSEMBLY (Auto-Lite no. IGC-1107S)

1шт.

All parts numbers listed except for A8370, A8371, A2415, and A20416 must be obtained from an Auto-Lite service station.

1шт.

A20416

ROTOR

(Auto-Lite no. GIS-1016B)

1шт.

All parts numbers listed except for A8370, A8371, A2415, and A20416 must be obtained from an Auto-Lite service station.

1шт.

IAD-7

CONNECTOR - terminal stud

1шт.

AID-8

INSULATION - terminal stud inner

1шт.

IAD-9

BRACKET - breaker plate mounting

2шт.

IAD-10

BUSHING - terminal stud insulation

1шт.

IAD-14

BRACKET - cap spring

2шт.

IAD-1004

PLATE - breaker (use IAD2004)

1шт.

IAD-1100RE

PLATE - cam and stop

1шт.

IAD-2004

PLATE - breaker, assembly

1шт.

IAD-2015

DUST SEAL - breaker plate

1шт.

IAD-2020

BASE - assembly distributor

1шт.

IAO-10

WASHER - thrust, inner drive shaft, upper

1шт.

IAO-11

WASHER - thrust, outer drive shaft, upper

1шт.

IG-90

WASHER - thrust, drive shaft, lower

1шт.

IG-94

TERMINAL - high tension wire

7шт.

IG-514

PLUNGER - distributor cap contact

1шт.

IG-515

SPRING - distributor cap contact plunger

1шт.

IG-579A

BEARING - drive shaft

2шт.

IG-644A

COUPLING - drive

1шт.

IG-676

CLIP - spring, contact arm

1шт.

IG-680

SNAP RING - cam retaining

1шт.

IGC-175

SCREW - spring clamp (#6-32 x 5/16" hex. hd.)

1шт.

IGC-210BS

SPRING - set of two governor weights

1шт.

IGC-2168R

WEIGHT - governor

2шт.

IGH-28

WICK - cam sleeve felt

1шт.

IGL-8A

STUD - primary terminal

1шт.

IGL-9

WASHER - primary terminal stud insulator

1шт.

IGS-32

PLUG - vent hole rubber

1шт.

IGS-99

SPACER - cam

1шт.

IGS-117

WICK - felt

1шт.

IGS-1180R

SHAFT - drive

1шт.

IGT-70

SPRING - anti-rattle

1шт.

IGZ-9

SPRING - cap clamp

2шт.

SW-213

RIVET - coupling

1шт.

X-490A

OILER - driveshaft bearing

1шт.

X-525

RIVET - tubular, clamp spring bracket

4шт.

X2878

SCREW - breaker plate mounting (#10-32 x 5/16" fill. hd.)

2шт.

8X173

NUT - terminal stud (#10-32 hex.)

2шт.

8X183A

WASHER - (#10) plain, terminal stud

1шт.

8X301

SCREW - connector (#6-32 x 3/16" rhd.)

1шт.

8X350

WASHER - (#8) plain, contact lock screw

1шт.

8X353

WASHER - (#6) plain, clamp screw

1шт.

8X884

LOCK SCREW - breaker contact (#8-32 x 3/16" fill. hd.)

1шт.

8X1546

SCREW - condenser mounting (#6-32 x 5/32" fill hd.)

1шт.

12X194

LOCKWASHER - #6, for IGC-175, 8X301 and 8X546

3шт.

12X196

LOCKWASHER - (#10) terminal stud

2шт.
