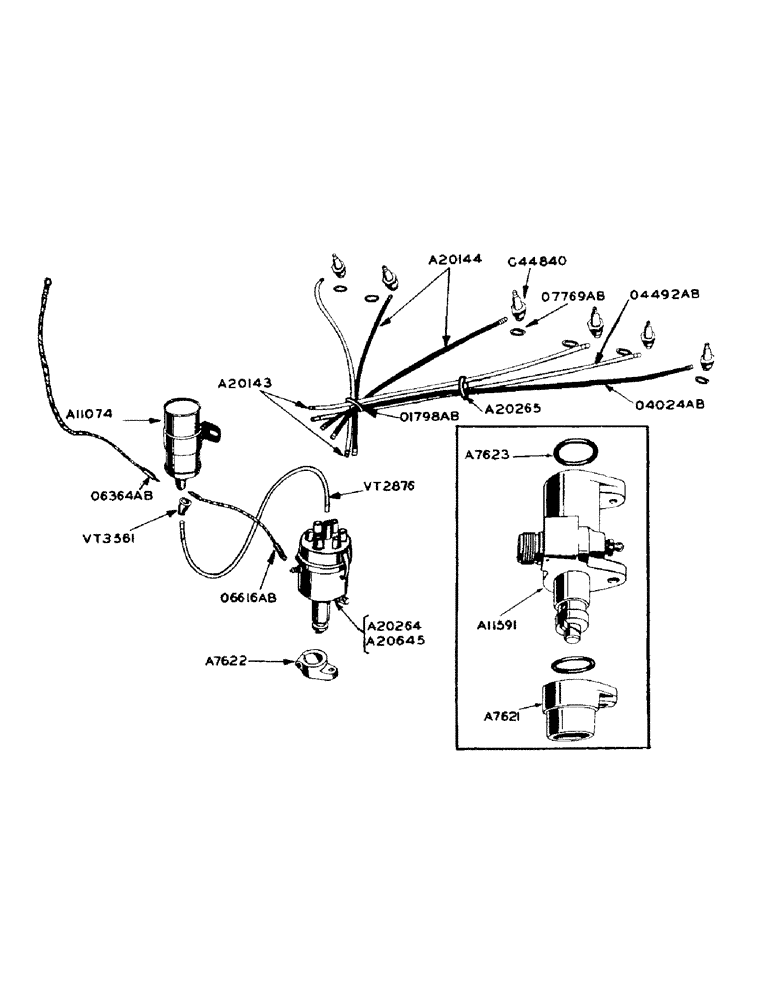

Запчасти Case IH 900 (046) - L.P. GAS ENGINE, DISTRIBUTOR IGNITION AND TACHOMETER DRIVE (02) - ENGINE

A7622

CLAMP - distributor mounting

1шт.

5/16" x 1" N.C. fin. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/4" N.C. fin. hex. bolt w/lockwasher

1шт.

A7625

COVER - magneto bracket opening

1шт.

3/8" x 1-1/4" N.C. fin. hex. bolt w/lockwasher

3шт.

A11074

COIL

- ignition (12 volt) Auto-Lite no. CAG4002A

1шт.

5/16" x 5/8" rhd. mach. screw w/int.-ext. shakeproof lockwashers

2шт.

A20143

ELECTRICAL WIRE

WIRE - spark plug, #3 and #6 cylinders (15")

2шт.

A20144

ELECTRICAL WIRE

WIRE - spark plug, #4 and #5 cylinders (11")

2шт.

A20264

DISTRIBUTOR - 6 cylinder (Auto-Lite #IAD-6010-1) can use A20645

1шт.

A20265

RING - spark plug wire (3 wire)

1шт.

A20645

X

DISTRIBUTOR - 6 cylinder (Wico. no. X30170 - model DB6)

1шт.

G44840

SPARK PLUG

PLUG - spark (18MM) Champion #8 commercial

6шт.

O1798AB

RING - spark plug wire (6 wires)

1шт.

O4024AB

X

WIRE - spark plug, #1 cylinder (25-1/2")

1шт.

O4492AB

X

WIRE - spark plug, #2 cylinder (21-1/2")

1шт.

O63436AB

WIRE - coil to ignition switch

1шт.

O6616AB

WIRE - coil to distributor (ignition)

1шт.

O7769AB

X

GASKET - spark plug

6шт.

VT2876

X

WIRE - center coil terminal to center distributor cap terminal

1шт.

VT3561

X

NIPPLE - distributor to coil and spark plug wires

8шт.

A7621

INSERT - distributor support, tachometer drive

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher, tachometer drive

1шт.

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

HOUSING - flex. tachometer drive w/cable

2шт.

A11093

HOUSING, flex. tachometer drive w/cable

1шт.

A11591

DRIVE - tachometer

1шт.

A20364

CABLE - inner drive for A11093 housing, tachometer

1шт.
