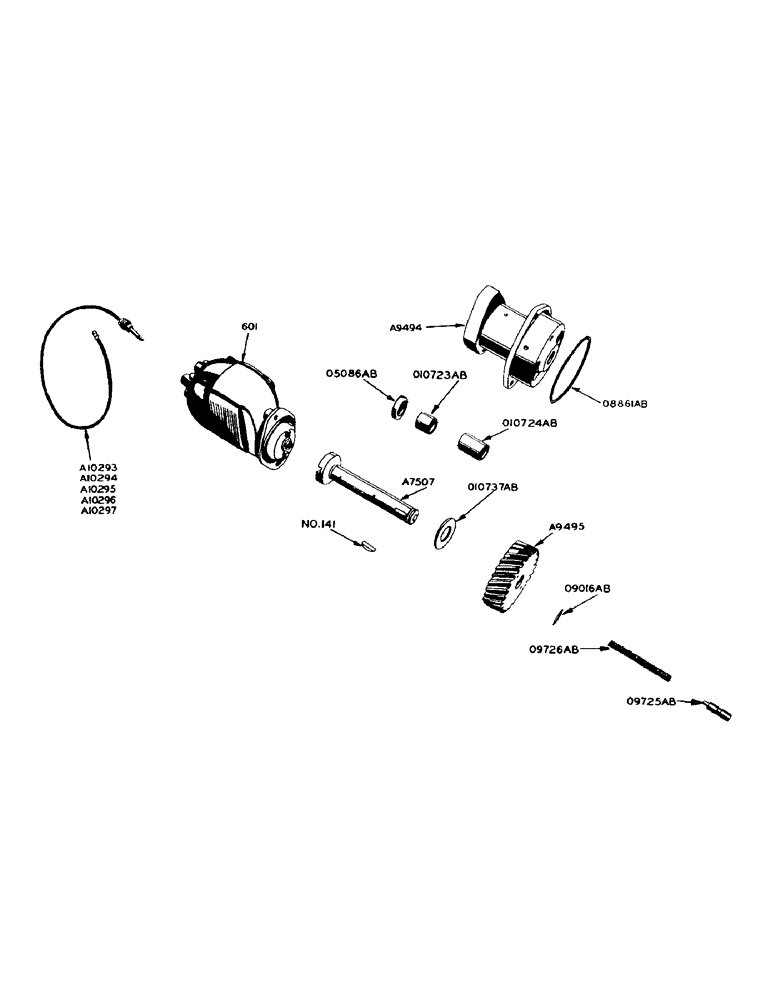

Запчасти Case IH 900 (045) - L.P. GAS ENGINE, MAGNETO (02) - ENGINE

601

ENGINE OVERHAUL KIT

"CASE" MAGNETO

1шт.

A7507

SHAFT - magneto drive, with coupling

1шт.

#141 Woodruff key

1шт.

A7922

CLIP

- magneto wire (on cylinder block)

1шт.

3/8" x 1/2" N.C. hex. bolt w/lockwasher

1шт.

A9493

BRACKET (use A9494)

1шт.

A9494

BRACKET - magneto drive with 010723AB and 010724AB bushings

1шт.

3/8" x 1-5/8" N.C. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

3/8" x 2-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

3/8" plain washer

2шт.

A9495

GEAR - magneto drive

1шт.

A9507

SPARE PART

CLAMP - spark plug wire

2шт.

5/16" x 1-1/4" N.C. rd. hd. mach. screw w/lockwasher

2шт.

A10293

WIRE - spark plug, #1 cylinder (includes terminals, ready to, Serial Range: attach-magneto)

1шт.

A10294

WIRE - spark plug, #2 cylinder (includes terminals, ready to, Serial Range: attach-magneto)

1шт.

A10295

WIRE - spark plug, #3 and 4 cylinder (includes terminals ready to, Serial Range: attach-magneto)

2шт.

A10296

WIRE - spark plug, #5 cylinder (includes terminals ready to, Serial Range: attach-magneto)

1шт.

A10297

WIRE - spark plug, #6 cylinder (includes terminals ready to, Serial Range: attach-magneto)

1шт.

O6019A

HANDLE - spark plug wrench

1шт.

O1798AB

RING - ignition cable

1шт.

O5086AB

X

OIL SEAL - magneto drive shaft

1шт.

O7421AB

WRENCH - spark plug

1шт.

O8861AB

X

"O" RING - magneto drive bracket

1шт.

O9016AB

X

SNAP RING - magneto drive shaft

1шт.

O9725AB

X

PLUNGER - thrust, magneto drive shaft

1шт.

O9726AB

X

SPRING - magneto drive shaft thrust plunger

1шт.

O10723AB

BUSHING - magneto bracket, short

1шт.

O10724AB

BUSHING - magneto bracket, long

1шт.

O10737AB

WASHER - thrust, magneto drive gear

1шт.

G44840

SPARK PLUG

PLUG - spark, 18 MM

6шт.
