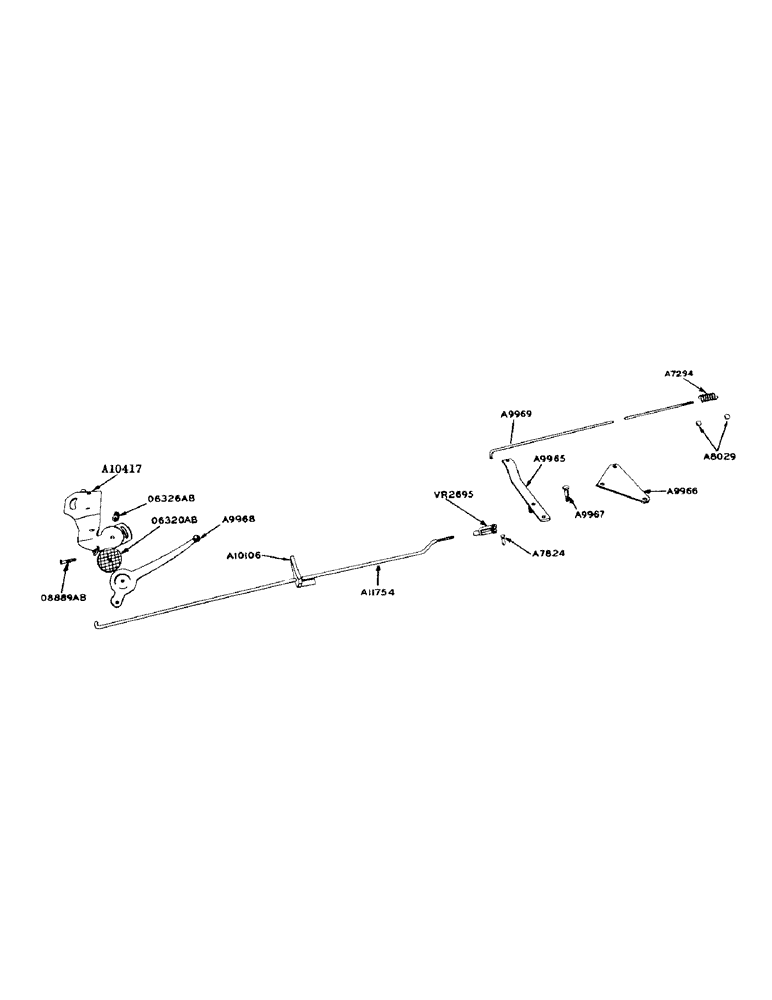

Запчасти Case IH 900 (044) - L.P. GAS ENGINE, THROTTLE CONTROL (02) - ENGINE

A7824

X

PIN - rear throttle rod yoke end

1шт.

3/32" x 5/8" cotter pin

1шт.

A8029

COLLAR - front throttle rod stop

2шт.

1/4" x 3/8" (NC) sq. hd. cup pt. set screw

2шт.

A10417

BRACKET - seat channel mounting with spark and throttle lever support and PTO clutch lever mounting pin

1шт.

A9965

LEVER - fulcrum

1шт.

A9966

SUPPORT - fulcrum lever

1шт.

1/2" x 2-1/2" (NC) hex. hd. bolt

2шт.

A9967

STUD - fulcrum lever

1шт.

A9968

LEVER - throttle control

1шт.

A9969

ROD - front throttle control

1шт.

3/32" x 5/8" cotter pin

1шт.

A10106

SUPPORT - belt pulley clutch rod and throttle rod

1шт.

1/2" x 1-3/4" (NC) hex. hd. bolt w/lockwasher

1шт.

A10469

BRACKET - throttle rod support

1шт.

1/2" x 1" (NF) hex. hd. bolt w/lockwasher

1шт.

A11754

ROD - throttle control rear

1шт.

5/16" fin. hex. nut (NF)

1шт.

3/32" x 5/8" cotter pin

1шт.

O6320AB

X

DISC - hand lever friction

1шт.

O6326AB

X

SPRING - throttle hand lever

1шт.

O8889AB

SCREW - idle adjustment

1шт.

V13383

SPACER - fulcrum lever support

1шт.

VR2695

X

END - throttle rod rear yoke

1шт.
