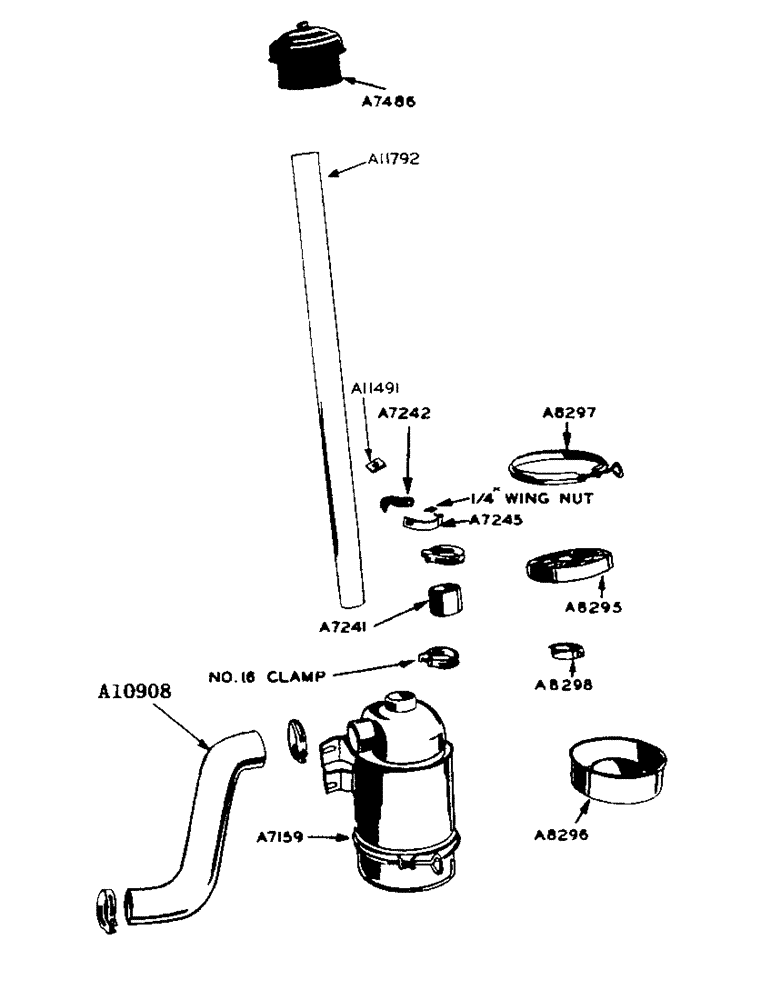

Запчасти Case IH 900 (041) - L.P. GAS ENGINE, AIR CLEANER (02) - ENGINE

A7159

SPARE PART

CLEANER - air

1шт.

3/8" x 1-1/4" fin. hex. bolt (N.C.) and #4020-16 shakeproof lockwasher

4шт.

A7241

HOSE - air cleaner to air cleaner pipe

1шт.

#16 hose clamp

2шт.

A7242

SUPPORT - air intake pipe

1шт.

5/16" x 7/8" (NC) carr. bolt w/hex. nut

1шт.

5/16" #4018-24 shakeproof int.-ext. lockwasher

1шт.

A7245

STRAP - air intake pipe and "T" bolt

1шт.

1/4" (NC) wing nut (zinc plated)

1шт.

A7486

X

PRE-SCREENER - air intake

1шт.

A10908

INTAKE AIR HOSE,2.25" ID x 7.84"

- Carburetor to air cleaner 2.25" ID x 7.84"

1шт.

#16 hose clamp

2шт.

A11491

SPACER - air intake pipe support

1шт.

A11792

PIPE - air cleaner

1шт.

O5893HT

X

SPACER - air cleaner bracket to motor block

4шт.

A8295

SCREEN, parts for A7159 air cleaner

1шт.

A8296

CUP - oil, parts for A7159 air cleaner

1шт.

A8297

CLAMP

- oil cup retaining, parts for A7159 air cleaner

1шт.

A8298

CLAMP - screen retaining, parts for A7159 air cleaner

1шт.
