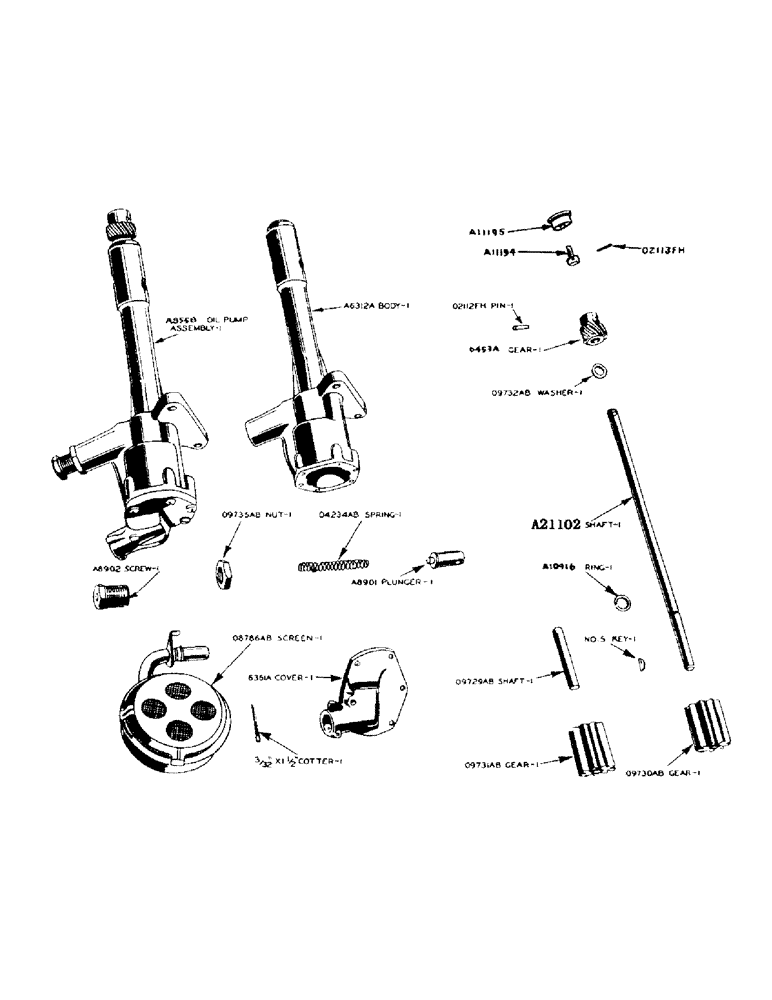

Запчасти Case IH 900 (038) - L.P. GAS ENGINE, OIL PUMP AND TACHOMETER DRIVE (02) - ENGINE

A8558

PUMP, ENGINE OIL

PUMP - oil, less screen

1шт.

A8901

X

PLUNGER - oil pump relief

1шт.

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - oil pump relief adjusting

1шт.

A10916

RING, SNAP

SNAP RING - oil pump drive shaft

1шт.

A6312A

BODY - oil pump

1шт.

3/8" x 1-1/4" N.C. hex. hd. cap screw w/lockwashers

2шт.

6361A

COVER - oil pump body

1шт.

1/4" x 3/4" N.C. rd. hd. mach. screw w/lockwasher

5шт.

1/4" x 1-1/2" N.C. rd. hd. mach. screw w/lockwasher

1шт.

6453A

X

GEAR - oil pump drive

1шт.

O4234AB

X

SPRING - oil pump relief plunger

1шт.

O8786AB

X

SCREEN - oil pump, float-o-type

1шт.

3/32" x 1-1/2" cotter pin

1шт.

A21102

SHAFT

- oil pump drive

1шт.

O9729AB

SHAFT - oil pump stub

1шт.

O9730AB

X

GEAR - oil pump, with keyway

1шт.

No. 5 Woodruff key

1шт.

O9731AB

X

GEAR - oil pump, without keyway

1шт.

O9732AB

X

WASHER - oil pump drive gear thrust

1шт.

O9735AB

NUT - oil pump relief adjusting screw

1шт.

O2112FH

X

ROLL PIN - (3/16" x 7/8") - oil pump drive gear

1шт.

A11097

X

CONTROL - tachometer drive flexible

1шт.

A11194

X

ADAPTER - tachometer drive

1шт.

A11195

PLUG

- tachometer drive adapter

1шт.

O2113FH

X

ROLL PIN (3/32" x 7/8") used on A11194, tachometer drive

1шт.
