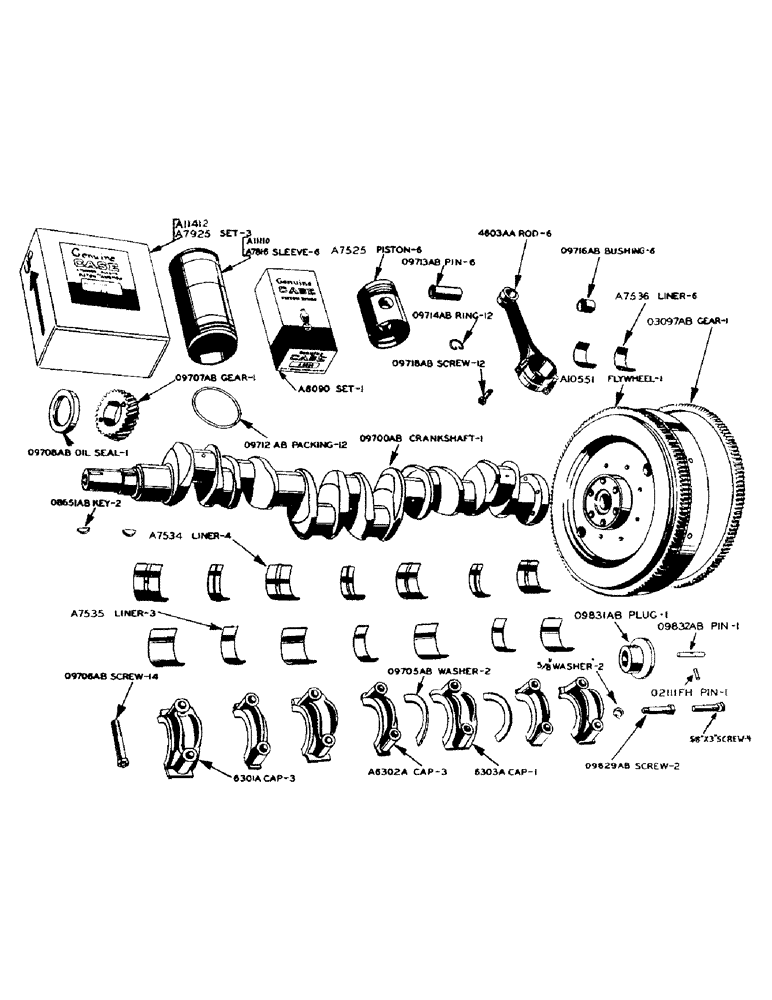

Запчасти Case IH 900 (034) - L.P. GAS ENGINE, PISTONS, CONNECTING RODS AND CRANKSHAFT (02) - ENGINE

A7207

SLEEVE CYLINDER

LINER - connecting rod bearing, top and bottom half (.002 undersize)

6шт.

A7209

X

LINER - connecting rod bearing, top and bottom half (.010 undersize)

6шт.

A7211

X

LINER - connecting rod bearing, top and bottom half (.020 undersize)

6шт.

A7213

SLEEVE CYLINDER

LINER - connecting rod bearing, top and bottom half (.030 undersize)

6шт.

A7525

PISTON

6шт.

A7526

OIL SEAL

RING - piston, top

6шт.

A7527

OIL SEAL

RING - piston, second and third

12шт.

A7528

RING - piston, oil

6шт.

A7536

X

LINERS - connecting rod bearing, top and bottom half (standard size)

6шт.

A7816

X

SLEEVE - cylinder (prior to serial #8108408) see A11110, see page 29 for additional serial numbers

6шт.

A7925

SET OF 2 - cylinder sleeves, piston with rings, piston pins and retainer rings. prior to serial #8108048) see page 29 for additional serial numbers

3шт.

A11412

SET OF 2 - cylinder sleeves, pistons with rings, piston pins and retainers. (serial #8108408 and after) see page 29 for additional serial numbers

3шт.

A8090

RING

RINS - set of (24) Perfect Circle 2 in 1 chrome piston

1шт.

A11110

X

SLEEVE - cylinder (serial #8108408 and after) see A7816, see page 29 for additional serial numbers

6шт.

O9712AB

X

PACKING - cylinder sleeve

12шт.

O9713AB

PIN - piston

6шт.

O9714AB

X

RING - piston pin retainer

12шт.

O9716AB

BUSHING - connecting rod

6шт.

O9718AB

X

SCREW - connecting rod cap

12шт.

4603AA

X

ROD - connecting, w/cap, capscrew and piston pin bushing

6шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) see 09705AB

2шт.

A7216

SLEEVE CYLINDER

LINERS - crankshaft bearing (wide - upper and lower) (.002" undersize)

4шт.

A7219

X

LINERS - crankshaft bearing (narrow - upper and lower) (.002" undersize)

3шт.

A7222

X

LINERS - crankshaft bearing (wide - upper and lower) (.010" undersize)

4шт.

A7225

LINERS - crankshaft bearing (narrow - upper and lower) (.010" undersize)

3шт.

A7228

LINERS - crankshaft bearing (wide - upper and lower) (.020" undersize)

4шт.

A7231

LINERS - crankshaft bearing (narrow - upper and lower) (.020" undersize)

3шт.

A7234

LINERS - crankshaft bearing (wide - upper and lower) (.030" undersize)

4шт.

A7237

LINERS - crankshaft bearing (narrow - upper and lower) (.030" undersize)

3шт.

A7534

X

LINERS - crankshaft bearing (wide - upper and lower) standard size

4шт.

A7535

LINERS - crankshaft bearing (narrow - upper and lower) standard size

3шт.

A9871

FLYWHEEL - (use A10551), crankshaft

1шт.

A10551

FLYWHEEL W/RING GEAR, crankshaft

1шт.

6301A

CAP - crankshaft bearing, wide

3шт.

A6302A

X

CAP - crankshaft bearing, narrow

3шт.

6303A

CAP - crankshaft thrust bearing

1шт.

O3097AB

X

GEAR - flywheel ring (139T), crankshaft

1шт.

O8651AB

X

KEY - for crankshaft gear and lower drive pulley

2шт.

O9700AB

CRANKSHAFT

1шт.

5/8" X 3" fin. hex. bolt NF w/lockwasher, crankshaft

4шт.

O9705AB

X

WASHER - crankshaft thrust (standard size) see A7204

2шт.

O9706AB

SCREW - crankshaft bearing cap

14шт.

O9707AB

X

GEAR - crankshaft

1шт.

O9708AB

X

OIL SEAL - crankshaft, front

1шт.

O9829AB

SCREW - flywheel dowel, crankshaft

2шт.

5/8" std. lockwasher, crankshaft

2шт.

O9831AB

X

PLUG - flywheel oil control, crankshaft

1шт.

O9832AB

PIN - wiggle, flywheel oil control, crankshaft

1шт.

O2111FH

X

ROLL PIN - for 09832AB wiggle pin, crankshaft

1шт.
