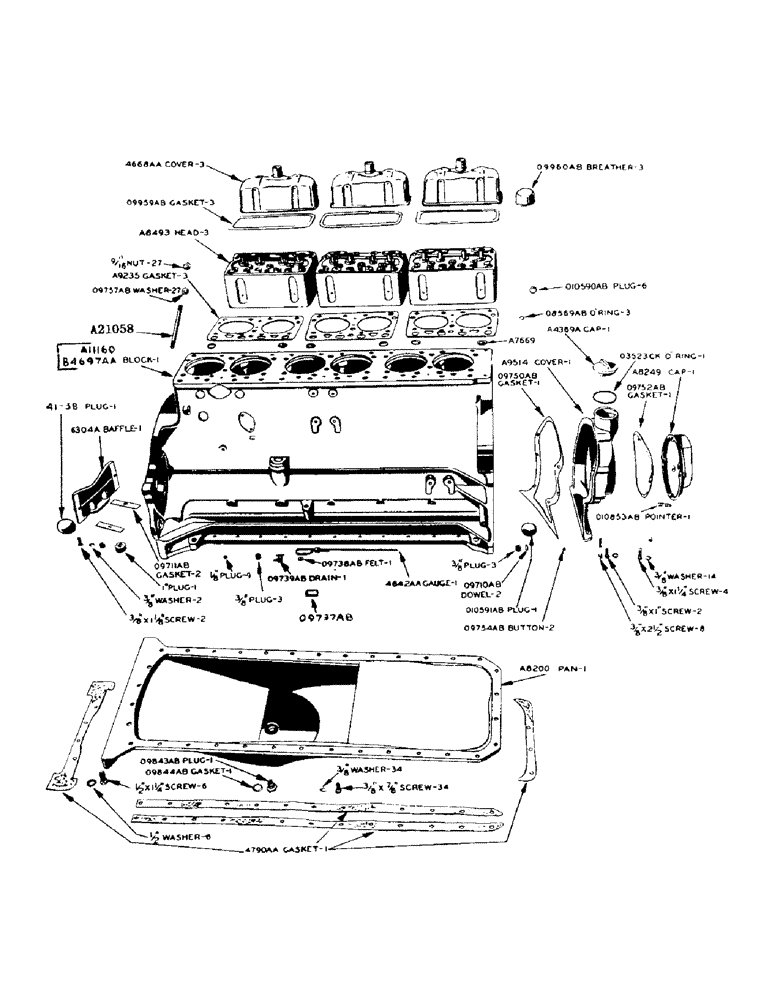

Запчасти Case IH 900 (032) - L.P. GAS ENGINE, CYLINDER HEAD, CYLINDER BLOCK AND OIL PAN (02) - ENGINE

A7669

RING

RUBBER RING - used with A9235 gasket

6шт.

A8493

HEAD CYLINDER - with valve guides and valve inserts

3шт.

A8500

HEAD - cylinder use A8493

1шт.

A9235

CYLINDER HEAD GASKET

- cylinder head

3шт.

4668AA

COVER - cylinder head

3шт.

O8569AB

X

"O" RING - in cylinder head gasket for oil passage

3шт.

A21058

BOLT

- cylinder head

27шт.

9/16" (NF) light hex. nut

27шт.

O9757AB

X

WASHER - cylinder head stud

27шт.

O9959AB

X

GASKET - cylinder head cover

3шт.

O9960AB

X

BREATHER - cylinder head cover

3шт.

O10590AB

X

WELCH PLUG - cylinder head (1-5/8" stainless steel)

6шт.

41-38

PLUG

WELCH PLUG - 2-3/8" for camshaft hole in cylinder block

1шт.

A7509

PLUG

WELCH PLUG - for cylinder block (1-3/8" stainless steel)

1шт.

A11155

BLOCK - cylinder (use A11160) see B6300A

1шт.

A11160

BLOCK - cylinder, w/bearing caps and cam shaft bushings (serial #8108408 and after) see page 29 for additional serial numbers

1шт.

1/8" slotted hd. pipe plug, cylinder block

4шт.

3/8" socket pipe plug, cylinder block

3шт.

1" socket pipe plug, cylinder block

1шт.

1/4" ctsk. headless set screw, cylinder block

1шт.

A22786

BLOCK - stripped engine (consists of cylinder block, pistons, sleeves, rings, connecting rods, crankshaft and bearings. does not include camshaft, valve lifters, cylinder head, valve mechanism etc.)

1шт.

B6300A

BLOCK CYLINDER - (use B4697AA) see A11155

1шт.

4641AA

CONDUIT - fastens along cylinder block for headlight wire, generator wire and temperature gauge tube

1шт.

5/16" x 1/2" N.C. hex. hd. cap screw w/lockwasher, cylinder block

2шт.

4642AA

X

DIPSTICK - lube oil level, with 09738AB washer, cylinder block

1шт.

B4697AA

BLOCK - cylinder w/bearing caps and camshaft bushings (prior to serial #8108408) see page 29 for additional serial numbers

1шт.

1/8" slotted hd. pipe plug, cylinder block

4шт.

3/8" socket pipe plug, cylinder block

3шт.

1" socket pipe plug, cylinder block

1шт.

1/4" ctsk. headless set screw, cylinder block

1шт.

O9737AB

SOCKET - lub-oil gauge, cylinder block

1шт.

O9738AB

WASHER - felt, lube oil level dip stick, cylinder block

1шт.

O9739AB

X

VALVE - water drain for block, cylinder

1шт.

O10591AB

X

WELCH PLUG - for cylinder block, 1-13/16" (stainless steel)

1шт.

VT3399

WELCH PLUG - 1", cylinder block

1шт.

A8200

PAN - oil

1шт.

3/8" x 7/8" NC hex. hd. capscrew w/lockwasher, oil pan

28шт.

1/2" x 1" NC hex. hd. capscrew w/lockwasher, oil pan

6шт.

6304A

BAFFLE - engine oil pan - rear

1шт.

4790AA

X

GASKET KIT - oil pan

1шт.

O9711AB

X

GASKET - for 6304A baffle, oil pan

1шт.

O9843AB

X

PLUG - drain, oil pan, magnetic

1шт.

O9844AB

X

GASKET - oil pan drain plug

1шт.

A8249

CAP - timing gear cover, with thrust button

1шт.

3/8" x 3/4" (NC) hex. hd. bolt w/lockwasher, timing gear cover

1шт.

3/8" x 1-1/8" (NC) hex. hd. bolt w/lockwasher, timing gear cover

3шт.

A9513

COVER - timing gear (use A9514)

1шт.

A9514

LEVER

COVER - timing gear w/thrust button

1шт.

3/8" X 1" (NC) hex. hd. bolt w/lockwasher, timing gear cover

2шт.

3/8" x 2-1/2" (NC) hex. hd. bolt w/lockwasher, timing gear cover

8шт.

A4369A

CAP - oil filter, timing gear cover

1шт.

6473A

CAP - timing gear cover (use A8249)

1шт.

O9710AB

PIN - dowel - timing gear cover

2шт.

O9750AB

X

GASKET - timing gear cover

1шт.

O9752AB

X

GASKET - timing gear cover cap

1шт.

O9754AB

BUTTON - thrust - timing gear cover

2шт.

O10853AB

POINTER - timing, gear cover

1шт.

1/4" x 1/2" (NC) fin. hex. bolt, timing gear cover

2шт.

1/4" #4014-20 int.-ext. shakeproof lockwasher, timing gear cover

2шт.

O3523CK

X

"O" RING - for A4369A cap, timing gear cover

1шт.
