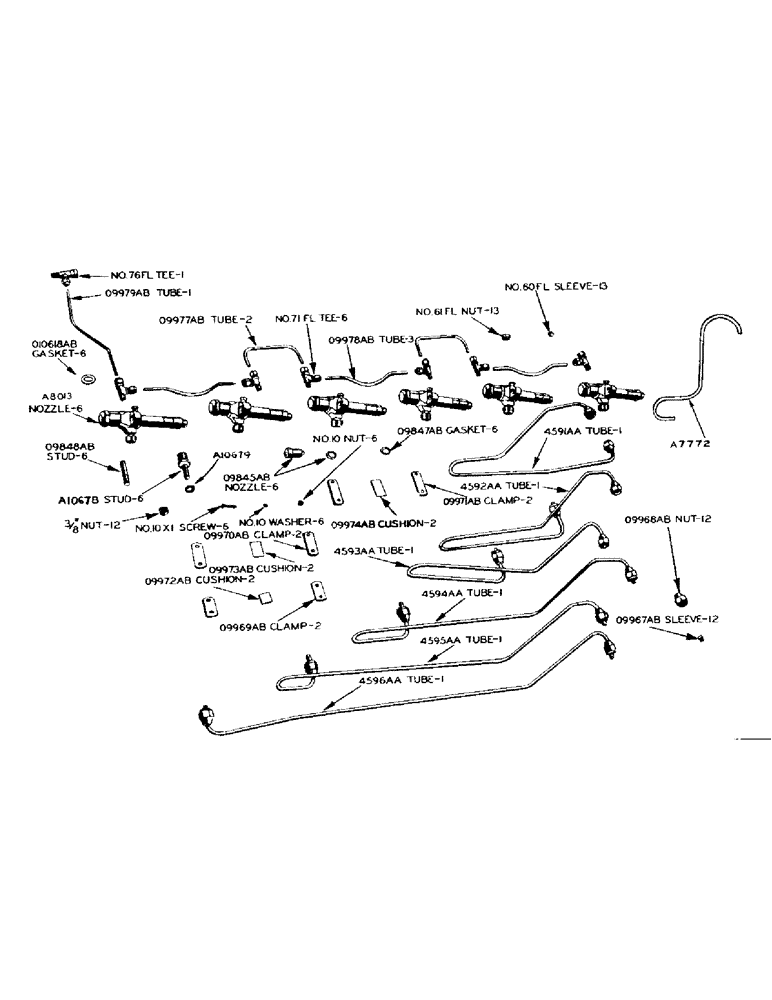

Запчасти Case IH 900 (020) - DIESEL ENGINE, FUEL INJECTOR NOZZLES AND TUBES, PRIOR TO SERIAL NUMBER 8141036 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A7772
TUBE - leak off, fuel pump to injector nozzle
1шт.
1/4" tube w/60FL sleeve and 61FL nut
2шт.
A8013
NOZZLE INJECTION
NOZZLE - injector, with holder and gasket
6шт.
Imperial flex. tee no. 71FL (1/4" tube size x 1/8" P.T. short)
6шт.
A10678
STUD
- nozzle holder, large (7/8" across flats for wrench) see 09849AB
6шт.
A10679
GASKET
- for A10678 nozzle holder stud
6шт.
A20162
TUBE
- injector leak off, upper (straight type)
2шт.
#72 FL Imperial flex tee (1/4" O.D. x 1/8" P.T.)
4шт.
4591AA
TUBE - fuel injector, with sleeves and nuts, for no. 1 cylinder
1шт.
4592AA
TUBE - fuel injector, with sleeves and nuts, for no. 2 cylinder
1шт.
4593AA
TUBE - fuel injector, with sleeves and nuts, for no. 3 cylinder
1шт.
4594AA
TUBE - fuel injector, with sleeves and nuts, for no. 4 cylinder
1шт.
4595AA
TUBE - fuel injector, with sleeves and nuts. for no. 5 cylinder
1шт.
4596AA
TUBE - fuel injector, with sleeves and nuts, for no. 6 cylinder
1шт.
O9845AB
X
NOZZLE INJECTOR - with 09847AB gasket
6шт.
O9847AB
X
GASKET - injector nozzle holder
6шт.
O9848AB
X
STUD - nozzle holder, small
6шт.
3/8" N.F. light hex. nut
6шт.
O9849AB
STUD - nozzle holder, large (3/4" across flats for wrench) see A10678
1шт.
O9967AB
X
SLEEVE - fuel injector tube coupling
12шт.
O9968AB
NUT - fuel injector tube
12шт.
O9969AB
X
CLAMP - fuel injector tube (clamps 3 tubes)
2шт.
No. 10 x 1" N.C. rd. hd. mach. screw w/hex. nut and lockwasher
2шт.
O9970AB
X
CLAMP - fuel injector tube (clamps 5 tubes)
2шт.
No. 10 x 1" N.C. rd. hd. mach. screw w/hex. nut and lockwasher
2шт.
O9971AB
CLAMP - fuel injector tube (clamps 6 tubes)
2шт.
No. 10 x 1" N.C. rd. hd. mach. screw w/hex. nut and lockwasher
2шт.
O9972AB
X
CUSHION - between 09969AB clamp and fuel injector tubes
2шт.
O9973AB
X
CUSHION - between 09970AB clamp and fuel injector tubes
2шт.
O9974AB
CUSHION - between 09971AB clamp and fuel injector tubes
2шт.
O9977AB
TUBE - injector leak-off, upper (1/4" tubing (curved type)
2шт.
O9978AB
X
TUBE - injector leak-off, lower (1/4" tubing)
3шт.
O9979AB
TUBE - injector leak-off, to fuel tank (1/4" tubing)
1шт.
Imperial flex. tee #76FL (1/4" tube size x 1/4" P.T.)
1шт.
O10604AB
X
CONNECTION - fuel pump leak-off check valve
1шт.
O10618AB
X
GASKET - for injector pressure adjusting screw protective cap
6шт.
Выбрано товаров: 36
