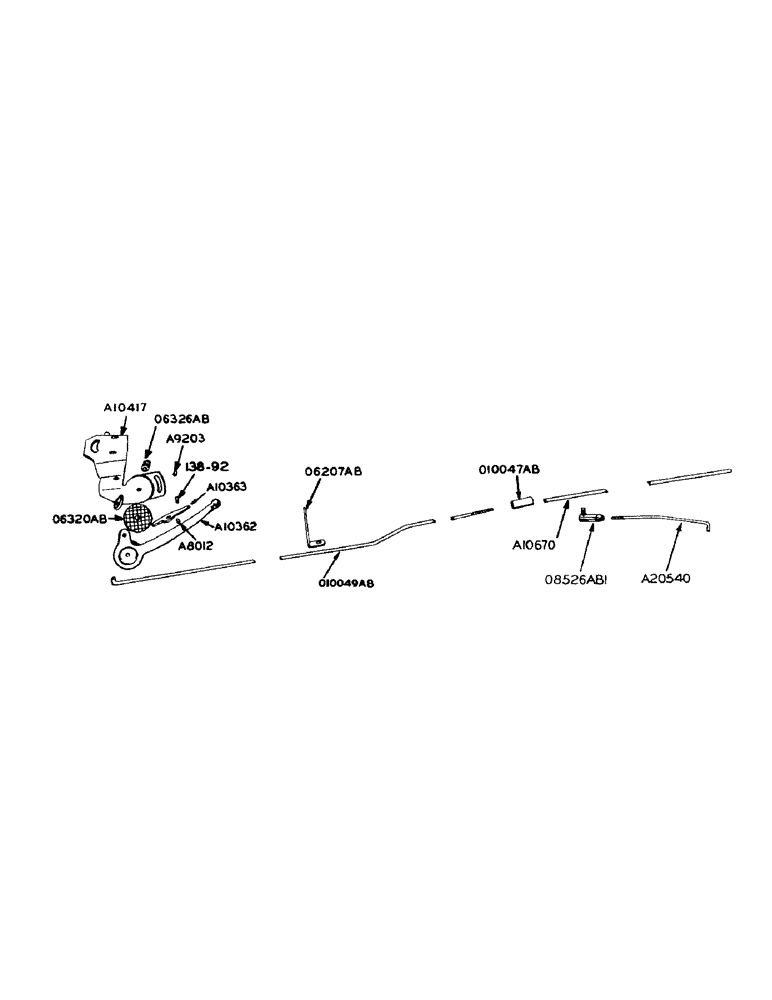

Запчасти Case IH 900 (019) - DIESEL ENGINE, FUEL PUMP THROTTLE CONTROL, SERIAL NUMBER 8141036 AND AFTER (02) - ENGINE

A8012

SPRING

- throttle shut-off lock

1шт.

A9203

STOP - control lever

1шт.

5/16" (NF) hex. jam nut

2шт.

A10362

LEVER - throttle control hand

1шт.

5/16" x 2-1/4" (NF) hex. hd. cap screw

1шт.

5/16" (NF) light hex. nut

2шт.

A10363

LATCH - throttle hand lever stop

1шт.

A10670

ROD - throttle front

1шт.

A10417

BRACKET - seat channel mounting with throttle lever support and PTO clutch lever mounting pin

1шт.

O10049AB

ROD - throttle, rear

1шт.

3/32" x 5/8" cotter pin

1шт.

5/16" (NF) hex. nut

1шт.

A20540

X

ROD - fuel pump throttle

1шт.

3/32" x 1/2" cotter pin

1шт.

#10-32 machine screw nut (NF)

1шт.

O6207AB

SUPPORT - throttle rod

1шт.

1/2" x 1-1/2" (NC) hex. hd. cap screw

2шт.

1/2" x 1-3/4" (NC) hex. hd. cap screw

1шт.

O6320AB

X

DISC - hand lever friction

1шт.

O6326AB

X

SPRING - hand lever

1шт.

O8526AB1

X

BALL JOINT - throttle rod

1шт.

O10047AB

COUPLING - throttle rod

1шт.

1/4" - 28 x 5/16" hex. socket hd. set screw

1шт.

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Throttle lever stop latch 3/16" x 3/4", Slotted

1шт.
