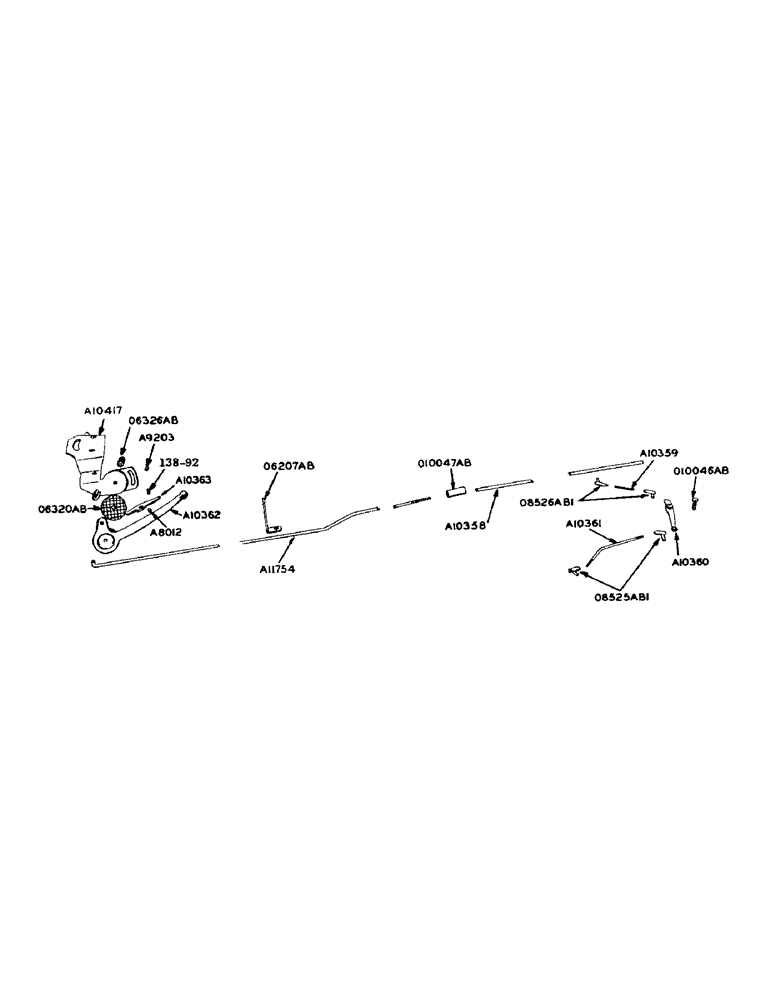

Запчасти Case IH 900 (018) - DIESEL ENGINE, FUEL PUMP THROTTLE CONTROL, PRIOR TO SERIAL NUMBER 8141036 (02) - ENGINE

A8012

SPRING

- throttle shut-off lock

1шт.

A9203

STOP - control lever

1шт.

5/16" (NF) hex. jam nut

2шт.

A10358

ROD - front

1шт.

A10359

LINK - connecting, front, Serial Range: rod-lever

1шт.

A10360

LEVER - throttle control

1шт.

A10361

ROD - fuel, Serial Range: pump-lever

1шт.

1/4" (NF) hex. jam nut

2шт.

A10362

LEVER - throttle control hand

1шт.

5/16" x 2-1/4" (NF) hex. hd. cap screw

1шт.

5/16" (NF) light hex. nut

2шт.

A10363

LATCH - throttle hand lever stop

1шт.

A10417

BRACKET - seat channel mounting with throttle lever support and PTO clutch lever mounting pin

1шт.

A11754

ROD - throttle, rear

1шт.

3/32" x 5/8" cotter pin

1шт.

5/16" (NF) hex. nut

1шт.

O6207AB

SUPPORT - throttle rod

1шт.

1/2" x 1-1/2" (NC) hex. hd. cap screw

2шт.

1/2" x 1-3/4" (NC) hex. hd. cap screw

1шт.

O6320AB

X

DISC - hand lever friction

1шт.

O6326AB

X

SPRING - hand lever

1шт.

O8525AB1

X

BALL JOINT -, Serial Range: pump-lever

2шт.

1/4" (NF) hex. nut w/lockwasher

1шт.

O8526AB1

X

BALL JOINT - front, Serial Range: rod-lever

2шт.

#10-32 mach. screw hex. nut w/lockwasher

2шт.

O10046AB

SCREW - control lever pivot

1шт.

O10047AB

COUPLING - throttle rod

1шт.

1/4" - 28 x 5/16" hex. socket hd. set screw

1шт.

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Throttle lever stop latch 3/16" x 3/4", Slotted

1шт.
