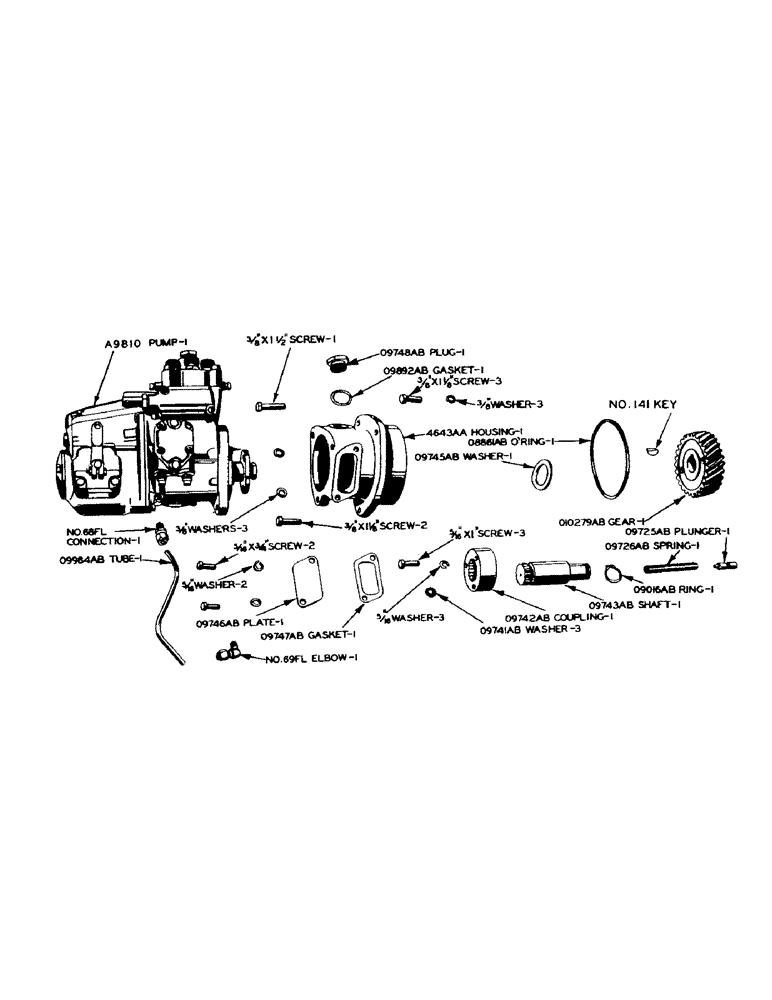

Запчасти Case IH 900 (016) - DIESEL ENGINE, SINGLE PLUNGER FUEL PUMP, PRIOR TO SERIAL NUMBER 8141036 (02) - ENGINE

A9810

PUMP - fuel (American Bosch no. PSB-6A-75D-3802A)

1шт.

3/8" x 1-1/8" N.C. hex. hd. cap screw w/lockwasher (fastens pump, Serial Range: -housing)

2шт.

3/8" x 1-1/2" N.F. hex. hd. cap screw w/nut and lockwasher (fastens, Serial Range: pump-housing)

1шт.

6314A

HOUSING - (use 4643AA)

1шт.

4643AA

HOUSING - with bushings, for fuel pump drive shaft

1шт.

3/8" x 1-1/4" N.C. hex. hd. cap screw w/lockwasher (fastens housing to cylinder block)

3шт.

O8861AB

X

"O" RING - fuel pump drive shaft housing

1шт.

O9016AB

X

SNAP RING - fuel pump drive shaft

1шт.

O9725AB

X

PLUNGER - fuel pump drive shaft

1шт.

O9726AB

X

SPRING - fuel pump drive shaft thrust plunger

1шт.

O9741AB

WASHER - serrated, fuel pump coupling

3шт.

5/16" x 1" N.F. hex. hd. cap screw w/lockwasher

3шт.

O9742AB

COUPLING - fuel pump drive

1шт.

O9743AB

SHAFT AND PINION - fuel pump drive

1шт.

O9745AB

X

WASHER - thrust, fuel pump drive shaft

1шт.

O9746AB

PLATE - fuel pump drive shaft housing

1шт.

5/16" x 3/4" N.C. hex. hd. cap screw w/lockwasher

2шт.

O9747AB

GASKET

- fuel pump drive shaft housing plate

1шт.

O9748AB

PLUG - fuel pump drive shaft housing

1шт.

O9892AB

STUD

GASKET - fuel pump drive shaft housing plug

1шт.

O9984AB

TUBE - fuel pump lube oil (cylinder block to fuel pump) 1/4" tubing w/60FL sleeve and 61FL nut

1шт.

Imperial flex connection no. 68FL (1/4" tube size x 1/8" pipe thrd.) connects tube to fuel pump

1шт.

Imperial flex elbow no. 69FL (1/4" tube size x 1/8" pipe thrd.) connects tube to cylinder block

1шт.

O10279AB

X

GEAR - fuel pump drive

1шт.

No. 141 Woodruff key

1шт.
