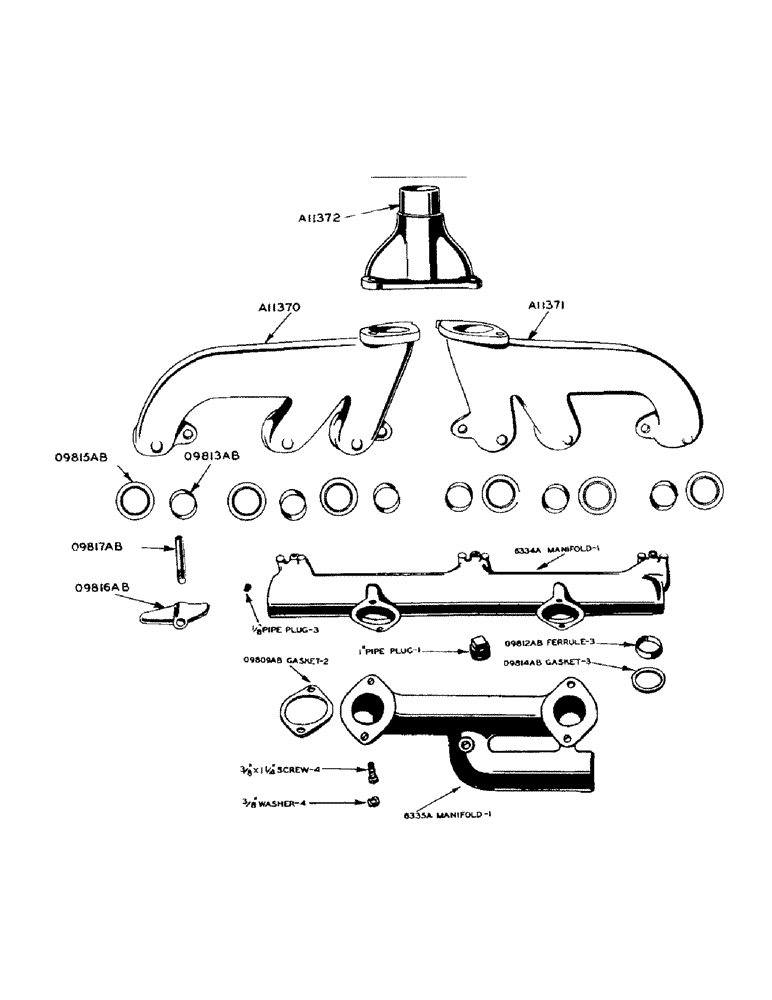

Запчасти Case IH 900 (012) - DIESEL ENGINE, INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

A11370

MANIFOLD - exhaust, front

1шт.

A11371

MANIFOLD - exhaust, rear

1шт.

A11372

ELBOW

- exhaust

1шт.

1/2" x 1-3/4" fin. hex. bolt (NF)

3шт.

1/2" fin, hex. nut (NF)

3шт.

6334A

MANIFOLD - inlet

1шт.

1/8" sq. hd. pipe plug

3шт.

6335A

ELBOW - inlet manifold

1шт.

3/8" x 1-1/4" (NC) hex. hd. capscrew w/lockwasher

4шт.

1" sq. hd. pipe plug

1шт.

O9753AB

CLAMP - exhaust elbow

1шт.

1/2" x 2-1/4" (NF) hex. hd. capscrew w/nut

1шт.

O9809AB

X

GASKET - inlet manifold elbow

2шт.

O9812AB

FERRULE

- inlet manifold

3шт.

O9813AB

X

FERRULE - exhaust manifold

6шт.

O9814AB

X

GASKET - inlet manifold

3шт.

O9815AB

X

GASKET - exhaust manifold

6шт.

O9816AB

CLAMP - inlet and exhaust manifold

6шт.

O9817AB

X

STUD - inlet and exhaust manifold

6шт.

7/16" (NF) hex. light nut

6шт.
