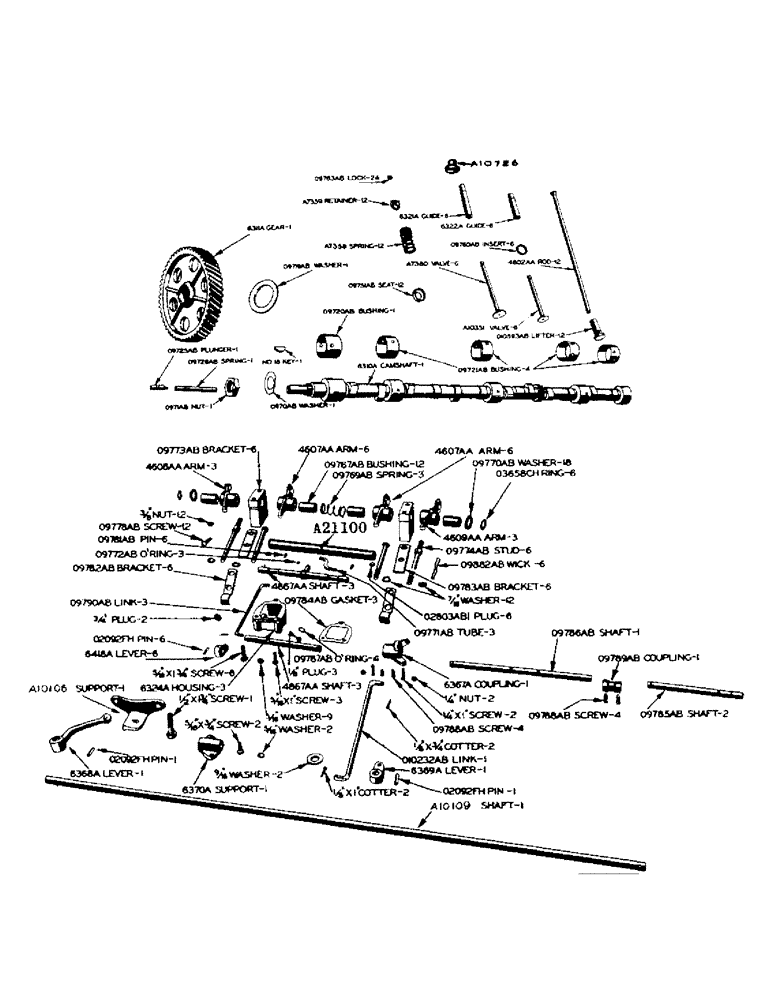

Запчасти Case IH 900 (008) - DIESEL ENGINE, VALVES, PUSHRODS AND CAMSHAFT (02) - ENGINE

A7205

LIFTER - push rod (.010" oversize) see 010593AB

12шт.

A7358

SPRING

inlet and exhaust valve

12шт.

A7359

RETAINER - valve spring

12шт.

A7360

VALVE,ENGINE,INLET,S

nlet

6шт.

A10351

VALVE, ENG EXHAUST,

exhaust (scraper type)

6шт.

A10726

SEAL

SHIELD - (rubber) intake valve

6шт.

6310A

CAMSHAFT

1шт.

6311A

X

GEAR - camshaft

1шт.

#18 Woodruff key

1шт.

6321A

GUIDE - inlet valve

6шт.

6322A

GUIDE - exhaust valve

6шт.

4602AA

ROD

push

12шт.

O970AB

X

LOCKWASHER - camshaft

1шт.

O971AB

X

NUT - camshaft (1-1/8" N.C. hex.)

1шт.

O9719AB

WASHER - camshaft thrust

1шт.

O9720AB

BUSHING - camshaft front

1шт.

O9721AB

BUSHING - camshaft, second, third, fourth and rear

4шт.

O9725AB

X

PLUNGER - camshaft thrust

1шт.

O9726AB

X

SPRING - camshaft thrust plunger

1шт.

O9751AB

X

SEAT - inlet and exhaust valve spring

12шт.

O9760AB

INSERT - exhaust valve seat

6шт.

O9763AB

LOCK - valve spring retainer (2 required per valve)

24шт.

O10593AB

HYDRAULIC LIFT

LIFTER - push rod (standard size) see A7205

12шт.

A21100

SHAFT

- valve rocker arm, and decompressor rocker arm

3шт.

4607AA

X

ARM - inlet valve rocker, with bushing, and decompressor rocker arm

6шт.

4608AA

ARM - exhaust valve rocker, with bushing, for no. 1, 3 and 5 cylinder, and decompressor rocker arm

3шт.

4609AA

ARM - exhaust valve rocker, with bushing, for no. 2, 4 and 6 cylinder, and decompressor rocker arm

3шт.

O2803AB1

PLUG - valve rocker arm shaft, and decompressor rocker arm

6шт.

O9767AB

X

BUSHING - inlet and exhaust rocker arm, and decompressor rocker arm

12шт.

O9769AB

X

SPRING - valve rocker arm shaft, and decompressor rocker arm

3шт.

O9770AB

X

WASHER - valve rocker arm shaft, and decompressor rocker arm

18шт.

O9771AB

X

TUBE - oil, valve rocker arm shaft, and decompressor rocker arm

3шт.

O9772AB

X

"O" RING - valve rocker arm shaft oil tube, and decompressor rocker arm

3шт.

O9773AB

BRACKET - valve rocker arm shaft, and decompressor rocker arm

6шт.

7/16" x 4" N.C. hex. hd. cap screw w/lockwasher, rocker arms and decompressor rocker arm

6шт.

O9774AB

STUD - valve rocker arm shaft bracket, and decompressor rocker arm

6шт.

7/16" N.F. light hex. nut w/lockwasher, rocker arms and decompressor rocker arm

6шт.

O9778AB

X

SCREW - valve push rod adjusting, rocker arms and decompressor rocker arm

12шт.

3/8" N.F. light hex. jam nut, rocker arms and decompressor rocker arm

12шт.

O9882AB

X

WICK - exhaust valve rocker arm, and decompressor rocker arm

6шт.

O3658CH

X

SNAP RING - valve rocker arm shaft, and decompressor rocker arm

6шт.

A10106

SUPPORT - decompressor hand lever shaft

1шт.

1/2" x 1-3/4" N.C. hex. hd. cap screw w/lockwasher, decompressor

1шт.

A10109

SHAFT - decompressor hand lever

1шт.

1/8" x 1" cotter pin, decompressor

2шт.

6324A

HOUSING - decompressor control lever

3шт.

5/16" x 1" N.C. hex. hd. cap screw w/lockwasher, decompressor

3шт.

5/16" x 1-3/4" N.C. hex. hd. cap screw w/lockwasher, decompressor

6шт.

1/8" slotted hd. pipe plug, decompressor

3шт.

3/4" Welch plug, decompressor

2шт.

6367A

COUPLING - stop, decompressor control shaft

1шт.

6368A

LEVER - hand, decompressor control

1шт.

6369A

LEVER - decompressor hand lever shaft

1шт.

6370A

SUPPORT - front, decompressor hand lever shaft

1шт.

6418A

LEVER - decompressor control

6шт.

4867AA

SHAFT - decompressor, with lever and trip pin

3шт.

O9781AB

PIN - decompressor trip

6шт.

O9782AB

BRACKET - top, decompressor shaft

6шт.

O9783AB

BRACKET - bottom, decompressor shaft

6шт.

O9784AB

GASKET - decompressor control lever housing

3шт.

O9785AB

SHAFT - decompressor control, short

2шт.

O9786AB

SHAFT - decompressor control, long

1шт.

O9787AB

X

"O" RING - decompressor control shaft

4шт.

O9788AB

X

SCREW - set, decompressor control shaft

4шт.

O9789AB

COUPLING - decompressor control shaft

1шт.

O9790AB

LINK - decompressor control, upper

3шт.

1/16" x 5/8" cotter pin, decompressor

6шт.

O10232AB

LINK - decompressor control lever, lower

1шт.

1/8" x 3/4" cotter pin, decompressor

2шт.

O2092FH

X

ROLL PIN - (3/16" x 1") for 6368A, 6369A and 6418A levers, decompressor

8шт.

A20154

GASKET

KIT, valve grind, includes the following:

1шт.

A7669

RING

rubber, cylinder head gasket, kit

6шт.

A9235

CYLINDER HEAD GASKET

- cylinder head, kit

3шт.

A11421

GASKET

- thermostat housing, kit

1шт.

A11423

SEAL

O-RING, thermostat seal, gasket kit

1шт.

O8569AB

X

O-RING, cylinder head oil passage, gasket kit

3шт.

O9772AB

X

O-RING, valve rocker arm shaft tube, gasket kit

3шт.

O9784AB

GASKET - decompressor lever housing, gasket kit

3шт.

O9804AB1

X

GASKET, water manifold, kit

6шт.

O9809AB

X

GASKET, intake manifold elbow, kit

2шт.

O9814AB

X

GASKET, intake manifold, kit

3шт.

O9815AB

X

GASKET, exhaust manifold, kit

6шт.

O9959AB

X

GASKET, cylinder head cover, kit

3шт.
