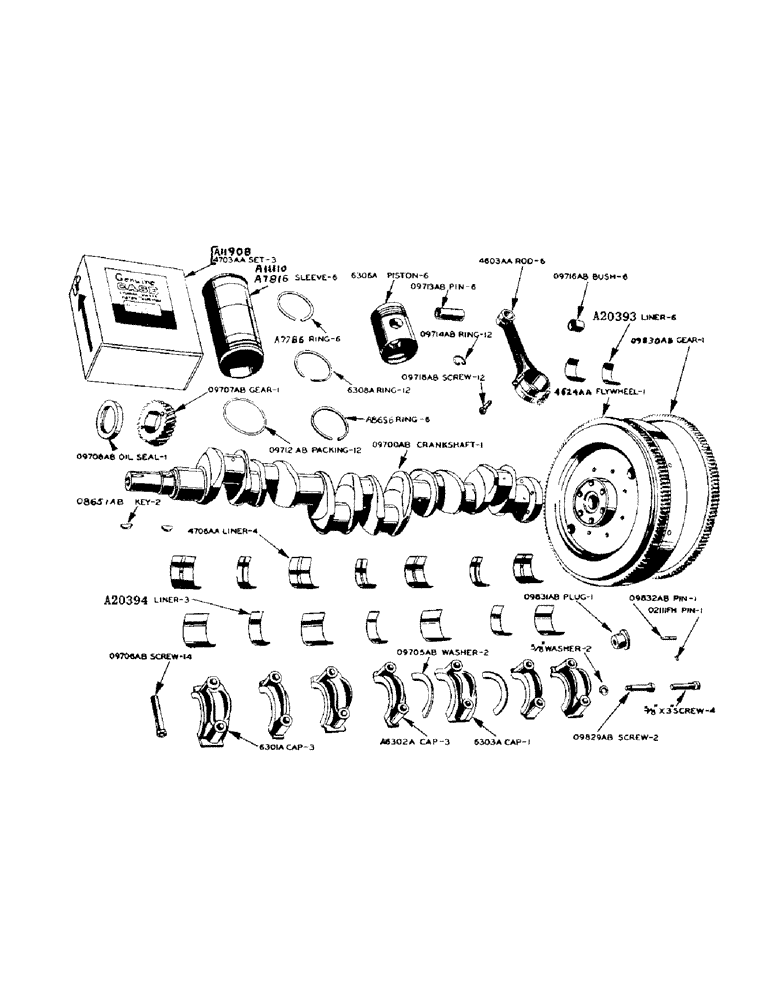

Запчасти Case IH 900 (006) - DIESEL ENGINE, PISTONS, CONNECTING RODS AND CRANKSHAFT, PISTON AND CONNECTING RODS (02) - ENGINE

A7173

X

LINER - connecting rod bearing, top and bottom half (.002 undersize)

6шт.

A7175

X

LINER - connecting rod bearing, top and bottom half (.010 undersize)

6шт.

A7177

SHIELD

LINER - connecting rod bearing, top and bottom half (.020 undersize)

6шт.

A7179

X

LINER - connecting rod bearing, top and bottom half (.030 undersize)

6шт.

A7786

OIL SEAL

RING - piston, top

6шт.

A7816

X

SLEEVE - cylinder - prior to serial #8107569 see A11110 - see page 7 for additional serial numbers

6шт.

A8090

RING

S - set of (24) perfect circle 2 in 1 chrome piston

1шт.

A8656

RING

- piston oil

6шт.

A11110

X

SLEEVE - cylinder (serial #8108407 and after) see A7816 - see page 7 for additional serial numbers

6шт.

A11908

SET OF (2) CYLINDER SLEEVES WITH PACKINGS, 2 pistons with rings, pins & retainer rings (serial #8108407 and after) see page 7 for additional serial numbers

3шт.

6306A

X

PISTON

6шт.

6308A

X

RING - piston, second & third

12шт.

4603AA

X

ROD - connecting, with cap, cap screws and piston pin bushing

6шт.

4703AA

X

SET OF (2) CYLINDER SLEEVES WITH PACKINGS, 2 pistons with rings, pins & pin retainer rings (prior to serial #8107569) see page 7 for additional serial numbers

3шт.

A20393

LINING

LINER - connecting rod bearing top and bottom half (standard size)

6шт.

O9712AB

X

PACKING - cylinder sleeve

12шт.

O9713AB

PIN - piston

6шт.

O9714AB

X

RING - piston pin retainer

12шт.

O9716AB

BUSHING - connecting rod

6шт.

O9718AB

X

SCREW - connecting rod cap

12шт.

A7182

KIT

LINER - crankshaft bearing (wide - upper and lower) .002 undersize

4шт.

A20579

LINING

LINER - crankshaft bearing (narrow - upper and lower) .002 undersize

3шт.

A7188

BEARING LINER

LINER - crankshaft bearing (wide - upper and lower) .010 undersize

4шт.

A20582

LINING

LINER - crankshaft bearing (narrow - upper and lower) .010 undersize

3шт.

A7194

KIT

LINER - crankshaft bearing (wide - upper and lower) .020 undersize

4шт.

A20585

KIT

LINER - crankshaft bearing (narrow - upper and lower) .020 undersize

3шт.

A7200

KIT

LINER - crankshaft bearing (wide - upper and lower) .030 undersize

4шт.

A20588

KIT

LINER - crankshaft bearing (narrow - upper and lower) .030 undersize

3шт.

A7204

WASHER

- crankshaft thrust (.006 oversize) see 09705AB

2шт.

6301A

CAP - crankshaft bearing, wide

3шт.

A6302A

X

CAP - crankshaft bearing, narrow

3шт.

6303A

CAP - crankshaft thrust bearing

1шт.

6318A

FLYWHEEL (use 4624AA), crankshaft

1шт.

4624AA

FLYWHEEL - w/ring gear, crankshaft

1шт.

4706AA

X

LINER - crankshaft bearing (wide - upper and lower) standard size

4шт.

A20394

LINING

LINER - crankshaft bearing (narrow - upper and lower) standard size

3шт.

O8651AB

X

KEY - Woodruff, crankshaft

2шт.

O9700AB

CRANKSHAFT

1шт.

5/8" X 3" fin. hex. bolt (NF) w/lockwasher, crankshaft

4шт.

O9705AB

X

WASHER - crankshaft thrust, (standard size) see A7204

2шт.

O9706AB

SCREW - crankshaft bearing cap

14шт.

O9707AB

X

GEAR - crankshaft

1шт.

O9708AB

X

OIL SEAL - crankshaft front

1шт.

O9829AB

SCREW - flywheel dowel, crankshaft

2шт.

O9830AB

X

GEAR - flywheel (137T), crankshaft

1шт.

O9831AB

X

PLUG - flywheel oil control, crankshaft

1шт.

O9832AB

PIN - wiggle, flywheel oil control, crankshaft

1шт.

O2111FH

X

ROLL PIN (5/32" x 5/8") - for 09832AB wiggle pin, crankshaft

1шт.
