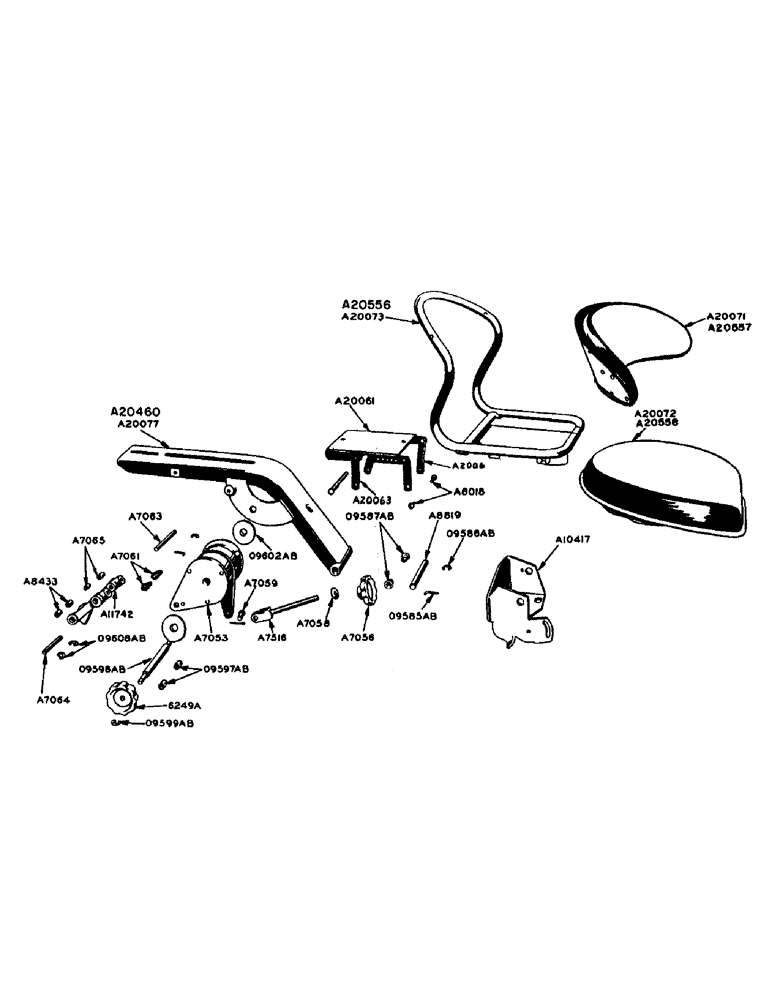

Запчасти Case IH 900 (104) - CASE DELUXE SEAT, SERIAL NUMBER 8108408 AND AFTER (09) - CHASSIS

A7053

SPRING

- rubber torsion and side arm ass'y

1шт.

A7056

NUT

- seat spring adj. hand wheel

1шт.

A7058

BUSHING

WASHER - seat spring adj. nut

1шт.

A7059

PIN - seat spring mtg. adj. rod

1шт.

3/32" x 3/4" cotter pin

1шт.

A7061

BUMPER

- seat, on link A11742

2шт.

A7063

PIN - seat mtg. support link, upper

1шт.

A7064

FRAME

PIN - seat mtg. support link, lower

1шт.

A7065

BUSHING

- for A11742 upper link support

2шт.

A7516

ROD AND YOKE END, seat adjusting

1шт.

A8018

STEP BOLT

BOLT - seat mounting pivot

2шт.

A8433

BUSHING - seat mounting support lower for A11742 link

2шт.

A8816

BRACKET - seat channel and throttle lever, for LP gas (see A10417)

1шт.

5/16" N.f. fin. hex. nut

2шт.

5/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

3/4" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

5/8" plain spacer washer under A8816

2шт.

5/16" x 2-1/4" N.F. fin. hex. bolt

1шт.

A8819

PIN - seat channel, pivot

1шт.

A10417

BRACKET - seat channel and throttle lever (see A8816) diesel only

1шт.

5/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

3/4" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

5/8" washer, plain spacer, used under bracket

2шт.

A11706

LINK - use A11742

1шт.

A11742

LINK - seat mounting support with 2 - A7061 bumpers, 2 - A7065 bushings and 2 - A8433 bushings

1шт.

A20061

CHANNEL - seat mounting, assembly

1шт.

A20062

ARM - seat pivot, front

2шт.

3/8" x 6-1/2" fin. hex. bolt N.F.

1шт.

A20063

ARM - seat pivot, rear

2шт.

A20071

REST - seat back (prior to serial no. 8141036) see A20557

1шт.

A20072

CUSHION - seat (prior to serial no. 8141036) see A20558

1шт.

A20073

FRAME AND GUIDE - seat (prior to serial no. 8141036) see A20556

1шт.

1/4" x 1-3/8" Phillips hd. machine screw zinc plated

7шт.

A20077

CHANNEL - seat (prior to serial no. 8141036) see A20460

1шт.

A20460

CHANNEL - seat (serial no. 8141036 and after)

1шт.

A20556

FRAME AND GUIDE - seat (serial no. 8141036 and after)

1шт.

1/4" x 1-3/8" Phillips hd. mach. screw, zinc plated

7шт.

A20557

BACKREST

REST - seat back (serial no. 8141036 and after)

1шт.

A20558

CUSHION - seat (serial no. 8141036 and after)

1шт.

A20589

KIT - includes seat guide plunger, plunger handle, bracket, spring and rivets

1шт.

A21396

PIN - seat mounting support link, lower

1шт.

6249A

NUT - seat mounting adj. hand wheel

1шт.

O9585AB

X

PIN - lock for A7063 and A8819 pin

2шт.

O9586AB

X

SNAP RING - seat channel pivot pin, retaining

1шт.

O9587AB

X

BUSHING - seat channel pivot pin

2шт.

O9597AB

BUSHING - seat mounting pivot bolt

2шт.

O9598AB

X

BOLT - seat mounting pivot

1шт.

1/2" fin. hex. jam nut N.F. w/lockwasher

1шт.

O9599AB

X

"E" RING - seat mtg. pivot bolt, retaining

1шт.

O9602AB

X

DISC - seat snubbing friction

2шт.

O9608AB

X

RING - seat mounting support link pin retaining for A7063 and A7064 link pins

3шт.

O10594AB

X

NUT - 3/8" N.F. elastic stop, seat pivot

1шт.

G10779

RIVET

- seat pivot arm

4шт.
