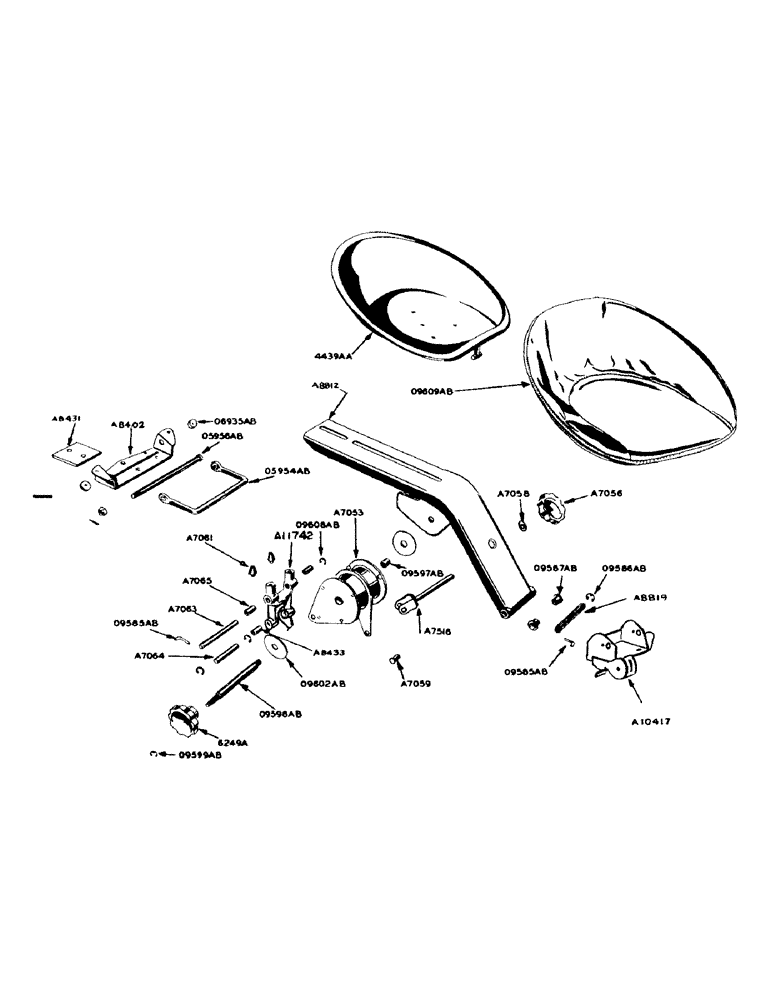

Запчасти Case IH 900 (102) - CASE COMFORT SEAT, PRIOR TO SERIAL NUMBER 8108408 (09) - CHASSIS

A7053

SPRING

- rubber torsion and side arm ass'y

1шт.

A7056

NUT

- seat spring adj. hand wheel

1шт.

A7058

BUSHING

WASHER - seat spring adj. nut

1шт.

A7059

PIN - seat spring mtg. adj. rod

1шт.

3/32" x 3/4" cotter pin

1шт.

A7061

BUMPER

- seat, on link A11742

2шт.

A7063

PIN - seat mtg. support link, upper

1шт.

A7064

FRAME

PIN - seat mtg. support link pin, lower

1шт.

A7065

BUSHING

- for A11742 upper link support

2шт.

A7516

ROD AND YOKE END, seat adjusting

1шт.

A8402

BRACKET - seat rear support

1шт.

A8431

PLATE - seat channel reinforcement

1шт.

1/2" x 1-1/2" fin. hex. bolt N.F.

2шт.

1/2" fin. hex. nut N.F.

2шт.

1/2" ext.-int. tooth shakeproof lockwasher (4024-3200)

2шт.

A8433

BUSHING - seat mounting support lower for A11742 link

2шт.

A8812

CHANNEL - seat, with 09587AB bushings

1шт.

A8819

PIN - seat channel, pivot

1шт.

A10417

BRACKET - seat channel and throttle lever (see A8816) diesel only

1шт.

5/8" x 1-1/2" N.C. hex. bolt w/lockwasher

2шт.

3/4" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

5/8" washer, plain spacer, used under bracket

2шт.

A11742

LINK - seat mounting support with 2 - A7061 bumpers, 2 - A7065 bushings and 2 - A8433 bushings

1шт.

6249A

NUT - seat mounting adj. hand wheel

1шт.

4439AA

SEAT - operators

1шт.

1/2" x 1-1/2" N.F. hex. hd. bolt w/nut

2шт.

1/2" ext.-int. tooth shakeproof lockwasher #4024-3200

2шт.

O5954AB

HINGE - seat

1шт.

O5956AB

BOLT - seat hinge

1шт.

1/2" N.F. light castellated nut

1шт.

3/32" x 7/8" cotter pin

1шт.

O6935AB

X

BUMPER - seat support

2шт.

#10 x 3/4" rd. hd. machine screw w/hex. nut and lockwasher

2шт.

O9858AB

PIN - lock for A7063 and A8819 pin

2шт.

O9586AB

X

SNAP RING - seat channel pivot pin, retaining

1шт.

O9587AB

X

BUSHING - seat channel pivot pin, retaining

2шт.

O9597AB

BUSHING - seat mounting pivot bolt

2шт.

O9598AB

X

BOLT - seat mounting pivot

1шт.

1/2" fin. hex. jam nut N.F. w/lockwasher

1шт.

O9599AB

X

"E" RING - seat mtg. pivot bolt, retaining

1шт.

O9602AB

X

DISC - seat snubbing friction

2шт.

O9608AB

X

RING - seat mounting support link pin retaining for A7063 and A7064 link pins

3шт.

O9609AB

CUSHION - seat

1шт.
