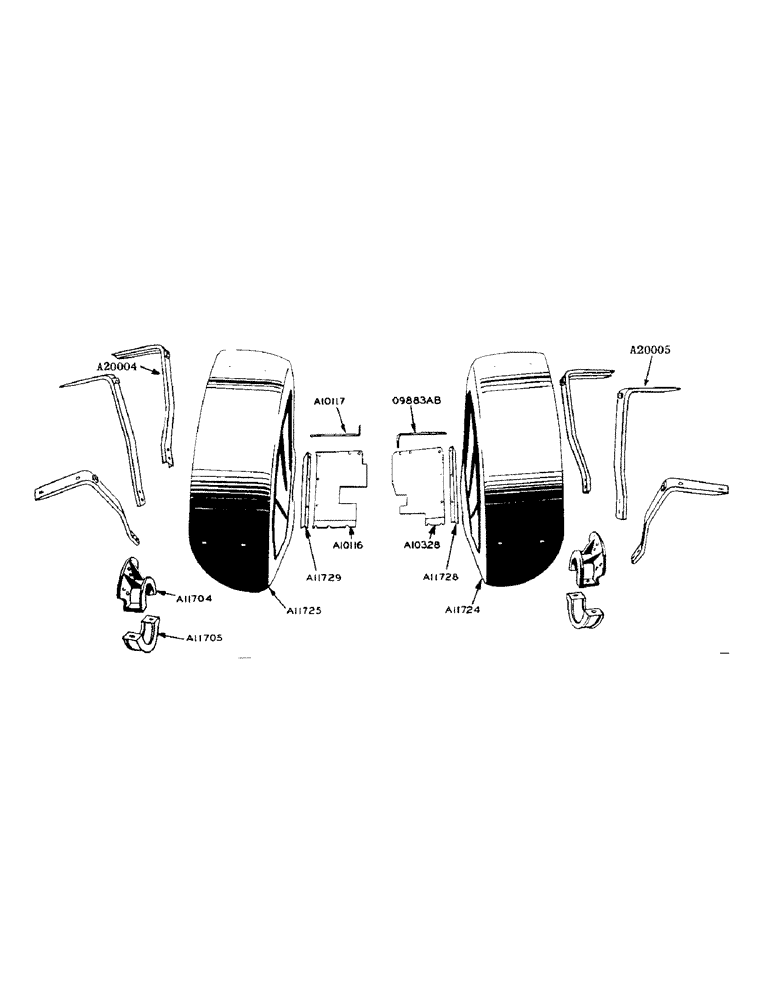

Запчасти Case IH 900 (098) - FENDERS (09) - CHASSIS

A10116

LINK

APRON - L.H.

1шт.

5/16" x 7/8" carr. bolt w/fin. hex. nut

3шт.

5/16" std. lockwasher

2шт.

5/16" shakeproof int.-ext. lockwasher #4081-24

1шт.

A10117

BRACE - apron, L.H.

1шт.

5/16" x 7/8" fin. hex. bolt (NF)

2шт.

5/16" shakeproof int.-ext. lockwasher #4081-24

2шт.

A10328

APRON - R.H.

1шт.

5/16" x 7/8" carr. bolt w/fin. hex. nut

3шт.

5/16" std. lockwasher

2шт.

5/16" shakeproof int.-ext. lockwasher #4081-24

1шт.

A11704

HUB - fender brace

2шт.

1/2" x 1-1/2" fin. hex. bolt (NF) w/nut and lockwasher

12шт.

1/2" U.S. std. washer

12шт.

A11705

CLAMP - hub

2шт.

5/8" x 2-1/2" fin. hex. bolt (NF) w/nut and lockwasher

4шт.

A11724

FENDER - R.H. (prior to serial no. 8141036) see A20594

1шт.

A11725

FENDER - L.H. (prior to serial no. 8141036) see A20595

1шт.

A11728

BRACE - side sheet angle, R.H.

1шт.

5/16" x 7/8" carr. bolt w/fin. hex. nut and lockwasher

4шт.

A11729

BRACE - side sheet angle, L.H.

1шт.

5/16" x 7/8" carr. bolt w/fin. hex. nut and lockwasher

4шт.

A20004

BRACE - fender, front

2шт.

5/16" x 7/8" carr. bolt w/fin. hex. nut and lockwasher (2 per brace)

4шт.

A20005

BRACE - fender, center and rear (serial no. 8141036 and after)

4шт.

5/16" x 7/8" carr. bolt w/fin. hex. nut and lockwasher (2 per brace)

8шт.

A20594

FENDER - R.H. (serial no. 8141036 and after)

1шт.

A20595

FENDER - L.H. (serial no. 8141036 and after)

1шт.

A20596

SUPPORT - fender front R.H. (serial no. 8141036 and after)

1шт.

5/16" x 1-1/2" fin. hex. bolt w/nut and lockwasher (NF)

1шт.

A20597

SUPPORT - fender front L.H. (serial no. 8141036 and after)

1шт.

5/16" x 1-1/2" fin. hex. bolt w/nut and lockwasher (NF)

1шт.

A20600

SUPPORT - fender rear R.H. (serial no. 8141036 and after)

1шт.

5/16" x 1-1/2" fin. hex. bolt w/nut and lockwasher (NF)

1шт.

A20601

SUPPORT - fender rear L.H. (serial no. 8141036 and after)

1шт.

5/16" x 1-1/2" fin. hex. bolt w/nut and lockwasher (NF)

1шт.

V20212

GEAR

WASHER - fender brace

2шт.

O6361AB

CLIP - strap tail lite wire, for L.H. fender only

3шт.

O9883AB

BRACE - apron, R.H.

1шт.

5/16" x 3/4" fin. hex. bolt (NF)

2шт.

5/16" shakeproof int.-ext. lockwasher #4081-24

2шт.
