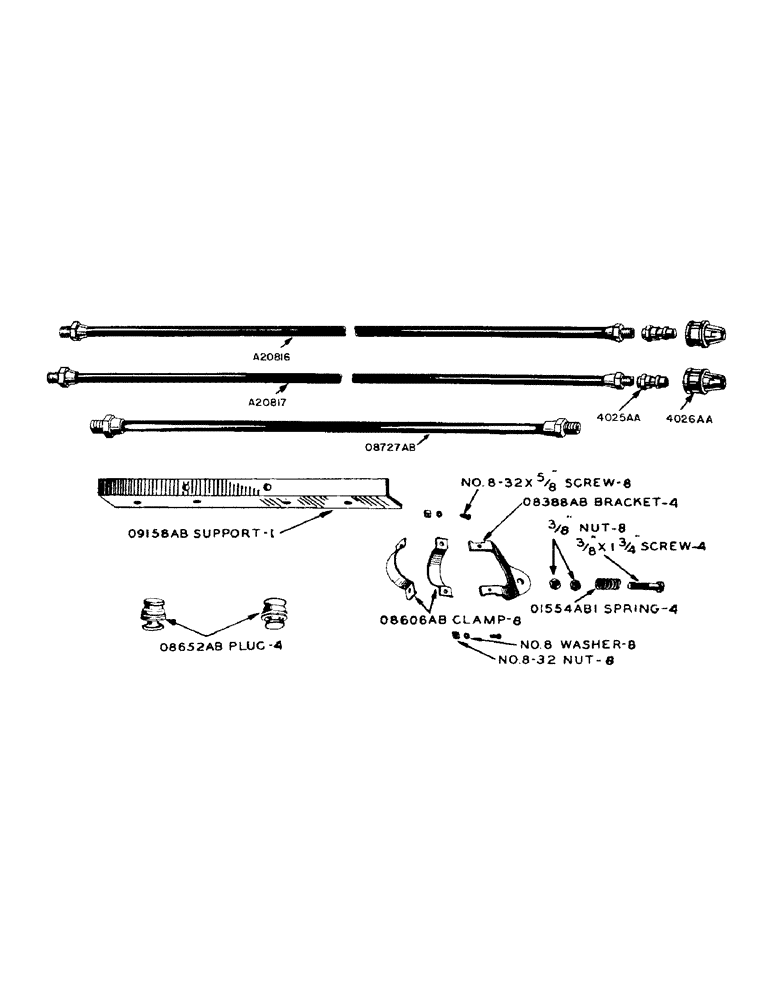

Запчасти Case IH 900 (132) - HYDRAULIC CONTROL UNIT, HOSES FOR PORTABLE CYLINDER (08) - HYDRAULICS

A20816

HOSE

- coupling to portable cylinder, front (1/2" I.D. x 106" long)

1шт.

A20817

HOSE

- coupling to portable cylinder, rear (1/2" I.D. x 118" long)

1шт.

O8681AB

X

CLAMP - double hose

2шт.

5/16" x 3/4" N.F. hex. bolt w/nut and lockwasher

1шт.

O8727AB

X

HOSE - hydraulic (14-1/4")

4шт.

O1554AB1

X

SPRING - mounting bracket, for break-away couplings

4шт.

O8388AB

X

BRACKET - break-away coupling mounting, for

4шт.

3/8" x 1-3/4" N.F. hex. hd. cap screw w/dbl. hex. jam nut, bracket for break-away couplings

4шт.

O8606AB

X

CLAMP - break-away coupling mounting, bracket for

8шт.

NO. 8 - 32 X 5/8" rd. hd. mach. screw w/nut and lockwasher, bracket for break-away couplings

8шт.

O8652AB

X

PLUG - dust, break-away coupling, bracket for

4шт.

O9158AB

SUPPORT - break-away coupling mounting bracket, for

1шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher, bracket for break-away couplings

2шт.
