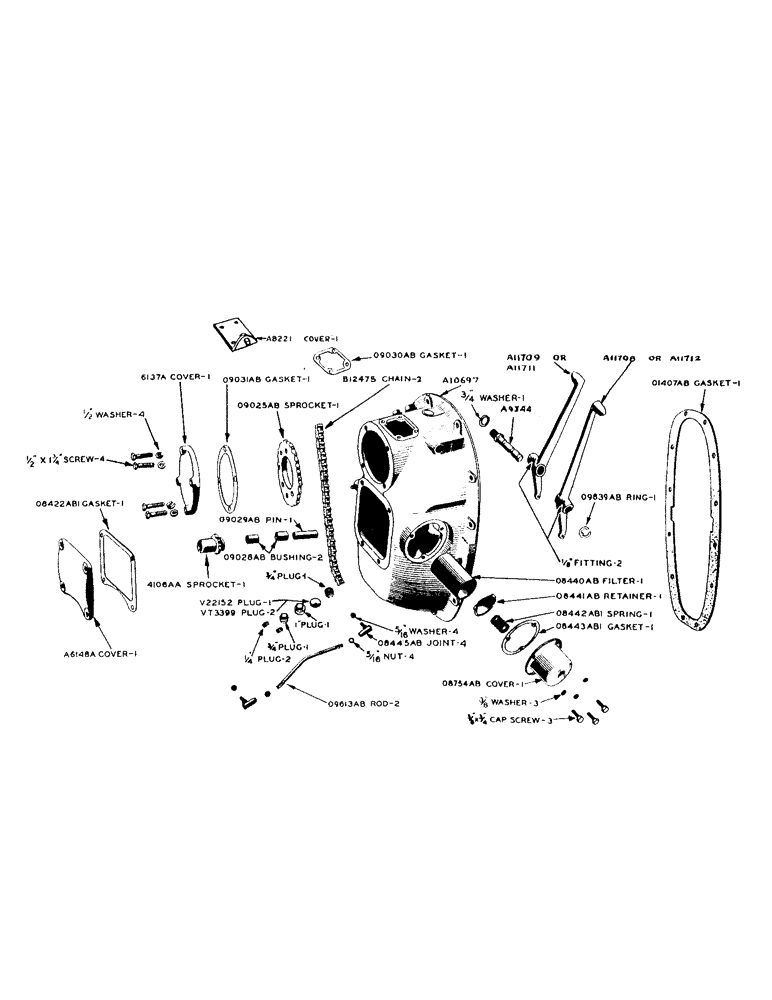

Запчасти Case IH 900 (124) - HYDRAULIC CONTROL UNIT, MAIN HOUSING AND PUMP DRIVE (08) - HYDRAULICS

A9344

STUD - hydraulic valve hand lever

1шт.

3/4" lockwasher

1шт.

A9955

HOUSING - (use A10697)

1шт.

A10697

HOUSING - PTO and hydraulic pump (consists of: 1 - A9955 housing, 1 - 09029AB pin, 2-1/4", 1 - 3/4" and 1 - 1" sq. hd. pipe plug, 1 - 3/4" Lisle magnetic no. 403KG sq. hd. pipe plug, 1 - V22152 and 2 - VT3339 Welch plugs

1шт.

1/2" x 1-1/4" N.C. hex. hd. cap screw w/lockwasher

1шт.

1/2" x 2" N.C. hex. hd. cap screw w/lockwasher

1шт.

A11708

LEVER - valve control hand, outer

1шт.

1/8" str. Lincoln fitting #5000

1шт.

A11709

LEVER - valve control hand, inner

1шт.

1/8" str. Lincoln fitting #5000

1шт.

A11711

LEVER - hydr. valve control hand, inner (use A11709)

1шт.

A11712

LEVER - hydr. valve control hand, outer (use A11708)

1шт.

A20142

COVER - PTO and hyd. pump housing top

1шт.

1/2" x 1-1/4" fin. hex. bolt N.C. w/lockwasher

3шт.

1/2" x 2-1/4" fin. hex. bolt N.C. w/lockwasher

1шт.

B12475

CHAIN (AG)

CHAIN - contains 20 #50 5/8" pitch roller links

2шт.

B12505

LINK

- connecting #50 5/8" pitch (roller chain)

1шт.

B12506

LINK

- offset #50 5/8" pitch (roller chain)

1шт.

B12507

CHAIN (AG)

LINK - roller #50 5/8" pitch (roller chain)

1шт.

6077A

LEVER - valve control hand, outer (use A11708)

1шт.

6082A

LEVER - valve control hand, inner (use A11709)

1шт.

6137A

COVER - for opening, when PTO clutch is not used

1шт.

1/2" x 1-3/4" N.C. hex. hd. cap screw w/lockwasher

4шт.

A6148A

COVER - for opening when hydraulic valve is not used

1шт.

1/2" x 1-1/2" N.C. hex.hd. cap screw w/lockwasher

4шт.

4106AA

X

SPROCKET - with bushing, hyd. pump drive

1шт.

O1407AB

X

GASKET - hydraulic main housing

1шт.

O8422AB1

X

GASKET - for A6148A cover

1шт.

O8435AB

X

CHAIN - hydraulic pump drive (use 2 - B12475)

1шт.

O8440AB

X

FILTER - hydraulic pump oil

1шт.

O8441AB

X

RETAINER - hydraulic pump filter

1шт.

O8442AB1

X

SPRING - hydraulic pump filter

1шт.

O8443AB1

X

GASKET - hydraulic pump filter cover

1шт.

O8445AB

X

BALL JOINT - hydraulic valve control rod

4шт.

5/16" std. lockwasher

4шт.

O8754AB

COVER - hydraulic pump filter

1шт.

3/8" x 3/4" N.C. hex. hd. cap screw

3шт.

3/8" internal shakeproof lockwasher #1220

3шт.

O9025AB

SPROCKET - hydraulic pump drive

1шт.

3/8" x 3/4" N.F. hex. hd. cap screw w/lockwasher

4шт.

O9028AB

X

BUSHING - for 4106AA sprocket

2шт.

O9029AB

X

PIN - hyd. pump driven sprocket bearing

1шт.

O9030AB

X

GASKET - for A8821 top cover

1шт.

O9031AB

X

GASKET - for 6137A cover

1шт.

O9613AB

ROD - hyd. valve control

2шт.

5/16" N.F. hex. jam nut

4шт.

O9639AB

X

"E" RING - for A9344 stud

1шт.

V22152

CAP

PLUG - Welch, hyd. pump housing (1-1/2" dia.)

1шт.

VT3399

PLUG - Welch, hyd. pump housing (1" dia.)

2шт.
