Главная
/
Справочники
/
Case IH
/
Тракторы
/
Сельскохозяйственные
/
OVER 100 HP
/
(900) - CASE TRACTOR (1/57-12/59)
/
(08) - HYDRAULICS
/

(119) - HYDRAULIC POWER STEERING CYLINDER

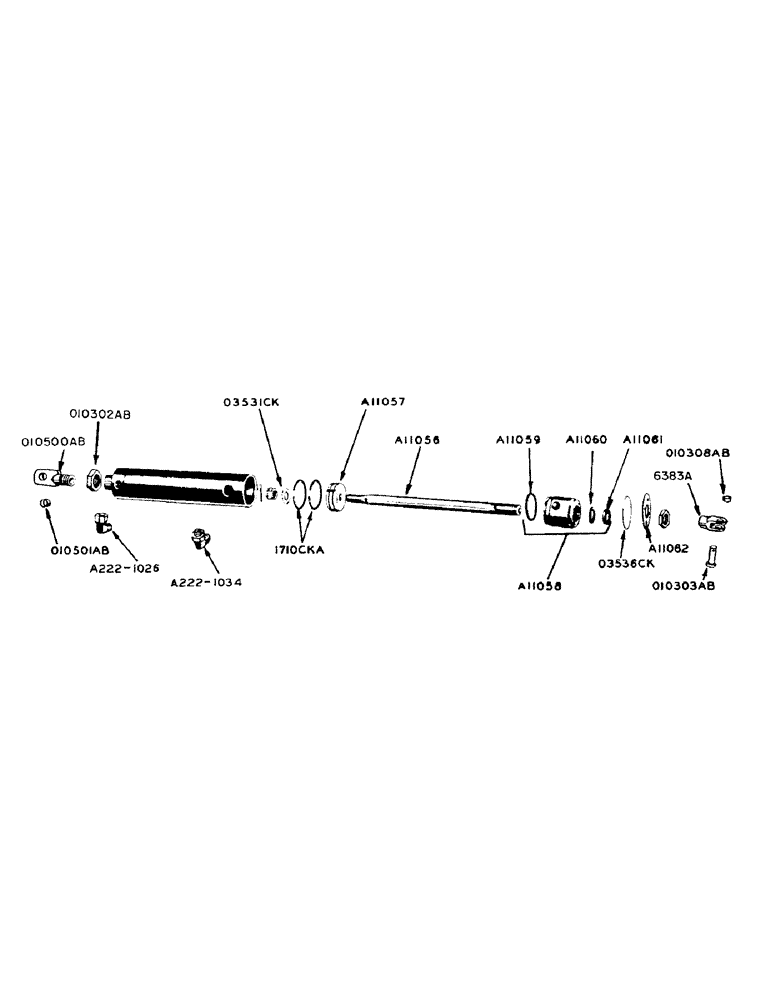

Запчасти Case IH 900 (119) - HYDRAULIC POWER STEERING CYLINDER (08) - HYDRAULICS

№

Артикул

Название

Примечание

Количество

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

- male 90 degree - 3/8 x 1/4 P.T. inverted flare

1шт.

222-1034

ELBOW,45 Degree, 5/8"-18 Inv Fl x 1/4" NPT

- male 45 degree - 3/8 x 1/4 P.T. inverted flare

1шт.

A4745AA

CYLINDER ASSEM. POWER STEERING. Consists of: P/N A11056, P/N A11057, P/N A11058, P/N A11059, P/N A11060, P/N A11061, P/N A11062, P/N O3531CK, P/N O3536CK and P/N O1710CKA

1шт.

O10302AB

NUT - jam, power steering cylinder female yoke end

2шт.

O10500AB

END - yoke, male, w/bushing

1шт.

6383A

END - yoke, female, power steering cylinder

1шт.

A11056

ROD - piston

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

1/2" - 20 (NF) slotted hex. nut

1шт.

3/32" x 1" cotter pin

1шт.

A11057

PISTON

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

A11058

KIT - bearing and seal assembly (bearing for power steering cylinder is furnished with oil seal and "O" ring which consists of 1 - A11059 "O" ring, 1 - A11060 "O" ring and 1 - A11061 oil seal)

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

A11059

O-RING

"O" RING - bearing and seal

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

A11060

O-RING

"O" RING - piston rod

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

A11061

SEAL

OIL SEAL - piston rod

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

A11062

PLATE - end

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

#10-24 x 1/2" rd. rec. hd. screw w/lockwasher

4шт.

O10303AB

X

PIN - for A8231 yoke end

1шт.

1/8" x 1-1/4" cotter pin

1шт.

O10308AB

X

BUSHING - for A8231 yoke end

1шт.

O10501AB

X

BUSHING FOR YOKE END

1шт.

O3531CK

WASHER - piston rod

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

O3536CK

LOCK RING - bearing and seal

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

1710CKA

PACKAGE

RING - piston (set of 2)

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

Выбрано товаров: 33
