Запчасти Case IH 886 (07-57) - DRIVE TRAIN, PLANETARY STEERING AXLE, TRACTORS WITH ALL WHEEL DRIVE (04) - Drive Train

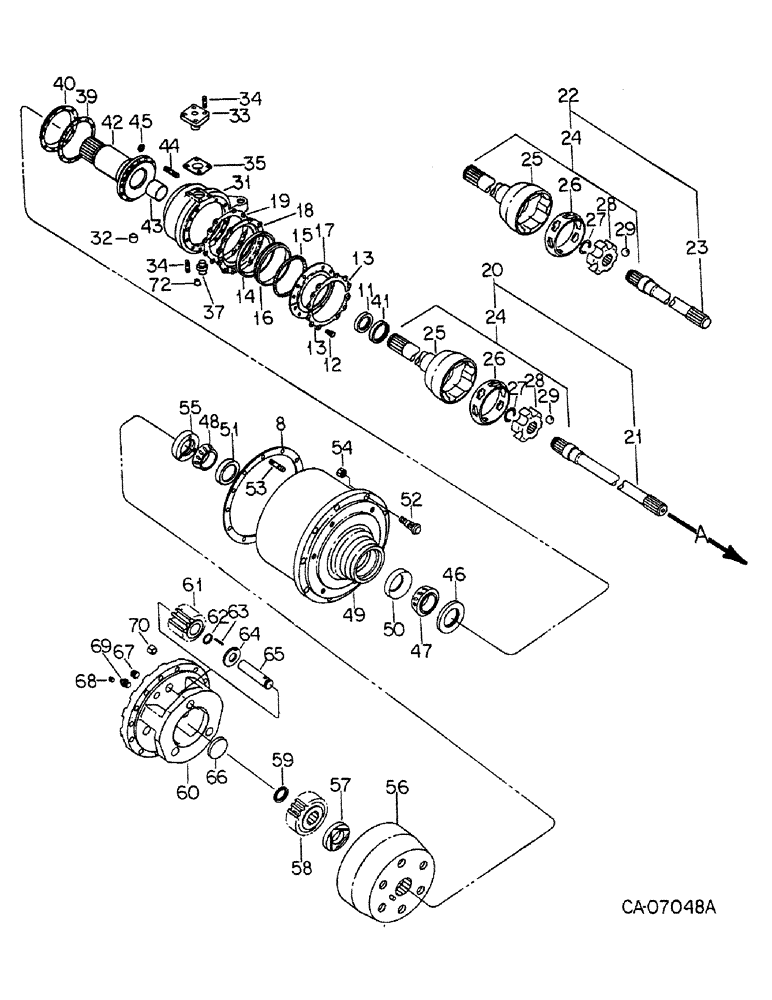

Схема запчастей Case IH 886 - (07-57) - DRIVE TRAIN, PLANETARY STEERING AXLE, TRACTORS WITH ALL WHEEL DRIVE (04) - Drive Train
59
62
43
55
45
52
40
28
28
13
17
41
61
39
15
37
67
22
58
12
65
34
53
72
21
32
54
31
29
68
69
20
51
27
16
42
18
33
24
60
14
63
26
57
29
27
11
25
66
34
49
23
8
64
19
26
56
25
50
46
47
35
24
13
70
48
44

Артикул

Название

Примечание

Количество

1

78786C1

HOUSING

ASSY, axle

1шт.

2

78787C1

BREATHER

ASSY, axle air-vent

1шт.

3

444699

PLUG,Hex Soc, 3/8"-18

3/8-18 autom hex-soc-hd pipe

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 ptf extra short lub

2шт.

5

78788C91

SPARE PART

COVER ASSY, carrier, includes ref 6 & 7

1шт.

182751

BOLT

7/16-NF x 1 PHC type 5

10шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

10шт.

6

9409949

DRAIN PLUG

3/4-14 autom sq-soc-hd pipe

2шт.

7

FO445751

PLUG

1/2-14 autom sq-soc-hd pipe

1шт.

8

939177C1

GASKET

sealant, 3 oz tube

2шт.

9

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

4шт.

10

503098C91

BEARING ASSY,35.72mm ID x 25.4mm W

4шт.

11

78879C91

OIL SEAL

SEAL, oil

2шт.

SEALS SHAFT #21 - OUTPUT SHAFT FROM AXLE HOUSING TO STEERING KNUCKLE. (1/96 - STUCKERT)

1шт.

12

78789C1

BOLT (SPREADER),Lock, 5/16" - 18 x 1/2"

BOLT

24шт.

13

78790C1

RETAINER

oil seal

4шт.

14

78791C1

SEAL

SEAL, knuckle felt

2шт.

15

78792C1

SPRING

coil tension

2шт.

16

78878C1

LOCK VALVE

SEAL, oil

2шт.

17

78793C1

RETAINER

oil seal

2шт.

18

78794C1

RETAINER

oil seal

2шт.

19

78795C1

GASKET

oi seal

2шт.

20

78797C91

JOINT

ASSY, RH shaft

1шт.

21

78799C1

SHAFT

RH

1шт.

22

78796C91

BALL JOINT

JOINT ASSY, LH shaft

1шт.

23

78798C1

SHAFT

LH

1шт.

24

78800C91

UNIVERSAL JOINT

JOINT ASSY

2шт.

25

78801C1

SHAFT

2шт.

26

78802C1

CAGE

2шт.

27

394684R1

RING

snap

2шт.

28

78803C1

RACE

2шт.

29

17102R1

BALL,1 1/16" Dia

12шт.

30

78805C2

KNUCKLE JOINT

KNUCKLE, LH steering, knuckle only

1шт.

31

78806C2

STEERING KNUCKLE

KNUCKLE, RH steering, knuckle only

1шт.

32

1264631C1

BRACE

BUSHING, steering knuckle hsg, replaces 473023C1

2шт.

33

78807C1

CYLINDER END CAP

CAP, king pin

2шт.

34

78808C1

STUD

dowel

16шт.

9411648

LOCK NUT,1/2"-20, GC

NUT, 1/2-NF PHC p/t lock type 8

16шт.

35

78809C1

SHIM

knuckle brg .005

3шт.

35

78810C1

SHIM

knuckle brg .010

3шт.

36

78811C1

ARM

steering

2шт.

37

78812C1

SPARE PART

PIN, king

2шт.

38

503100C91

SOCKET

ASSY, vertical, replaces 78813C1

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 ptf short 65D lub

2шт.

26577R1

NUT,Jam, 1 1/8"-12, G8

1-1/8-NF PHC jam type 8

2шт.

39

78814C1

RETAINER

spacer

2шт.

40

78815C1

RETAINER

hub oil, slinger

2шт.

41

78880C91

OIL SEAL

SEAL, oil

2шт.

42

78816C1

SHAFT

spindle

2шт.

43

472988C1

BUSHING

spindle

2шт.

44

78817C1

STUD

dowel

24шт.

45

78818C1

WASHER

flat

24шт.

273896

HYDRAULIC PUMP

NUT, 7/16-NF PHC p/t lock type 8

24шт.

46

442671C1

OIL SEAL

SEAL, oil

2шт.

47

572900R91

ROLLER BEARING,76.2mm ID x 23.01mm W

cone

2шт.

48

238661R91

CRANKSHAFT BEARING

BEARING, cone

2шт.

49

78819C1

HUB

2шт.

50

572901R1

BEARING, CUP,121.4552 mm OD x 24.7091 mm

2шт.

51

54538H

BEARING CUP

BEARING, cup

2шт.

52

78820C2

BOLT (SPREADER),3/4" - 16 x 2.6", Grade 8

BOLT, wheel stud

20шт.

53

78821C1

STUD

dowel

24шт.

54

78822C1

NUT

wheel

2шт.

55

1251800C1

NUT

lock, used w/ring gear 1251801C1

2шт.

55

78823C1

NUT

split type lock, used w/ring gear 78824C1

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27292R1

BOLT,Hex, 5/16" - 24 x 2 1/4", Gr 8

5/16-NF x 2-1/4 PHC type 8

2шт.

56

1251801C1

GEAR WHEEL

GEAR, planetary ring, 61T, replaces 78824C1

2шт.

57

78825C1

BUSHING

flat spacer

2шт.

58

78826C1

GEAR WHEEL

GEAR, sun

2шт.

59

78827C1

RING

retaining

2шт.

60

78828C1

FLANGE

planetary drive

2шт.

61

78829C1

PINION

GEAR, planet

6шт.

62

78830C1

WASHER

planet gear

6шт.

63

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

PIN, planet gear needle brg

300шт.

64

78832C1

WASHER

planet gear

12шт.

65

78833C1

PIN

planet gear shaft

6шт.

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

6шт.

66

78834C1

AXLE PIN

PIN, thrust washer

2шт.

67

445751

1/2-14 autom sq-soc-hd pipe

4шт.

68

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

2шт.

69

27632R1

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

FITTING, 1/8 slt-hdls pipe

2шт.

70

78836C1

BUSHING

stud

24шт.

232-4617

LOCK NUT,7/16"-20, GC

NUT, 7/16-NF PHC p/t lock type 8

24шт.

71

78837C1

STEM

ROD, tie

1шт.

72

78838C1

PIN

stud adapter

8шт.

73

78839C1

STUD

dowel

6шт.

74

78840C1

STUD

dowel

4шт.

75

78841C1

PIN, carrier mtg dowel

4шт.

273896

HYDRAULIC PUMP

NUT, 7/16-NF PHC p/t lock type 8

10шт.

Выбрано товаров: 89
