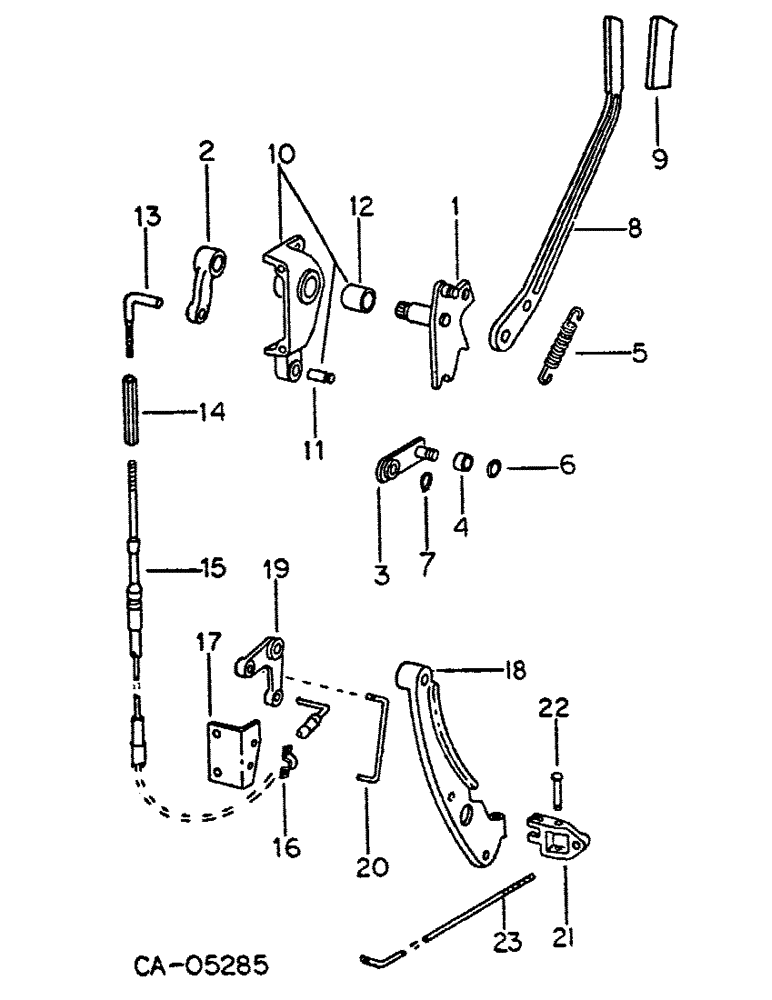

Запчасти Case IH 886 (07-44) - DRIVE TRAIN, TORQUE AMPLIFIER CONTROLS (04) - Drive Train

1

104062C1

SECTOR

ASSY, TA pivot, detent

1шт.

Q399

WASHER

11/32 x 1 x .054

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

2

104066C1

ARM

TA pivot

1шт.

3

139179C1

ARM

ASSY, TA detent, replaces 104067C1

1шт.

4

252932R91

ROLLER

TA detent, replaces 380115R2

1шт.

5

104228C1

SPRING

control detent

1шт.

6

204502R1

SNAP RING,#43, Ext

Roller detent, Replaces 971043R1 #43, Ext

1шт.

7

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , pivot arm #50, .392" Dia, E-Type

1шт.

178551

WASHER

3/8 ext-int tooth lock

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

8

104070C1

HANDLE

TA control

1шт.

9

104765C1

GRIP

TA control handle

1шт.

10

104061C91

SUPPORT

ASSY, TA control pivot

1шт.

11

382564R1

PIN

1шт.

12

120170C1

BUSHING

TA handle pivot, bearing

1шт.

13

120006C1

ROD

TA lever

1шт.

14

120007C1

TURNBUCKLE

TA cable adjusting

1шт.

126183

NUT,1/4"-28, G5, LH

1/4-28 znd hex. LH

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

1шт.

15

120003C2

CABLE

ASSY, TA control

1шт.

16

120008C1

CLAMP

cable anchor

2шт.

28046R1

HEX SOC SCREW,#10 - 24 x 5/8"

SCREW, 10 x 5/8 h/shd cap

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

17

120004C1

SUPPORT

TA cable mounting

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

18

104146C1

PIVOT

TA valve operating

1шт.

445572

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

SCREW, 5/16-18 x 2-3/4 hex-hd cap type 8

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

120002C1

LEVER

TA valve operation

1шт.

53783H

CLEVIS PIN,1/2" x 2 5/16"

PIN, 1/2 x 2-1/4 hard clevis

1шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .051 znd

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

20

104148C1

ROD

TA valve spool lift

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 znd

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

21

382490R1

LEVER

BELLCRANK, clutch brake

1шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 rod end

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

1шт.

22

382491R2

PIN

bellcrank pivot

1шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga.

2шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

23

104149C1

ROD

TA dump valve operating

1шт.

120392

WASHER,1/4", SAE

.280 x 5/8 x .051 znd

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

1шт.

19776R1

LOCK NUT,1/4"-28, GB

NUT, 1/4-28 prevailing torque

1шт.
