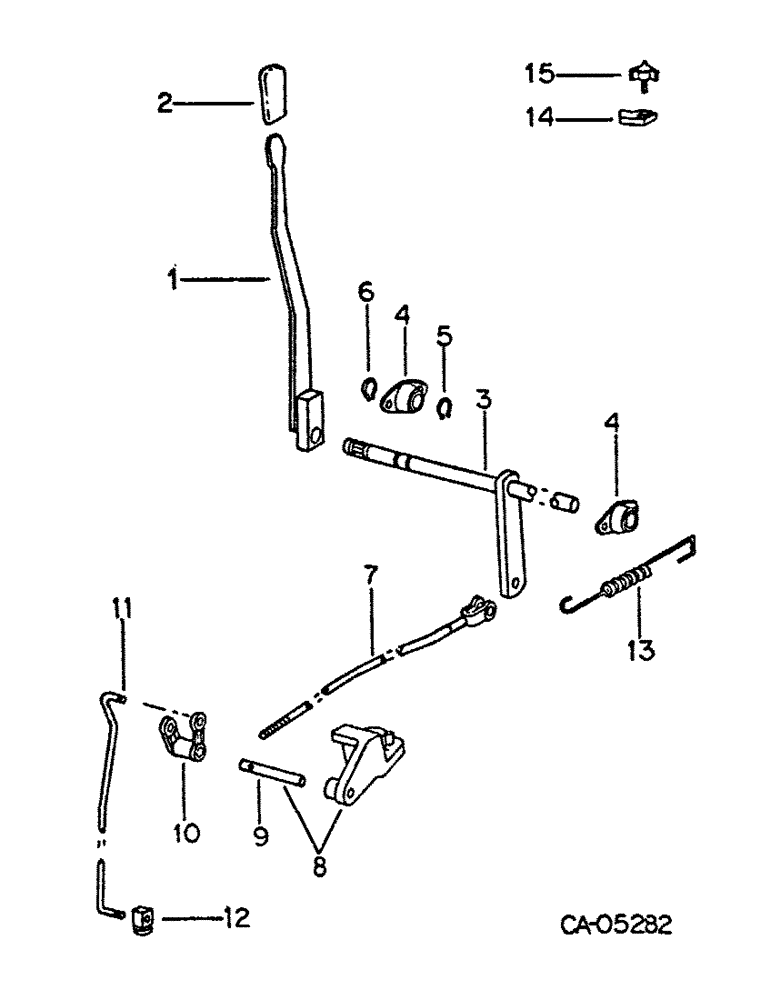

Запчасти Case IH 886 (07-39) - DRIVE TRAIN, INDEPENDENT POWER TAKE OFF, CONTROLS (04) - Drive Train

1

104691C2

LEVER

ASSY, independent PTO control

1шт.

2

1259760C1

BALL KNOB

KNOB, cover, replaces 120197C2

1шт.

3

104244C1

SHAFT

ASSY, independent PTO pivot

1шт.

4

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, flange

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

4шт.

120376

NUT,5/16"-18, G5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .065

4шт.

5

23090R1

SNAP RING,#75, Ext

Ring, Snap, , independent PTO shaft #75, Ext

3шт.

6

384098R1

SNAP RING,#62, Ext

Ring, Snap, , independent PTO handle #62, Ext

1шт.

7

104247C1

ROD

ASSY, independent PTO front

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 rod end adj

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1.22 znd clevis

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .065) 3/8"

2шт.

8

104425C1

SUPPORT

ASSY, independent PTO linkage

1шт.

9

104251C1

PIN

valve linkage support

1шт.

20024R1

PIN

3/8 x 1 hardened powel

1шт.

179890

LATCH

SCREW, 1/2-13 x 2-1/4 hex-hd cap

1шт.

10

104427C1

PIVOT

overcenter

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

11

104257C1

STEM

ROD, independent PTO actuating

1шт.

12

104258C1

CINTRE

TEE, valve adjustment

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .065) 3/8"

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

13

104354C1

SPRING

IPTO linkage anti-friction

1шт.

14

120015C1

STOP

governor PTO over speed, tractors w/o tilt steering

1шт.

14

1252740C1

STOP

governor PRO over speed, tractors w/tilt steering

1шт.

15

399023R2

KNOB

fluted

1шт.

16559R1

WASHER,1/4"

.266 x .625 x .036

1шт.
