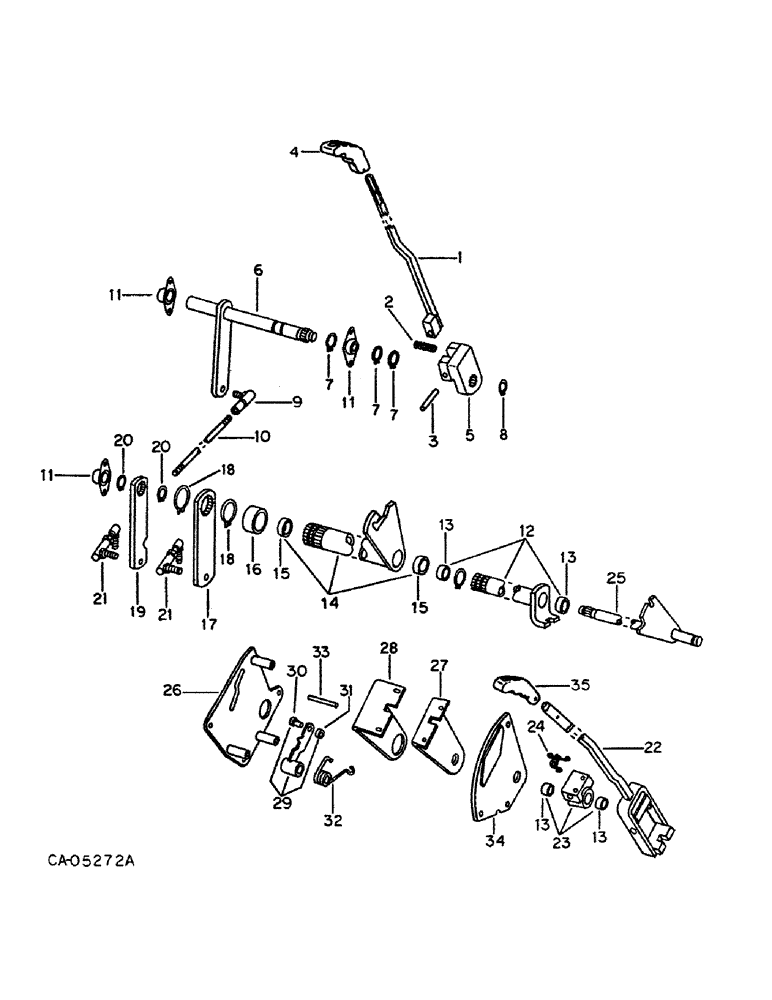

Запчасти Case IH 886 (07-24) - DRIVE TRAIN, TRANSMISSION CONTROLS, EXTERNAL (04) - Drive Train

1

104091C4

HANDLE

ASSY, speed shift

1шт.

2

71486C1

SPRING

speed shift handle

1шт.

3

71426C1

PIN

3/8 x 1-3/4 dowel

1шт.

4

397978R2

GRIP

886, Serial Range: -16999

1шт.

4

397978R2

GRIP

986, Serial Range: -23999

1шт.

4

397978R2

GRIP

1086, Serial Range: -47999

1шт.

4

397978R2

GRIP

1486, Serial Range: -25999

1шт.

4

148841C1

KNOB

speed trans shift, 786 tractors

1шт.

4

148841C1

KNOB

speed trans shift, 886, Start Serial: 17000

1шт.

4

148841C1

KNOB

speed trans shift, 986, Start Serial: 24000

1шт.

4

148841C1

KNOB

speed trans shift, 1086, Start Serial: 48000

1шт.

4

148841C1

KNOB

speed trans shift, 1486, Start Serial: 26000

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

5

104892C1

PIVOT

trans shift handle, hub

1шт.

6

104233C1

PIVOT

ASSY, trans shift

1шт.

7

23090R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

4шт.

8

384098R1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

9

158397H1

BALL JOINT

JOINT, 3/8-24 RH thd ball speed trans

2шт.

425-156

JAM NUT,Jam, 3/8"-24, G5

3/8-24 RH hex jam

2шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 hex. nylon insert

2шт.

10

104100C1

ROD

speed transmission

1шт.

11

382508R91

BEARING ASSY,0.752" ID x 0.81"

BUSHING

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

6шт.

120376

NUT,5/16"-18, G5

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .065 znd

6шт.

12

120480C91

PLATE

ASSY, hi-lo shift, replaces 104108C92 on 886, by also furnishing 1, 120478C1, lever & 2, 454319R1, ring, Serial Range: -11597

1шт.

12

120480C91

PLATE

ASSY, hi-lo shift, replaces 104108C92 on 986, by also furnishing 1, 120478C1, lever & 2, 454319R1, ring, Serial Range: -14029

1шт.

12

120480C91

PLATE

ASSY, hi-lo shift, replaces 104108C92 on 1086, by also furnishing 1, 120478C1, lever & 2, 454319R1, ring, Serial Range: -21576

1шт.

12

120480C91

PLATE

ASSY, hi-lo shift, replaces 104108C92 on 1486, by also furnishing 1, 120478C1, lever & 2, 454319R1, ring, Serial Range: -12503

1шт.

13

363768R1

BUSHING

optional w/bushing 142373C1

4шт.

13

142373C1

BUSHING

optional w/bushing 363768R1

4шт.

14

104113C92

PLATE

ASSY, rev shift

1шт.

25883R1

WASHER

1.594 x 2.250 x .054 (or as required)

1шт.

15

487139R1

BUSHING,28.65mm ID x 31.77mm OD x 12.7mm L

2шт.

16

104259C1

SEAL

1шт.

17

104127C1

ARM

rev shift

1шт.

18

233041R1

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

2шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 nylon insert

2шт.

19

104130C1

LEVER

hi-lo pivot, use w/plate assy 104108C92

1шт.

19

120478C1

LEVER

hi-lo pivot, use w/plate assy 120480C91

1шт.

20

454417R1

SNAP RING,#100, Ext

Ring, Snap, , use w/plate assy 104108C92 #100, Ext

2шт.

20

454319R1

RING

retaining, use w/plate assy 120480C91

2шт.

21

104110C1

BALL JOINT

JOINT, ball

2шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 nylon insert

2шт.

22

143888C1

HANDLE

ASSY, range shift

1шт.

22

143889C92

KIT

PACKAGE, shift lever, replaces handle 104434C3

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 PHC p/t lock type 5

1шт.

23

104104C91

HUB

ASSY, range shift

1шт.

120455C1

SHIM, range shift handle, disc not needed for retaining rings, see Ref. 20

3шт.

24

104236C1

SPRING

shift lever

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

25

104880C1

PLATE

ASSY, park shift

1шт.

131017

WASHER

.812 x 1.469 x .134

1шт.

16066R1

WASHER

SHIM, .761 x 1.500 x .054 (or as required)

1шт.

21018C1

WASHER, .781 x 1.500 x .027 (or as required)

1шт.

26

120454C1

PLATE

ASSY, primary, replaces 104115C1, on orders for 104115C1 furnish 1 plate 120454C1, 1 cam 104124C2, and 1 spacer 25883R1

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

3шт.

27

104118C1

PLATE

rev. park shift

1шт.

28

104119C1

PLATE

rev. park shift

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

2шт.

29

104438C91

PAWL

DETENT ASSY, park

1шт.

30

104442C1

ROLLER

rev park detent

1шт.

31

104443C1

ROLLER

rev park detent

1шт.

32

104444C1

SPRING

park detent

1шт.

33

104124C2

CAM

shuttle

1шт.

34

104120C1

PLATE

ASSY, intermediate

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

3шт.

35

397978R2

GRIP

886, Serial Range: -16999

1шт.

35

397978R2

GRIP

986, Serial Range: -23999

1шт.

35

397978R2

GRIP

1086, Serial Range: -47999

1шт.

35

397978R2

GRIP

1486, Serial Range: -25999

1шт.

35

148840C1

KNOB

range trans shift, 786 tractors

1шт.

35

148840C1

KNOB

range trans shift, 886, Start Serial: 17000

1шт.

35

148840C1

KNOB

range trans shift, 986, Start Serial: 24000

1шт.

35

148840C1

KNOB

range trans shift, 1086, Start Serial: 48000

1шт.

35

148840C1

KNOB

range trans shift, 1486, Start Serial: 26000

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.
