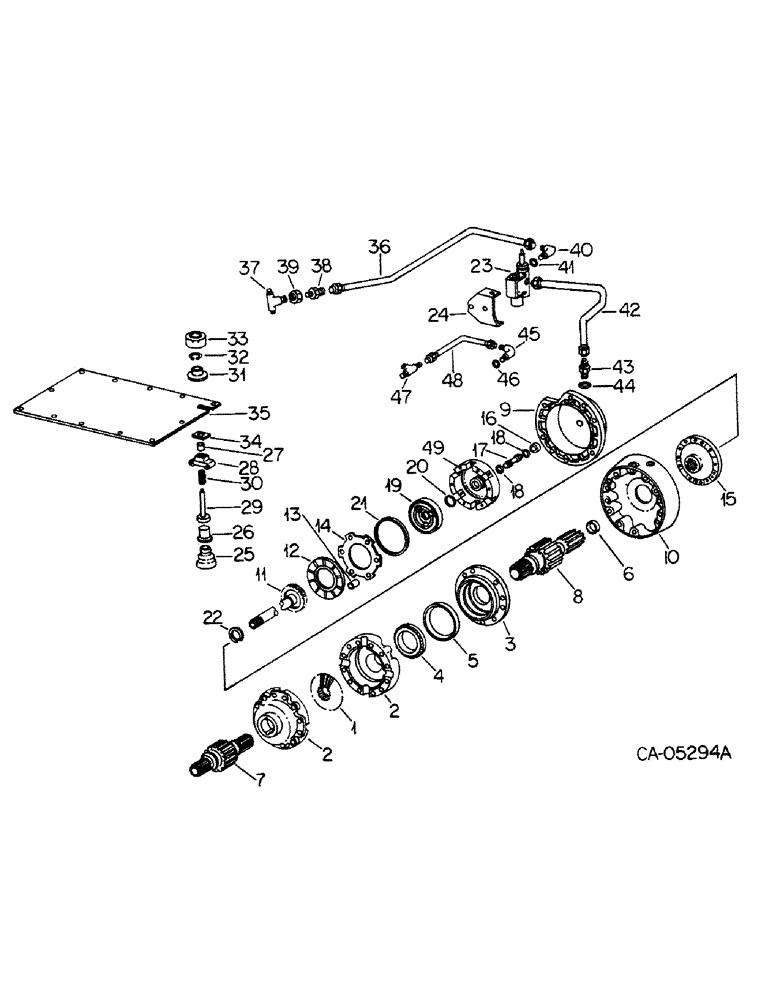

Запчасти Case IH 886 (07-15) - DRIVE TRAIN, DIFFERENTIAL LOCK ATTACHMENT (04) - Drive Train

1

529022R2

GEAR

differential bevel RH, 28T

1шт.

2

529023R2

CASE

ASSY, differential, 886 and 986 tractors, except 986 hi-clear

1шт.

2

534532R2

CASE

ASSY, differential, 986 hi-clear tractor

1шт.

2

528706R3

CASE

ASSY, differential, 1086 and 1486 tractors

1шт.

3

68684C1

RETAINER

differential bearing RH, 886 and 986 tractor, except 986 hi-clear

1шт.

3

68678C1

RETAINER

differential bearing RH, 986 hi-clear tractor

1шт.

3

68683C1

RETAINER

differential bearing RH, 1086 and 1486 tractors

1шт.

4

ST2104

BEARING ASSY

RH roller cone, 886 and 986 tractors, except 986 hi-clear

1шт.

4

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

RH roller cone, 986 hi-clear tractor

1шт.

4

622336C91

ROLLER BEARING

ASSY, RH roller cone, 1086 and 1486 tractors

1шт.

5

ST986

TAPERED BEARING,133.35mm OD x 22.28mm W

BEARING, RH roller cup, 886 and 986 tractor, except 986 hi-clear

1шт.

5

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, RH roller cup, 986 hi-clear tractor

1шт.

5

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, RH roller cup, 1086 and 1486 tractors

1шт.

6

283375R91

NEEDLE BEARING

ASSY, needle

1шт.

7

104677C1

SHAFT

bull pinion and brake LH, 886 and 986 tractors

1шт.

7

104676C1

SHAFT

bull pinion and brake LH, 1086 and 1486 tractors

1шт.

8

104702C1

SHAFT

bull pinion and brake RH, 886 and 986 tractors

1шт.

8

104680C1

SHAFT

bull pinion and brake RH, 1086 and 1486 tractors

1шт.

9

104667C1

COVER

differential lock

1шт.

10

104668C2

HOUSING

RH brake differential lock

1шт.

104706C1

BOLT

BOLT, differential lock cover

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4.0 hex-hd cap, Course Threads

2шт.

11

104669C1

SHAFT

inner

1шт.

12

71914C92

PACKAGE

differential lock service, also furnish a tube of loctit, 414517C2, consists of (6) disc (NSS), (7) plate (NSS), (1) o-ring 350818R1, (1) o-ring 22412R1, (2) o-ring 355966R1, (1) washer 104673C1

1шт.

474517C2

GASKET

TUBE, gasket eliminator, loctite

1шт.

13

104670C1

BUSHING

diff lock stop, spacer

3шт.

14

104705C1

PLATE

diff lock clutch primary

1шт.

15

104671C91

HOUSING

ASSY, piston, consists of (1) carrier (NSS), (1) housing (NSS), (2) pin 20040R1, (1) plug 9409954

1шт.

702222

SUPPORT

1/4 x 2-1/4 pln type 5

6шт.

16

104673C1

THRUST WASHER

thrust

1шт.

17

104714C1

SPOOL

diff lock feed

1шт.

18

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/2

2шт.

19

104674C1

PISTON

diff lock

1шт.

20

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

1шт.

21

22412R1

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

-248, 70 Duro, 4.734" ID x .139" Thk

1шт.

22

269916R1

SNAP RING,#212, Ext

Ring, Snap, #212, Ext

1шт.

23

65416C92

LOCK VALVE

VALVE ASSY, diff lock, for list of components refer to differential lock valve this group

1шт.

24

104583C1

SUPPORT, diff lock valve mounting

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

SCREW, 3/8-16 x 3/4 hex-hd cap w/pellet lock

2шт.

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

25

393071R2

BELLOWS

BOOT, diff lock valve dust

1шт.

26

104584C1

PLUG

diff lock pedal, insulator

1шт.

27

104802C1

GUIDE

ASSY, diff lock rod

1шт.

28

376941R1

BUSHING

diff lock rod guide

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

29

104586C1

AXLE PIN

PIN ASSY, diff lock pedal, rod

1шт.

30

(Not used in this application)

1шт.

31

529042R1

SPACER

RETAINER, pedal pad

1шт.

32

384561R1

SNAP RING,#40, Ext

Ring, Snap, #40, Ext

1шт.

33

529043R1

PAD

diff lock pedal

1шт.

34

104590C1

STRIP, platform air, seal

1шт.

35

104165C2

PLATFORM

PLATE, sub-frame platform, cover, replaces 104591C1

1шт.

36

104647C1

TUBE ASSY, diff lock valve supply

1шт.

37

673526R1

TEE

3/4-16 37 deg hyd flared tube

1шт.

38

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

1/2 x 3/8 37 deg hyd flared tube

1шт.

39

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 3/4-16 37 deg hyd flared tube

1шт.

40

164596C1

ELBOW

foot and inch valve

1шт.

42

104747C1

TUBE

ASSY, diff lock pressure

1шт.

43

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 7/16-20 37 deg hyd flared tube short swivel

2шт.

45

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 x 3/8 tube 37 deg hyd

1шт.

46

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

47

9403098

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

1/4-18 37 deg hyd flared tube 90 deg two way

1шт.

48

104649C1

TUBE

ASSY, diff lock pump

1шт.

49

NSS

NOT SOLD SEPARAT

CARRIER, diff lock, (not serviced separately) order housing assy 104671C91

1шт.

41

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

44

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.
