Запчасти Case IH 886 (07-13) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train

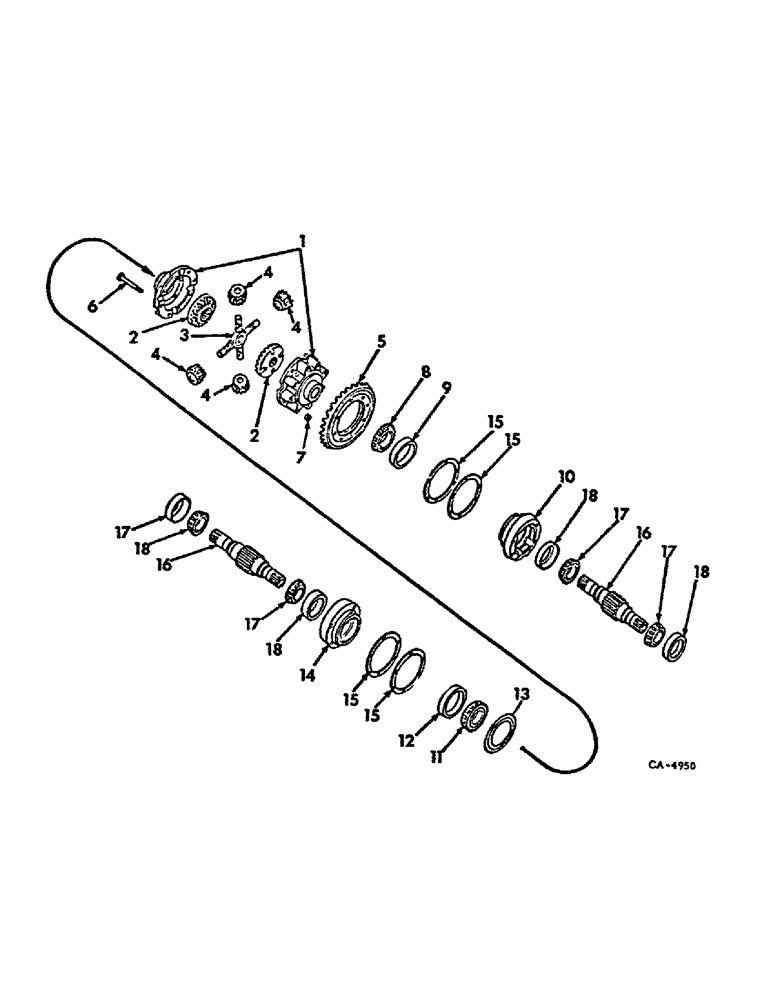

Схема запчастей Case IH 886 - (07-13) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train
16
4
18
15
5
18
4
18
18
13
1
2
7
4
3
11
17
2
15
14
10
6
16
9
15
8
12
15
17
4
17
17

Артикул

Название

Примечание

Количество

1

380187R92

CASE

ASSY, differential, 786, 886 and 986 tractors, 1086 hi-clear tractor

1шт.

1

528706R3

CASE

ASSY, differential, 1086 tractor except hi-clear and 1486 tractor

1шт.

2

380190R2

GEAR

differential bevel, 28 T

2шт.

3

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

4

361061R3

PINION

differential bevel, 15 T

4шт.

5

BEVEL GEAR, (not serviced separately) order package, 120265C91

1шт.

5

68529C91

GEAR-SET

BEVEL GEAR, matched set, tractor w/hi-clear attachment

1шт.

6

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

7

381368R1

NUT,Hex, 1/2" - 20, Gr 8

case bolt

12шт.

8

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

differential RH cone, 786, 886 and 986 tractors, 1086 hi-clear tractor

1шт.

8

622336C91

ROLLER BEARING

ASSY, differential RH cone, 1086 tractor except hi-clear and 1486 tractor

1шт.

9

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, differential RH cup, 786, 886 and 986 tractors, 1086 hi-clear tractors

1шт.

9

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, differential RH cup, 1086 tractor except hi-clear and 1486 tractor

1шт.

10

68686C1

RETAINER

differential brg RH, 786, 886 and 986 tractors

1шт.

10

68683C1

RETAINER

differential brg RH, 1086 and 1486 tractors

1шт.

10

68679C1

RETAINER

differential brg RH, all hi-clear tractors

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

11

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

differential LH cone, 786, 886 and 986 tractors, 1086 hi-clear tractors

1шт.

11

529452R91

ROLLER BEARING

ASSY, differential LH cone, 1086 tractor except hi-clear and 1486 tractor

1шт.

12

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, differential LH cup, 786, 886 and 986 tractors, 1086 hi-clear tractors

1шт.

12

529453R1

BEARING, CUP

BEARING, differential LH cup, 1086 tractor except hi-clear and 1486 tractor

1шт.

13

68672C1

BAFFLE

LH differential brg oil, 786, 886 and 986 tractors

1шт.

13

67397C1

BAFFLE

LH differential brg oil, 1086 and 1486 tractors

1шт.

14

68687C1

RETAINER

differential brg LH, 786, 886 and 986 tractors, 1086 hi-clear tractor

1шт.

14

67595C2

RETAINER

differential brg LH, 1086 tractor except hi-clear and 1486 tractor

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

15

380202R1

SHIM

differential brg retainer, .007 (or as required)

2шт.

15

380203R1

SHIM

differential brg retainer, .012 (or as required)

4шт.

15

380204R1

SHIM

differential brg retainer, .030

1шт.

15

380205R1

SHIM

differential brg retainer, .004

1шт.

15

385155R1

SHIM

differential brg retainer, .003

1шт.

16

104660C1

SHAFT

bull pinion & brake, 786, 886 and 986 tractors, 1086 w/hi-clear

2шт.

16

104657C1

SHAFT

bull pinion & brake, 1086 w/o hi-clear & 1486 tractors

2шт.

17

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING ASSY, bull pinion and brake, 786, 886 and 986 tractors, 1086 hi-clear tractor

4шт.

17

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

bull pinion and brake, 1086 tractor except hi-clear 1486 tractor

4шт.

18

13363D

TAPERED BEARING

BEARING, bull pinion and brake shaft, 786, 886 and 986 tractors, 1086 hi-clear tractor

4шт.

18

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

BEARING, bull pinion and brake shaft, 1086 tractor except hi-clear and 1486 tractor

4шт.

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion, consists of (1) shaft, 13T (NSS), (1) bevel gear, 51T (NSS), (1) shim 380283R2, (2) shim 380284R2, (1) retainer 135770C2, (1) bearing 528684R91, (1) washer 359081R1 (1) nut 359082R2, (1) instructions (NSS)

1шт.

Выбрано товаров: 38
