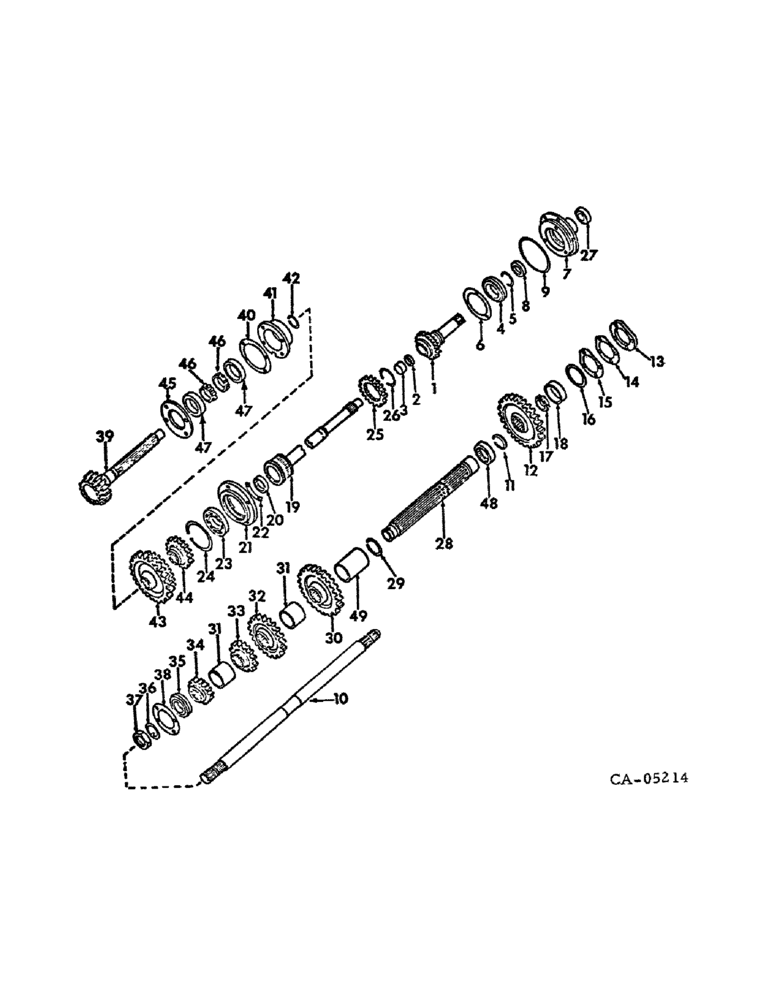

Запчасти Case IH 886 (07-09) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (04) - Drive Train

1

528676R1

SHAFT

IPTO drive, 28 T, 786, 886, 986 and 1086 tractors

1шт.

If you are looking for a cage that fits over the IPTO shaft for tractor with a TA----the part # is 380101R2. cc/Marv Hood 8/99

1шт.

1

67596C1

SHAFT

IPTO drive, 26 T, 1486 tractor

1шт.

If you are looking for a cage that fits over the IPTO shaft for tractor with a TA----the part # is 380101R2. cc/Marv Hood 8/99

1шт.

2

535208R92

SEAL,30.23mm ID x 44.6mm OD x 7.92mm Thk

drive shaft oil

1шт.

3

384185R1

BUSHING,38.18mm ID x 44.58mm OD x 12.7mm L

drive shaft

1шт.

4

ST266

BALL BEARING

BEARING, drive shaft ball, optional w/80418C91

1шт.

Refer to T/A section 7, page 41, for parts between ref #'s 4 & 1. (Check p/n 384182r1). SMA 9-26-97

1шт.

4

80418C91

BEARING ASSY

drive shaft ball, optional w/ST266, 786 and 886 tractors

1шт.

Refer to T/A section 7, page 41, for parts between ref #'s 4 & 1. (Check p/n 384182r1). SMA 9-26-97

1шт.

4

ST343A

BALL BEARING,55mm ID x 100mm OD x 21mm W

BEARING, drive shaft, 986 tractor

1шт.

Refer to T/A section 7, page 41, for parts between ref #'s 4 & 1. (Check p/n 384182r1). SMA 9-26-97

1шт.

4

70227C91

BEARING ASSY,55mm ID x 100mm OD x 21mm W

BEARING, drive shaft, 1086 and 1486 tractors

1шт.

refer to #4 (70227C91) - ball bearing P/N 80434C91

1шт.

Refer to T/A section 7, page 41, for parts between ref #'s 4 & 1. (Check p/n 384182r1). SMA 9-26-97

1шт.

5

384337R1

RING

shaft brg retaining

1шт.

6

384184R1

RETAINER

shaft brg

1шт.

USE 384184R1 RETAINER IF NO T/A IS USED ON THE TRACTOR.

1шт.

USE 384182R1 RETAINER IF A T/A IS USED. FOR EX. SEE 1086 TRACTOR CAT. ON GRP. 7 PG. 9 (NO T/A) AND GRP. 7 PG. 41. REF. 6 AND 4 RESPECTIVELY.IF THEY NEED A BRG RETAINER WITH OUT BOLT HOLES ORDER ST453 CAN BE SEEN IN CAT. TC139 SEC 7 PG 3.

1шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 PHC p/t type 8

3шт.

7

384079R2

CAGE

drive shaft brg

1шт.

If you are looking for a cage that fits over the IPTO shaft for tractor with a TA----the part # is 380101R2. cc/Marv Hood 8/99

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

5шт.

8

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

shaft bearing cage oil

1шт.

9

238-5264

O-RING,0.139" Thk x 7.484" ID, -264, Cl 5, 75 Duro

7-1/2 x 7-3/4 x 1/8, PTO shaft bearing cage sealing (Replaces 22419R1)

1шт.

10

65357C1

SHAFT

IPTO driven

1шт.

11

359141R1

RING, SNAP

RING, IPTO driven ring snap

1шт.

12

68512C1

GEAR

IPTO driven, 58T, 786, 886, 986 and 1086 tractors

1шт.

12

68511C1

GEAR WHEEL

GEAR, IPTO driven, 59 T, 1486 tractor

1шт.

13

67757C1

RETAINER

driven shaft brg

1шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 PHC p/t type 8

4шт.

14

67758C1

SHIM

shaft brg retainer

1шт.

15

67760C1

SHIM

shaft brg retainer, (or as required)

3шт.

16

67761C1

SEAL RETAINER

front brg retainer

1шт.

17

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

ASSY, frt cone

1шт.

18

376463C1

BEARING CUP

BEARING, frt cup

1шт.

19

380076R4

SHAFT

transmission drive

1шт.

CLUTCH PRESSURE RIDES ON THIS SHAFT.

1шт.

20

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

main shaft front

1шт.

20

380295R91

BEARING, ROLLER, CYL,40mm ID x 69.58mm OD x 30.16mm W

main shaft front, 986 hi-clear tractor w/torque amplifier

1шт.

21

380080R1

CAGE

constant mesh drive gear brg

1шт.

22

380081R1

PLATE

constant mesh drive gear brg cage lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

23

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, constant mesh drive gear

1шт.

24

392683R1

RING

constant mesh drive brg cage int snap

2шт.

USE 384182R1 RETAINER IF A T/A IS USED. FOR EX. SEE 1086 TRACTOR CAT. ON GRP. 7 PG. 9 (NO T/A) AND GRP. 7 PG. 41. REF. 6 AND 4 RESPECTIVELY.IF THEY NEED A BRG RETAINER WITH OUT BOLT HOLES ORDER ST453 CAN BE SEEN IN CAT. TC139 SEC 7 PG 3.

1шт.

25

528670R1

GEAR WHEEL

GEAR, constant mesh drive, 26 T

1шт.

26

381330R1

RING

constant mesh drive gear ext snap

1шт.

27

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot

1шт.

27

524598R91GV

BEARING

Value, Ball Bearing

1шт.

28

148951C2

SHAFT

COUNTERSHAFT

1шт.

thruster washer pt #71147C2 goes between #28 (148951C2) and #48 (384114R91)

1шт.

29

357035R1

RING

constant mesh gear snap

1шт.

30

528673R3

GEAR WHEEL

GEAR, constant mesh 47T

1шт.

31

380126R2

SPACER

countershaft gears

2шт.

32

528671R1

GEAR

3rd speed driving, 42T

1шт.

33

528672R1

GEAR

2nd speed driving, 32T

1шт.

34

406473R1

GEAR

1st speed driving, 27T

1шт.

35

ST3021

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, countershaft rear, 786, 886 and 986 tractors

1шт.

35

539163R91

BEARING ASSY,2.3622" ID x 4.3307" OD x 0.8661"

countershaft rear, 1086 and 1486 tractors

1шт.

36

380091R2

THRUST WASHER,59.51mm ID x 82.55mm OD x 1.52mm Thk

countershaft brg lock nut, 886 w/serial no. 16132 & below, 986 w/serial no. 22953 & below, 1086 w/serial no. 43744 & below, 1486 w/serial no. 23731 & below

1шт.

37

539281R1

NUT

countershaft brg lock, right hand thread, 886 w/serial no. 16132 & below, 986 w/serial no. 22953 & below, 1086 w/serial no. 43744 & below, 1486 w/serial no. 23731 & below

1шт.

37

148952C2

NUT

countershaft bearing lock, left hand thread, 786 tractors, 886 w/serial no. 16133 & above, 986 w/serial no. 22954 & above, 1086 w/serial no. 43745 & above, 1486 w/serial no. 23732 & above

1шт.

38

380093R1

RETAINER

countershaft rear brg

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

380094R2

SHAFT

main, 20 and 23 tooth, 786 and 886 tractors, 986 and 1086 tractors w/hi-clear attachment w/o torque amplifier

1шт.

39

382350R2

SHAFT

main, 20 and 23 tooth, 786 and 886 tractor w/torque amplifier, 986 hi-clear tractor w/torque amplifier

1шт.

39

529282R2

SHAFT

main, 20 and 23 tooth, 986, 1086 and 1486 tractors

1шт.

39

529434R2

SHAFT

main, 20 and 23 tooth, 986, 1086 and 1486 tractors w/torque amplifier, except 986 hi-clear tractor

1шт.

40

380095R1

SHIM

main shaft rear brg (or as required)

1шт.

41

384089R2

CAGE

main shaft rear brg, 786 and 886 tractors, all hi-clear tractors

1шт.

41

529283R2

CAGE

main shaft rear bearing, 986, 1086 and 1486 tractors except hi-clear

1шт.

42

380097R1

RING

main shaft rear brg snap

1шт.

43

528674R1

GEAR

1st & 2nd speed sliding, 41 & 46T, replaces 71784C1 by also furnishing nut 148952C1

1шт.

44

528675R1

GEAR

3rd & 4th speed sliding, 31T

1шт.

45

380098R2

RETAINER

main shaft rear brg

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

46

384169R91

BEARING ASSY,55.58mm ID x 96.84mm OD x 26.26mm W

ASSY, w/cup main shaft rear roll, 786 and 886 tractors, all hi-clear tractors

1шт.

46

529207R91

BEARING ASSY,54.99mm ID x 29mm W

ASSY, main shaft rear cone, 986, 1086 and 1486 tractors, except hi-clear

1шт.

47

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, main shaft rear cup, 986, 1086 and 1486 tractors

1шт.

48

384114R91

NEEDLE BEARING

countershaft front needle, refer to clutch housing listing, this group

1шт.

thruster washer pt #71147C2 goes between #28 (148951C2) and #48 (384114R91)

1шт.

49

384091R3

SPACER

constant mesh gear, long, tractors w/torque amplifier

1шт.
