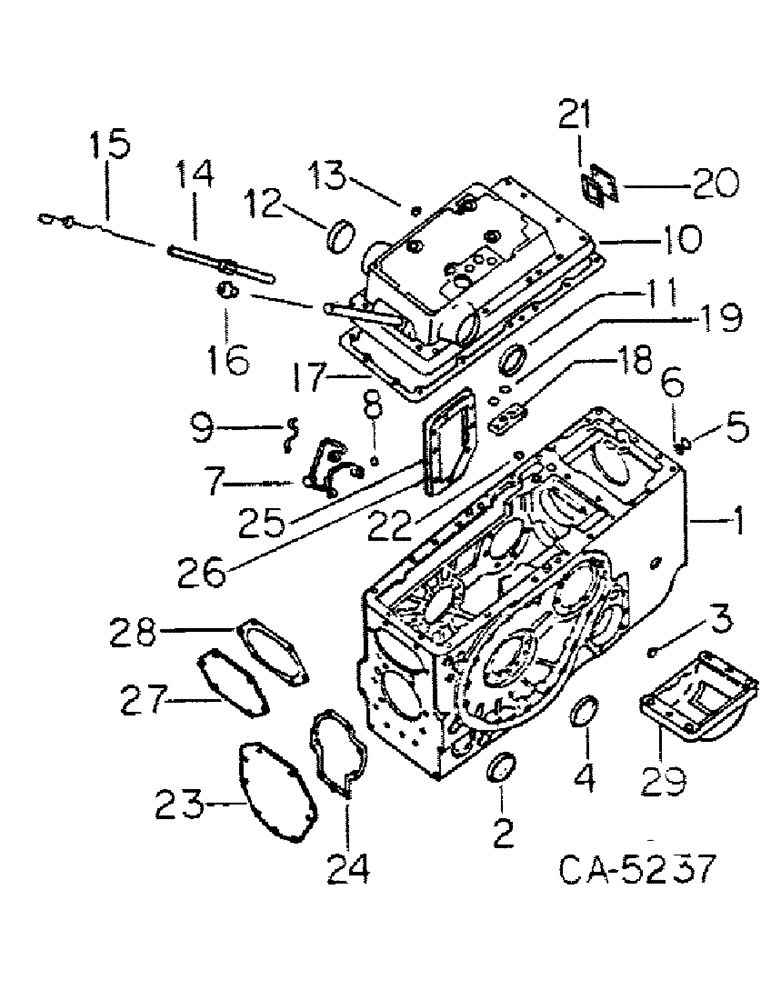

Запчасти Case IH 886 (07-07) - DRIVE TRAIN, REAR FRAME AND COVERS (04) - Drive Train

1

127910C91

FRAME

ASSY, rear, replaces 68517C92 & 139132C91, on orders for 68517C92 also furnish o-ring 707253R1, adapter 127903C1, gasket 380067R4, suction tube 133685C18 tube support 133686C1 & o-ring 293726R1, on orders for 139132C91 also furnish suction tube 1336

1шт.

refer to #1 (137910C91) - tube is 138895C1

1шт.

Ref #1 Dowel pin to line up frame with rear carrier is p/n 19968r1 which is 3/4" X 1-1/4" pin. CH 7/14/97

1шт.

Ref# 1, dowel pin 3/4" x 2-1/4" is 19969r1 djo 10/23/98

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto sq-soc pipe

2шт.

445751

1/2-14 auto sq-soc pipe

2шт.

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

3/4-14 auto sq-soc pipe

1шт.

9409949

DRAIN PLUG

3/4-14 auto sq-soc pipe

1шт.

2

383331R1

PLUG,Cup, 4.26"

torsion bar cup

2шт.

3

172574

PLUG,Exp, 1 1/2"

1-1/2 expansion pump suction port

1шт.

4

172558

PLUG,Exp, 1 1/4"

1-1/4 expansion diff lub tube

1шт.

5

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, clutch housing suction tube, 886, Serial Range: -12544

1шт.

5

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, clutch housing suction tube, 986, Serial Range: -15864

1шт.

5

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, clutch housing suction tube, 1086, Serial Range: -26177

1шт.

5

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, clutch housing suction tube, 1486, Serial Range: -15078

1шт.

5

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 x 1/8, clutch housing suction tube, 786 tractors

1шт.

5

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 x 1/8, clutch housing suction tube, 886, Start Serial: 12545

1шт.

5

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 x 1/8, clutch housing suction tube, 986, Start Serial: 15865

1шт.

5

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 x 1/8, clutch housing suction tube, 1086, Start Serial: 26178

1шт.

5

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 x 1/8, clutch housing suction tube, 1486, Start Serial: 15079

1шт.

6

380271R1

RETAINER

sealing ring, 886, Serial Range: -12544

1шт.

6

380271R1

RETAINER

sealing ring, 986, Serial Range: -15864

1шт.

6

380271R1

RETAINER

sealing ring, 1086, Serial Range: -26177

1шт.

6

380271R1

RETAINER

sealing ring, 1486, Serial Range: -15078

1шт.

6

127903C1

RETAINER

sealing ring, 786 tractors

1шт.

6

127903C1

RETAINER

sealing ring, 886, Start Serial: 12545

1шт.

6

127903C1

RETAINER

sealing ring, 986, Start Serial: 15865

1шт.

6

127903C1

RETAINER

sealing ring, 1086, Start Serial: 26178

1шт.

6

127903C1

RETAINER

sealing ring, 1486, Start Serial: 15079

1шт.

7

68688C1

TUBE

ASSY, trans lub

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

406579R1

WASHER

lub tube bracket spacer

1шт.

8

67745C1

SEALING RING

mainshaft fitting

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

upper lub tube mounting bracket

1шт.

406579R1

WASHER

bearing retainer bolt

3шт.

9

67748C2

TUBE

ASSY, diff ret upper lub

1шт.

9

68685C1

TUBE,12.7 mm OD, 96.01, 67.82 mm Length

ASSY, diff lub upper, tractor w/hi-clear att

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lube tube bracket, lower

1шт.

10

1259630C91

COVER ASSY

COVER, rear frame, refer to rear frame cover this group for details, replaces 104779C91 by also ordering oil level gauge tube assy 1259628C1

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

SCREW, 5/8-11 x 3-7/8 hex-hd cap

16шт.

444776

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 sq-soc pipe

1шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 sq-soc pipe

1шт.

11

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH Cup, 3.762"

1шт.

12

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH Cup, 3.510"

1шт.

13

380263R1

PLUG

eccentric shaft & mounting bolt openings cup

5шт.

14

104161C1

TUBE,5.62" Length

ASSY, oil level gauge, 786, Serial Range: -10078

1шт.

14

104161C1

TUBE,5.62" Length

ASSY, oil level gauge, 886, Serial Range: -18023

1шт.

14

104161C1

TUBE,5.62" Length

ASSY, oil level gauge, 986, Serial Range: -26546

1шт.

14

104161C1

TUBE,5.62" Length

ASSY, oil level gauge, 1086, Serial Range: -54321

1шт.

14

104161C1

TUBE,5.62" Length

ASSY, oil level gauge, 1486, Serial Range: -29382

1шт.

14

1259628C1

TUBE,4.52" Length

ASSY, oil level gauge, 786, Start Serial: 10079

1шт.

14

1259628C1

TUBE,4.52" Length

ASSY, oil level gauge, 886, Start Serial: 18024

1шт.

14

1259628C1

TUBE,4.52" Length

ASSY, oil level gauge, 986, Start Serial: 26547

1шт.

14

1259628C1

TUBE,4.52" Length

ASSY, oil level gauge, 1086, Start Serial: 54322

1шт.

14

1259628C1

TUBE,4.52" Length

ASSY, oil level gauge, 1486, Start Serial: 29383

1шт.

15

104164C1

DIPSTICK

GAUGE ASSY, oil level

1шт.

16

367677R91

BREATHER

ASSY, oil filler tube cup

1шт.

17

380264R2

GASKET

rear frame cover

1шт.

18

382758R1

COVER

draft control port

1шт.

NLS

NO LONGER SERVICED

2шт.

19

387926R2

RING

draft control port cover seal

2шт.

20

382415R1

COVER

valve adj opening, w/o draft control

1шт.

179814

SPACER

6шт.

21

382416R1

GASKET

valve adj opening

1шт.

22

388306R1

RING,32.77mm ID x 39.12mm OD x 3.17mm Thk

SEAL, rear frame pressure port oil

1шт.

23

380272R1

COVER

independent PTO opening

1шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

9шт.

24

381467R1

GASKET

independent PTO opening cover

1шт.

25

380330R3

COVER

drive att opening

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

26

385757R2

GASKET

drive att opening cover

1шт.

27

383329R1

COVER

draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

6шт.

28

383330R1

GASKET

draft control adj opening cover

1шт.

29

108508C1

SUPPORT

ASSY, swinging drawbar pivot, 886, Serial Range: -10843

1шт.

29

108508C1

SUPPORT

ASSY, swinging drawbar pivot, 986, Serial Range: -12883

1шт.

29

108508C1

SUPPORT

ASSY, swinging drawbar pivot, 1086, Serial Range: -18932

1шт.

29

108508C1

SUPPORT

ASSY, swinging drawbar pivot, 1486, Serial Range: -11409

1шт.

29

72475C1

SUPPORT

ASSY, swinging drawbar pivot, 786 tractors

1шт.

29

72475C1

SUPPORT

ASSY, swinging drawbar pivot, 886, Start Serial: 10844

1шт.

29

72475C1

SUPPORT

ASSY, swinging drawbar pivot, 986, Start Serial: 12884

1шт.

29

72475C1

SUPPORT

ASSY, swinging drawbar pivot, 1086, Start Serial: 18933

1шт.

29

72475C1

SUPPORT

ASSY, swinging drawbar pivot, 1486, Start Serial: 11410

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

9428659

DOWEL,1" x 2"

PIN, 1/2 dowel (replaces 20324R1)

1шт.
