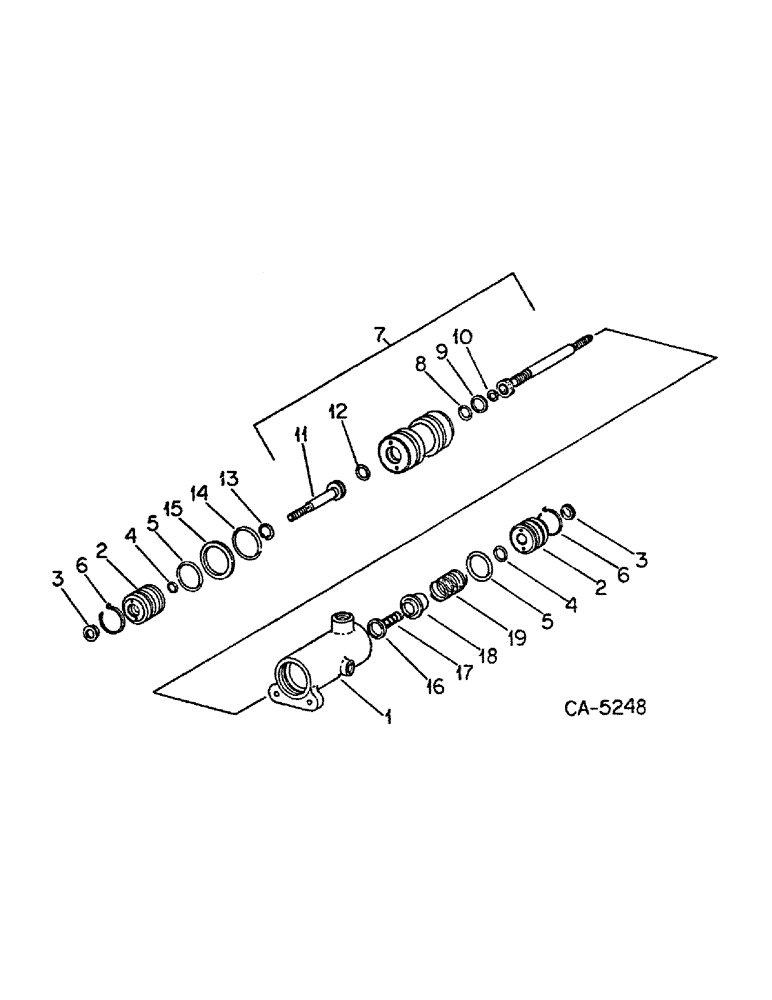

Запчасти Case IH 886 (07-06) - DRIVE TRAIN, CLUTCH BOOSTER (04) - Drive Train

113965C93

CYLINDER

BOOSTER ASSY, clutch

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, clutch booster, (not serviced separately) order clutch booster assy 113965C93

2шт.

2

113967C1

CAP

end, 886, Serial Range: -11603

1шт.

2

113967C1

CAP

end, 986, Serial Range: -14037

1шт.

2

113967C1

CAP

end, 1086, Serial Range: -21601

1шт.

2

113967C1

CAP

end, 1486, Serial Range: -13022

1шт.

2

133794C1

CAP

end, 786 tractors

1шт.

2

133794C1

CAP

end, 886, Start Serial: 11604

1шт.

2

133794C1

CAP

end, 986, Start Serial: 14038

1шт.

2

133794C1

CAP

end, 1086, Start Serial: 21602

1шт.

2

133794C1

CAP

end, 1486, Start Serial: 13023

1шт.

3

548108R1

WIPER

rod, order package, 75414C91 (NSS)

1шт.

548108r1 piston rod wiper (.750 o.d x 1/8 wide for .500 shaft)

1шт.

4

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

11/16 x 1/2 x 3/32, order package, 75414C91 (NSS)

1шт.

252739r1 o-ring(1/2 x 11/16 x 3/32 class 5 but now subs to 238-5112

1шт.

5

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

2 x 1-13/16 x 3/16, order package, 75414C91 (NSS)

1шт.

364108r1 o-ring (1 13/16 x 2 x 3/16 class 5 but now subs to 238-5133 8/3/99 svp

1шт.

6

113968C1

SPRING

retaining ring

2шт.

7

123293C92

PISTON

ASSY, booster

1шт.

8

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

11/16 x 9/16 x 1/16

1шт.

9

113972C1

RING

reaction piston seal

1шт.

10

603540C1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

1шт.

The long rod to the right of P/N 10 is 113971c1 per print rev C. This part is NSS, as it mates with the center part # without a housing (between ref#'s 12 & 8), which is P/N 123249c1, which is also NSS. SMA 12-10-97

1шт.

11

123026C2

STUD,25.15mm OD x 134.62mm L

output rod

1шт.

12

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

13

303322R1

SNAP RING,1.00", Int, #100

1шт.

14

327085R1

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1-3/4 x 1-9/16 x 3/32

2шт.

15

114199C2

SEAL,44.68mm ID x 51.03mm OD x 3.17mm Thk

teflon

2шт.

16

529044R1

LOCK WASHER

diff lock boot

1шт.

17

114003C1

SPRING

valve

1шт.

18

113975C1

CUP

spring retainer

1шт.

19

114198C1

SPRING

booster piston

1шт.

75414C91

SEAL

clutch booster seal service, consists of ref nos 3, 4, 5, 6, 8, 9, 10, 12, 13, 14 and 15

1шт.
