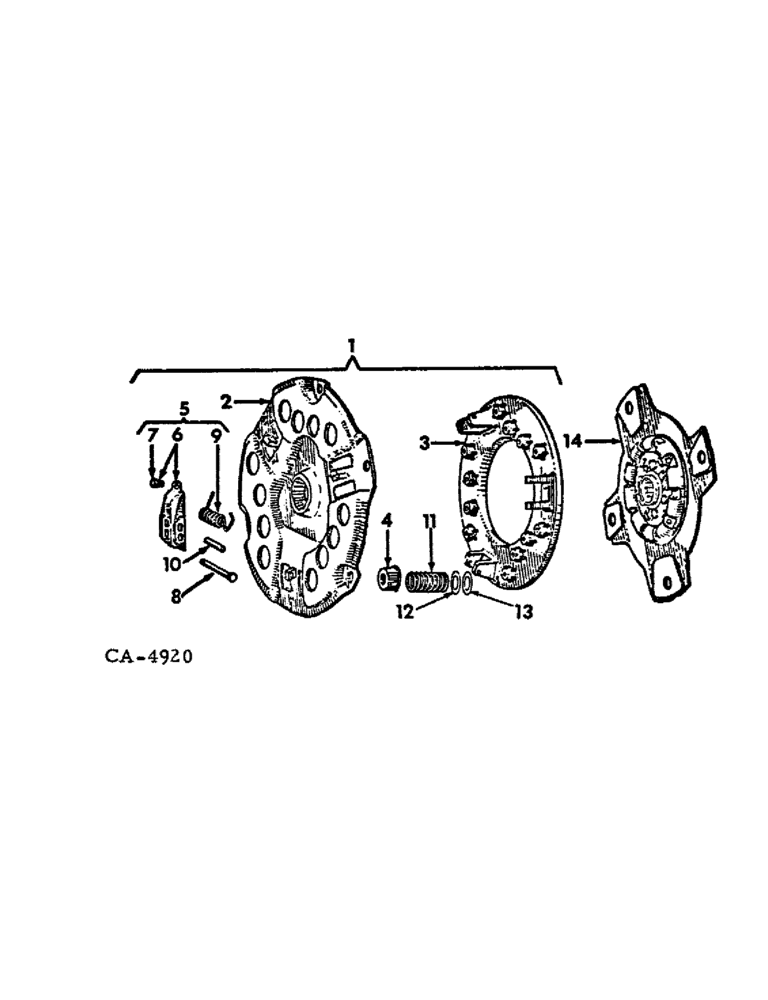

Запчасти Case IH 886 (07-02) - DRIVE TRAIN, CLUTCH, 786, 886 AND 986 TRACTORS (04) - Drive Train

1

405300R92

CLUTCH PLATE

PLATE ASSY, clutch pressure, 786 and 886 tractors

1шт.

1

405300R92R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate, 12 in, 17 Tooth Hub

1шт.

1

405300R92C

CORE-CLUTCH PLATE

Return Number

1шт.

1

389768A1

REMAN-CLUTCH KIT

Remanufactured, Clutch Kit - Includes 12 pressure plate 405300R92R, 12 disc assy 384395R94R, 69789C91 throwout bearing, 524598R91 pilot bearing

1шт.

1

389768A1C

CORE-CLUTCH KIT

Return Number

1шт.

1

1251696C91

REMAN-CLUTCH PLATE

Plate Assy, clutch pressure, renewed for 405300R92

1шт.

1

104496C2

COVER ASSY

PLATE ASSY, clutch pressure, 986 tractor

1шт.

1

104496C2R

REMAN-CLUTCH PLATE

Remanufactured 12" Clutch Plate

1шт.

1

104496C2C

CORE-CLUTCH PLATE

Return Number, 12" Clutch Plate

1шт.

1

1251689C1

CLUTCH

PLATE ASSY, clutch pressure, renewed for 104496C2

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

2

375569R92

COVER ASSY

PLATE ASSY, clutch back

1шт.

3

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE, clutch pressure

1шт.

4

353316R1

SPRING CUP

CUP, clutch pressure spring

12шт.

5

375570R92

PACKAGE

PACKAGE, clutch lever

3шт.

6

375571R92

FINGER

LEVER ASSY, clutch

3шт.

7

146806R1

SCREW,Hex, 5/16" - 24 x 15/32"

SCREW, clutch lever adjusting

3шт.

IF DEALER NEEDS PART NUMBER 146806R1 HE MUST ORDER PART NUMBER 129247A1 10/25/96

1шт.

8

149487R1

PIN

PIN, clutch lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

95-11034

WASHER,1/4"

WASHER, 11/32 x 11/16 x .065

3шт.

9

375572R1

SPRING

SPRING, clutch lever

3шт.

10

143264R1

PIVOT PIN

PIN, lever pivot

3шт.

11

349934C1

SPRING

SPRING, clutch pressure, 786 and 886 tractors

12шт.

11

71906C1

SPRING

SPRING, clutch pressure, 986 tractor

12шт.

12

311292C1

WASHER

WASHER, retainer

12шт.

13

311291C1

INSULATING WASHER

WASHER, insulating

12шт.

14

384395R92

DISC

DISC ASSY, clutch driven, dyna life, 786 and 886 tractors

1шт.

14

1251682C91

CLUTCH

DISC ASSY, clutch driven, dyna life, renewed for 384395R92

1шт.

14

104495C1

CLUTCH DISC

CLUTCH DISK DISC ASSY, clutch driven, dyna life, 986 tractor

1шт.

14

104495C3R

REMAN-CLUTCH DISC,301.75mm OD

Remanufactured Clutch, 12", 11 tooth hub, 1 13/64" OD of splines, 6 paddle

1шт.

14

104495C3C

CORE-CLUTCH DISC

Return Number

1шт.

14

1251680C1

CLUTCH

DISC ASSY, clutch driven, dyna life, renewed for 104495C1

1шт.

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot bearing, See Fig. 7-10, Ref. #27

1шт.

524598R91GV

BEARING

Value, Ball Bearing

1шт.
