Запчасти Case IH 886 (14-05) - SUSPENSION, ADJUSTABLE WIDE TREAD FRONT AXLE, MODELS WITH TRICYCLE FRONT UPPER BOLSTER Suspension

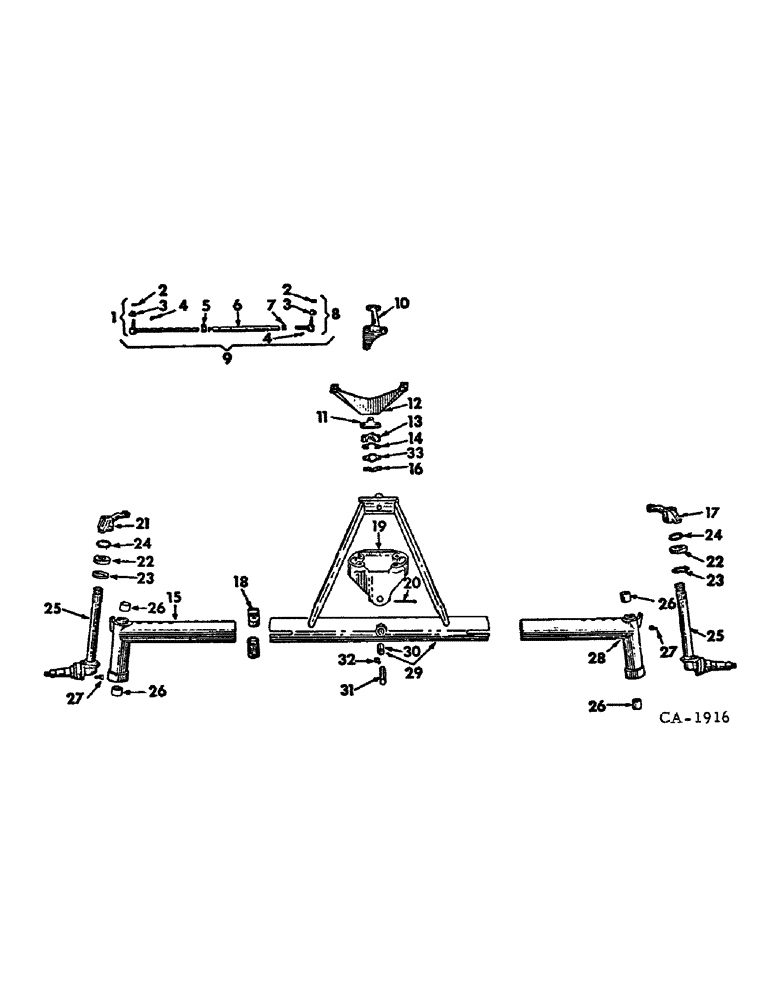

Схема запчастей Case IH 886 - (14-05) - SUSPENSION, ADJUSTABLE WIDE TREAD FRONT AXLE, MODELS WITH TRICYCLE FRONT UPPER BOLSTER Suspension
9
32
8
21
17
13
5
26
25
30
29
2
4
4
2
11
27
24
7
26
18
19
25
31
6
3
26
22
20
33
16
15
26
28
23
22
27
23
10
3
1
14
24
12

Артикул

Название

Примечание

Количество

1

384441R93

ROD

ASSY, tie LH, axles w/50 to 74 in. tread

1шт.

1

359984R93

TIE-ROD

ROD ASSY, tie LH, axles w/56 to 80 in. tread

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 taper drive and self-tapping lub

1шт.

2

359983R1

NUT

tie rod end

2шт.

3

358900R1

SEAL

COVER, dust

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8-27 ptf str-lub

2шт.

5

359986R1

CLAMP

tie rod

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 hex-hd cap

1шт.

6

384439R1

TUBE,0.937" ID, 1.187" OD, 15.312" Length

tie rod, axles w/50 to 74 in. tread

1шт.

6

383917R1

TUBE

tie rod, axles w/56 to 80 in. tread

1шт.

7

384442R1

JAM NUT

NUT, jam, axles w/50 to 74 in. tread

1шт.

7

374062R1

JAM NUT

NUT, jam, axles w/56 to 80 in. tread

1шт.

8

384440R92

END

ASSY, tie rod RH thread, axles w/50 to 74 in. tread

1шт.

8

384006R92

END

ASSY, tie rod RH thread, axles w/56 to 80 in. tread

1шт.

9

ROD ASSY, tie, (not serviced separately) order piece parts, axles w/50 to 74 in. tread

1шт.

9

ROD ASSY, tie, axles w/56 to 80 in. tread, (not serviced separately) order piece parts

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

10

358970R1

ARM

steering gear

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

3шт.

11

531250R1

SHIM

stay rod socket, .0097 (or as required)

1шт.

11

531251R1

SHIM

stay rod socket, .0897 (or as required)

1шт.

11

531252R1

SHIM

stay rod socket, .0299 (or as required)

1шт.

12

531256R2

SUPPORT ASSY.

SUPPORT, stay rod ball socket

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

102639

NUT,5/8"-11, G5

4шт.

13

533808R1

FIXING BRACKET

SOCKET, stay rod ball

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap

1шт.

14

379954R1

SHIM

stay rod ball socket cap

1шт.

15

528861R3

EXTENSION ASSY, front axle RH, axles w/50 to 74 in. tread

1шт.

15

528853R3

EXTENSION ASSY, front axle RH, axles w/56 to 80 in. tread

1шт.

16

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

17

405459R1

ARM

LH steering knuckle, 786, Serial Range: -9134

1шт.

17

405459R1

ARM

LH steering knuckle, 886, Serial Range: -17424

1шт.

17

405459R1

ARM

LH steering knuckle, 986, Serial Range: -25616

1шт.

17

405459R1

ARM

LH steering knuckle, 1086, Serial Range: -52509

1шт.

17

405459R1

ARM

LH steering knuckle, 1486, Serial Range: -27790

1шт.

17

148420C1

ARM

LH steering knuckle, 786, Start Serial: 9135

1шт.

17

148420C1

ARM

LH steering knuckle, 886, Start Serial: 17425

1шт.

17

148420C1

ARM

LH steering knuckle, 986, Start Serial: 25617

1шт.

17

148420C1

ARM

LH steering knuckle, 1086, Start Serial: 52510

1шт.

17

148420C1

ARM

LH steering knuckle, 1486, Start Serial: 27791

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

18

383994R1

CLAMP, front axle

4шт.

631191R1

BOLT,Hex, 5/8" - 11 x 5", Gr 8

SCREW, 5/8-11 x 5 hex-hd cap

4шт.

102639

NUT,5/8"-11, G5

4шт.

531851R1

PIN

front axle clamp

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

19

528857R1

BOLSTER, lower

1шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd cap

4шт.

20

28431R1

HEADED PIN,3/8" x 6 1/8"

PIN, 3/8 x 6-1/8 x 5.984 hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

405460R1

ARM

RH steering knuckle, 786, Serial Range: -9134

1шт.

21

405460R1

ARM

RH steering knuckle, 886, Serial Range: -17424

1шт.

21

405460R1

ARM

RH steering knuckle, 986, Serial Range: -25616

1шт.

21

405460R1

ARM

RH steering knuckle, 1086, Serial Range: -52509

1шт.

21

405460R1

ARM

RH steering knuckle, 1486, Serial Range: -27790

1шт.

21

148421C1

ARM

RH steering knuckle, 786, Start Serial: 9135

1шт.

21

148421C1

ARM

RH steering knuckle, 886, Start Serial: 17425

1шт.

21

148421C1

ARM

RH steering knuckle, 986, Start Serial: 25617

1шт.

21

148421C1

ARM

RH steering knuckle, 1086, Start Serial: 52510

1шт.

21

148421C1

ARM

RH steering knuckle, 1486, Start Serial: 27791

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

22

405831R91

BEARING

steering knuckle pivot thrust

2шт.

23

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

24

(Not used in this application)

1шт.

25

71785C92

STEERING KNUCKLE

KNUCKLE W/SEAL AND SHIELD

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

26

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

27

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub, steering knuckle pivot pin

2шт.

28

528860R3

EXTENSION

ASSY, front axle LH, axles w/50 to 74 in. tread

1шт.

28

528852R3

EXTENSION ASSY, front axle LH, axles w/56 to 80 in. tread

1шт.

29

528859R11

AXLE ASSY, front, axles w/50 to 74 in. tread

1шт.

29

528848R11

AXLE

ASSY, front, axles w/56 to 80 in. tread

1шт.

30

379943R1

BUSHING,38.11mm ID x 41.41mm OD x 38.1mm L

pivot pin

2шт.

10546D

BALL

Pivot Pin Bushing, .877" dia.

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

31

379941R1

AXLE PIN,38.1mm OD x 219.2mm L

PIN, front axle pivot

1шт.

32

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg angle drive type lub, front axle pivot

1шт.

33

379953R1

CAP

stay rod ball socket

1шт.

223441

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 hex-hd cap

2шт.

Выбрано товаров: 84
