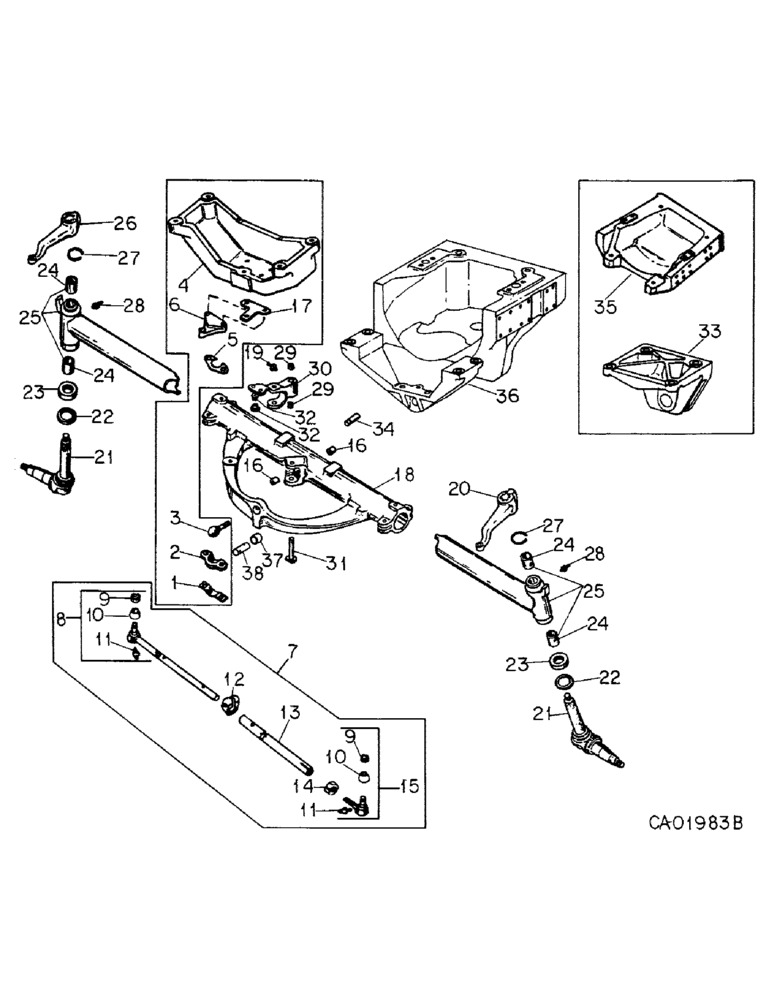

Справочник запчастей Case IH 886 (14-01) - SUSPENSION, ADJUSTABLE WIDE TREAD FRONT AXLE, STANDARD AXLE Suspension со схемами

1

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock, 886, Serial Range: -16296

1шт.

1

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock, 986, Serial Range: -23203

1шт.

1

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock, 1086, Serial Range: -44904

1шт.

1

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock, 1486, Serial Range: -24144

1шт.

2

379953R1

CAP

stay rod ball socket, 886, Serial Range: -16296

1шт.

2

379953R1

CAP

stay rod ball socket, 986, Serial Range: -23203

1шт.

2

379953R1

CAP

stay rod ball socket, 1086, Serial Range: -44904

1шт.

2

379953R1

CAP

stay rod ball socket, 1486, Serial Range: -24144

1шт.

3

65320C3

BALL

0.917", front axle stay rod, 886, Serial Range: -16296

1шт.

3

65320C3

BALL

0.917", front axle stay rod, 986, Serial Range: -23203

1шт.

3

65320C3

BALL

0.917", front axle stay rod, 1086, Serial Range: -44904

1шт.

3

65320C3

BALL

0.917", front axle stay rod, 1486, Serial Range: -24144

1шт.

Ref #3 please see quality comments on part #65320c3 for more detailed info on these two front axle stay rod balls. tm 7-30-97-BALL SIZE IS .917" IF DLR LOOKING FOR ONE THAT IS .877", THE PART # IS 10546D. HOWEVER, 10546D DOES NOT HAVE THE LONG THREADED SHAFT. IN ORDER TO MAKE THE .877 BALL WORK. MUST BORE AXLE TO .90 AND PRESS FIT IT IN. PER MARV HOOD...S2488-BULLETIN-

1шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

3/4 x 1-1/2 x 10 ga. 2nd

1шт.

274640

LOCK NUT,3/4"-16, GC

NUT, 3/4-16 cad hex. lock type 8

1шт.

4

531256R2

SUPPORT ASSY.

SUPPORT, stay rod ball socket, 886, Serial Range: -16296

1шт.

4

531256R2

SUPPORT ASSY.

SUPPORT, stay rod ball socket, 986, Serial Range: -23203

1шт.

4

531256R2

SUPPORT ASSY.

SUPPORT, stay rod ball socket, 1086, Serial Range: -44904

1шт.

4

531256R2

SUPPORT ASSY.

SUPPORT, stay rod ball socket, 1486, Serial Range: -24144

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

4шт.

5

379954R1

SHIM

stay rod ball socket cap, 886, Serial Range: -16296

1шт.

5

379954R1

SHIM

stay rod ball socket cap, 986, Serial Range: -23203

1шт.

5

379954R1

SHIM

stay rod ball socket cap, 1086, Serial Range: -44904

1шт.

5

379954R1

SHIM

stay rod ball socket cap, 1486, Serial Range: -24144

1шт.

6

533808R1

FIXING BRACKET

SOCKET, stay rod ball, 886, Serial Range: -16296

1шт.

6

533808R1

FIXING BRACKET

SOCKET, stay rod ball, 986, Serial Range: -23203

1шт.

6

533808R1

FIXING BRACKET

SOCKET, stay rod ball, 1086, Serial Range: -44904

1шт.

6

533808R1

FIXING BRACKET

SOCKET, stay rod ball, 1486, Serial Range: -24144

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap

1шт.

223441

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 hex-hd cap

2шт.

7

ROD ASSY, tie, (not serviced separately) order piece part from stock

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

8

384441R93

ROD

ASSY, tie LH, axles w/52 to 76 in. tread

1шт.

8

359984R93

TIE-ROD

ROD ASSY, tie LH, axles w/58 to 82 in. tread

1шт.

9

125267

NUT

5/8-NF slt type 5

2шт.

10

358900R1

SEAL

COVER, dust

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8-27 ptf str-lub, threaded tie rod end

2шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 taper drive self-tap lub, welded tie rod end

1шт.

12

359986R1

CLAMP

tie rod

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

181436

BODY,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 hex-hd cap

1шт.

13

384439R1

TUBE,0.937" ID, 1.187" OD, 15.312" Length

tie rod, axles w/52 to 76 in. tread

1шт.

13

383917R1

TUBE

tie rod, axles w/58 to 82 in. tread

1шт.

14

384442R1

JAM NUT

NUT, jam, axles w/52 to 76 in. tread

1шт.

14

374062R1

JAM NUT

NUT, jam, axles w/58 to 82 in. tread

1шт.

15

384440R92

END

ASSY, tie rod RH thread, axles w/52 to 76 in. tread

1шт.

15

384006R92

END

ASSY, tie rod RH thread, axles w/58 to 82 in. tread

1шт.

16

531242R1

BUSHING,50.89mm ID x 54.113mm OD x 38.1mm L

front axle pivot pin

2шт.

17

531250R1

SHIM

stay rod socket .0097 (or as required), 886, Serial Range: -16296

1шт.

17

531250R1

SHIM

stay rod socket .0097 (or as required), 986, Serial Range: -23203

1шт.

17

531250R1

SHIM

stay rod socket .0097 (or as required), 1086, Serial Range: -44904

1шт.

17

531250R1

SHIM

stay rod socket .0097 (or as required), 1486, Serial Range: -24144

1шт.

17

531251R1

SHIM

stay rod socket .0897 (or as required), 886, Serial Range: -16296

1шт.

17

531251R1

SHIM

stay rod socket .0897 (or as required), 986, Serial Range: -23203

1шт.

17

531251R1

SHIM

stay rod socket .0897 (or as required), 1086, Serial Range: -44904

1шт.

17

531251R1

SHIM

stay rod socket .0897 (or as required), 1486, Serial Range: -24144

1шт.

17

531252R1

SHIM

stay rod socket .0299 (or as required), 886, Serial Range: -16296

1шт.

17

531252R1

SHIM

stay rod socket .0299 (or as required), 986, Serial Range: -23203

1шт.

17

531252R1

SHIM

stay rod socket .0299 (or as required), 1086, Serial Range: -44904

1шт.

17

531252R1

SHIM

stay rod socket .0299 (or as required), 1486, Serial Range: -24144

1шт.

18

71818C91

AXLE

W/STAY ROD ASSY, front, axle w/52 to 76 in. tread, 886, Serial Range: -16296

1шт.

18

71818C91

AXLE

W/STAY ROD ASSY, front, axle w/52 to 76 in. tread, 986, Serial Range: -23203

1шт.

18

71818C91

AXLE

W/STAY ROD ASSY, front, axle w/52 to 76 in. tread, 1086, Serial Range: -44904

1шт.

18

71818C91

AXLE

W/STAY ROD ASSY, front, axle w/52 to 76 in. tread, 1486, Serial Range: -24144

1шт.

18

137663C91

AXLE

W/STAY ROD ASSY, front, axle w/52 to 76 in. tread, includes ref. no. 37, 886, Serial Range: -16296

1шт.

18

137663C91

AXLE

W/STAY ROD ASSY, front, axle w/52 to 76 in. tread, includes ref. no. 37, 986, Serial Range: -23203

1шт.

18

137663C91

AXLE

W/STAY ROD ASSY, front, axle w/52 to 76 in. tread, includes ref. no. 37, 1086, Serial Range: -44904

1шт.

18

137663C91

AXLE

W/STAY ROD ASSY, front, axle w/52 to 76 in. tread, includes ref. no. 37, 1486, Serial Range: -24144

1шт.

18

71816C91

CENTER AXLE

AXLE W/STAY ROD ASSY, front, axle w/58 to 82 in. tread, 886, Serial Range: -16296

1шт.

18

71816C91

CENTER AXLE

AXLE W/STAY ROD ASSY, front, axle w/58 to 82 in. tread, 986, Serial Range: -23203

1шт.

18

71816C91

CENTER AXLE

AXLE W/STAY ROD ASSY, front, axle w/58 to 82 in. tread, 1086, Serial Range: -44904

1шт.

18

71816C91

CENTER AXLE

AXLE W/STAY ROD ASSY, front, axle w/58 to 82 in. tread, 1486, Serial Range: -24144

1шт.

18

120733C91

AXLE, REAR

AXLE W/STAY ROD ASSY, front, axle w/58 to 82 in. tread, includes ref. no. 37, 786

1шт.

18

120733C91

AXLE, REAR

AXLE W/STAY ROD ASSY, front, axle w/58 to 82 in. tread, includes ref. no. 37, 886, Start Serial: 16297

1шт.

18

120733C91

AXLE, REAR

AXLE W/STAY ROD ASSY, front, axle w/58 to 82 in. tread, includes ref. no. 37, 986, Start Serial: 23204

1шт.

18

120733C91

AXLE, REAR

AXLE W/STAY ROD ASSY, front, axle w/58 to 82 in. tread, includes ref. no. 37, 1086, Start Serial: 44905

1шт.

18

120733C91

AXLE, REAR

AXLE W/STAY ROD ASSY, front, axle w/58 to 82 in. tread, includes ref. no. 37, 1486, Start Serial: 24145

1шт.

24998R1

BOLT,Hex, 3/4" - 16 x 4", Gr 8

3/4-16 x 4 hex-hd

4шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

218404

NUT,3/4"-16, G8

3/4-NF pln type 8

4шт.

650247R1

HEADED PIN,19.05mm OD x 165.1mm L

PIN, 3/4 x 6-1/2 str-hd

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 ptf str lub

1шт.

20

531249R2

ARM

RH steering knuckle, 786, Serial Range: -9134

1шт.

20

531249R2

ARM

RH steering knuckle, 886, Serial Range: -17424

1шт.

20

531249R2

ARM

RH steering knuckle, 986, Serial Range: -25616

1шт.

20

531249R2

ARM

RH steering knuckle, 1086, Serial Range: -52509

1шт.

20

531249R2

ARM

RH steering knuckle, 1486, Serial Range: -27790

1шт.

20

531249R2

ARM

RH steering knuckle, 786, Serial Range: -9134

1шт.

20

531249R2

ARM

RH steering knuckle, 886, Serial Range: -17424

1шт.

20

531249R2

ARM

RH steering knuckle, 986, Serial Range: -25616

1шт.

20

531249R2

ARM

RH steering knuckle, 1086, Serial Range: -52509

1шт.

20

531249R2

ARM

RH steering knuckle, 1486, Serial Range: -27790

1шт.

20

531249R2

ARM

RH steering knuckle, 786, Serial Range: -9134

1шт.

20

531249R2

ARM

RH steering knuckle, 886, Serial Range: -17424

1шт.

20

531249R2

ARM

RH steering knuckle, 986, Serial Range: -25616

1шт.

20

531249R2

ARM

RH steering knuckle, 1086, Serial Range: -52509

1шт.

20

531249R2

ARM

RH steering knuckle, 1486, Serial Range: -27790

1шт.

20

531249R2GV

STEERING ARM

Value, Steering Knuckle

1шт.

20

148419C1

STEERING ARM

ARM, RH steering knuckle, 786, Start Serial: 9135

1шт.

20

148419C1

STEERING ARM

ARM, RH steering knuckle, 886, Start Serial: 17425

1шт.

20

148419C1

STEERING ARM

ARM, RH steering knuckle, 986, Start Serial: 25617

1шт.

20

148419C1

STEERING ARM

ARM, RH steering knuckle, 1086, Start Serial: 52510

1шт.

20

148419C1

STEERING ARM

ARM, RH steering knuckle, 1486, Start Serial: 27791

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga.

1шт.

21

71785C92

STEERING KNUCKLE

KNUCKLE W/SEAL, 370254R91 and shield, 48701D, steering

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt-hex.

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

22

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

23

405831R91

BEARING

steering knuckle pivot thrust

1шт.

Part was 405831r91 prior to gps conversion we subbed it to 185106c91 - during gps conversion europe subbed 405831r91 to 527295r91 - this is used in europe only on cx series - we need to activate 185106c91 in north america - marv will change - kl 11/30/99

1шт.

24

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

replaces 376099R1

4шт.

25

531258R93

EXTENSION

ASSY, front axle, axle w/52 to 76 in. tread

2шт.

25

531260R93

AXLE

EXTENSION ASSY, front axle, axle w/58 to 82 in. tread

2шт.

26

531248R2

ARM

LH steering knuckle, 786, Serial Range: -9134

1шт.

26

531248R2

ARM

LH steering knuckle, 886, Serial Range: -17424

1шт.

26

531248R2

ARM

LH steering knuckle, 986, Serial Range: -25616

1шт.

26

531248R2

ARM

LH steering knuckle, 1086, Serial Range: -52509

1шт.

26

531248R2

ARM

LH steering knuckle, 1486, Serial Range: -27790

1шт.

26

531248R2GV

STEERING ARM

Value, Steering Knuckle

1шт.

26

148418C1

ARM

LH steering knuckle, 786, Start Serial: 9135

1шт.

26

148418C1

ARM

LH steering knuckle, 886, Start Serial: 17425

1шт.

26

148418C1

ARM

LH steering knuckle, 986, Start Serial: 25617

1шт.

26

148418C1

ARM

LH steering knuckle, 1086, Start Serial: 52510

1шт.

26

148418C1

ARM

LH steering knuckle, 1486, Start Serial: 27791

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga.

1шт.

27

(Not used in this application)

1шт.

28

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub, steering knuckle pivot pin

2шт.

29

71788C1

BUSHING,25.4mm ID x 28.6mm OD x 25.4mm L

2шт.

30

71787C91

ARM

ASSY, center steering

1шт.

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

2шт.

31

531239R1

PIN,50.8mm OD x 193.42mm L

center arm pivot

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

Q175

WASHER

1.031 x 1.75 x .042 (or as required)

1шт.

71421C1

WASHER

1.631 x 1.75 x .156 (or as required)

3шт.

32

531237R1

CAP

trunnion

2шт.

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

trunnion cap

2шт.

575812R1

WASHER

21/32 x 1-1/2 x 11 ga.

2шт.

33

531263R1

BOLSTER

lower, 886, Serial Range: -16296

1шт.

33

531263R1

BOLSTER

lower, 986, Serial Range: -23203

1шт.

33

531263R1

BOLSTER

lower, 1086, Serial Range: -44904

1шт.

33

531263R1

BOLSTER

lower, 1486, Serial Range: -24144

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd cap type 8

2шт.

U5360

AXLE PIN

PIN, 3/8 x 6-1/8 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

34

531240R1

AXLE PIN,50.77mm OD x 177.04mm L

PIN, front axle pivot, 886, Start Serial: 16297

1шт.

34

531240R1

AXLE PIN,50.77mm OD x 177.04mm L

PIN, front axle pivot, 986, Start Serial: 23204

1шт.

34

531240R1

AXLE PIN,50.77mm OD x 177.04mm L

PIN, front axle pivot, 1086, Start Serial: 44905

1шт.

34

531240R1

AXLE PIN,50.77mm OD x 177.04mm L

PIN, front axle pivot, 1486, Start Serial: 24145

1шт.

PART THAT LOCKS INTO REF 34 IS 28431R1. (3/8X6-1/8") bolt subs to 39-5698 bolt, cam djo 8/5/02

1шт.

34

144216C1

AXLE PIN

PIN, front axle pivot, 786

1шт.

34

144216C1

AXLE PIN

PIN, front axle pivot, 886, Serial Range: -16296

1шт.

34

144216C1

AXLE PIN

PIN, front axle pivot, 986, Serial Range: -23203

1шт.

34

144216C1

AXLE PIN

PIN, front axle pivot, 1086, Serial Range: -44904

1шт.

34

144216C1

AXLE PIN

PIN, front axle pivot, 1486, Serial Range: -24144

1шт.

PART THAT LOCKS INTO REF 34 IS 28431R1. (3/8X6-1/8") bolt subs to 39-5698 bolt, cam djo 8/5/02

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, str-lub

1шт.

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING, 1/8 ptf short elbow, lub, used w/auxiliary front endweight

1шт.

35

531244R3

DRIVE SPROCKET

BOLSTER ASSY, upper, 886, Serial Range: -16296

1шт.

35

531244R3

DRIVE SPROCKET

BOLSTER ASSY, upper, 986, Serial Range: -23203

1шт.

35

531244R3

DRIVE SPROCKET

BOLSTER ASSY, upper, 1086, Serial Range: -44904

1шт.

35

531244R3

DRIVE SPROCKET

BOLSTER ASSY, upper, 1486, Serial Range: -24144

1шт.

36

139280C1

BOLSTER

upper, 786

1шт.

36

139280C1

BOLSTER

upper, 886, Start Serial: 16297

1шт.

36

139280C1

BOLSTER

upper, 986, Start Serial: 23204

1шт.

36

139280C1

BOLSTER

upper, 1086, Start Serial: 44905

1шт.

36

139280C1

BOLSTER

upper, 1486, Start Serial: 24145

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2 pln type 8

4шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

4шт.

37

482669R1
