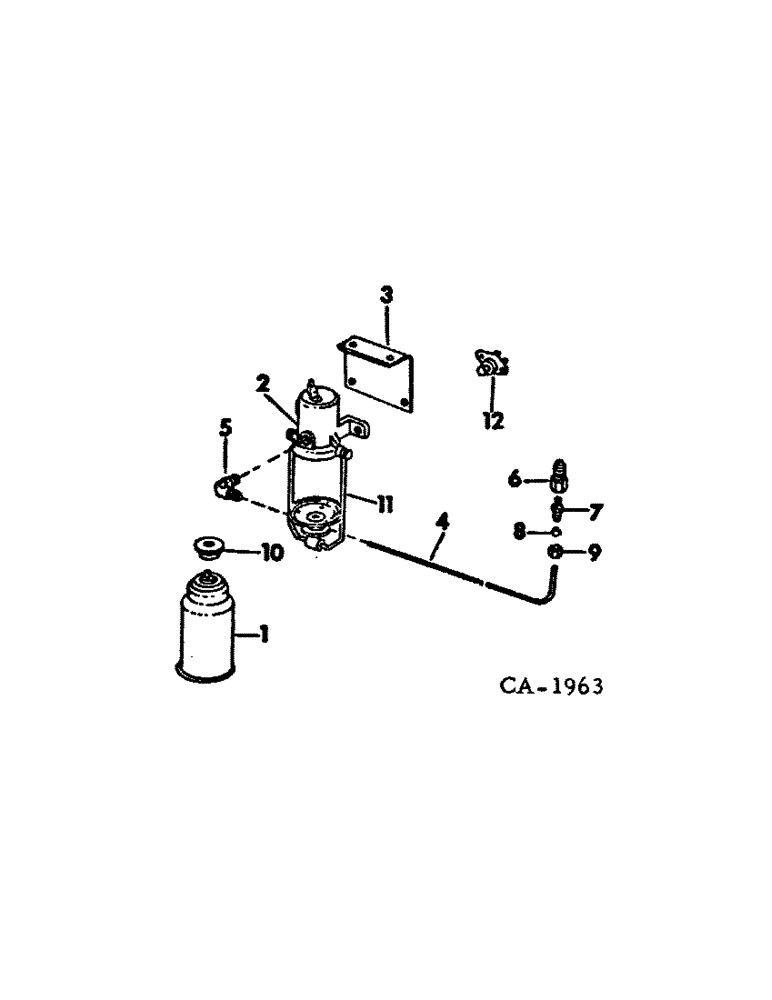

Запчасти Case IH 886 (12-17) - POWER, ETHER STARTING, 786 AND 886 TRACTORS Power

1

385064R91

FLUID

ether starting 12 oz can

1шт.

2

121842C91

SOLENOID SWITCH

SOLENOID ASSY, ether injection, includes ref. nos. 10 and 11

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

95-11034

WASHER,1/4"

13/32 x 11/16 x .051

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103634

NUT

5/16-18 hex.

2шт.

3

538012R2

BRACKET

ether starting solenoid, 886 tractor w/d-360 engine

1шт.

3

BRACKET, ether starting solenoid, for 786 and 886 tractor w/d-358 engine see eng-5 section H for bracket

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

4

TUBE ASSY, ether solenoid to manifold, 886 tractor w/d-360 engine, use 8 in. of 1/8 OD copper tubing from 50 ft roll marked 995059R1 & 2, 121220 nuts & 2, 121322 sleeves

1шт.

4

TUBE ASSY, ether solenoid to manifold, 786 tractors, 886 tractor w/D-358 engine, use 23 in. of 1/8 OD copper tubing from 50 ft roll marked 995059R1, 2, 121220 nuts & 2, 121322 sleeves

1шт.

5

140304

ELBOW

1/8-27 90 deg ball sleeve tube

1шт.

6

269635R91

NOZZLE CAP

NOZZLE, starting fluid

1шт.

7

NLS

NO LONGER SERVICED

CONNECTOR, tube

1шт.

8

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

1шт.

9

121220

TUBE NUT

NUT, tube connector

1шт.

10

395686R1

GASKET

ether starting injector

1шт.

11

121851C1

RETAINER

BAIL ASSY, injector

1шт.

12

397940R93

SWITCH

ether solenoid push button

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt-pan-hd mach

2шт.

138479

PLUG

WASHER, no. 10 ext tooth lock

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.
