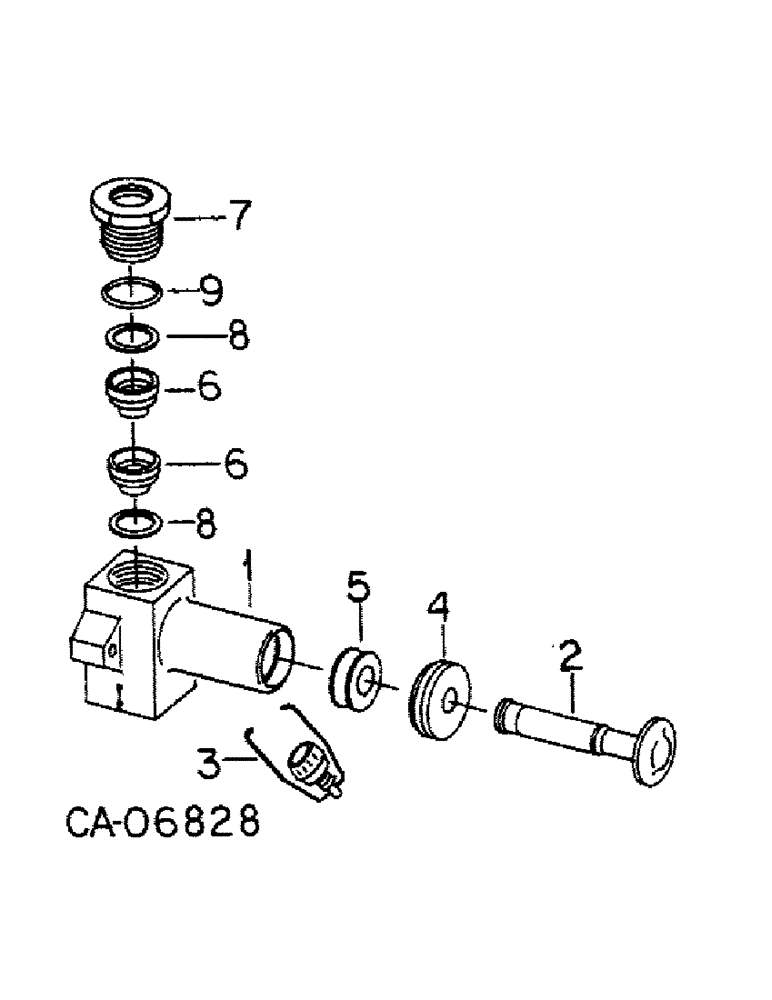

Запчасти Case IH 886 (12-15) - POWER, HAND PRIMER VALVE PUMP, 866 WITH D-358 ENGINE Power

303753R91

PUMP

ASSY, hand primer

1шт.

1

NSS

NOT SOLD SEPARAT

BODY (Not serviced separately) order pump assy

1шт.

2

309017R1

PLUNGER

1шт.

3

307861R91

LOCK ASSY

CLAMP ASSY, screw wire and

1шт.

4

309018R1

GUIDE

plunger

1шт.

5

309019R1

OIL RESERVOIR

SEAL, piston

1шт.

6

346813R91

LOCK VALVE

VALVE

2шт.

7

307867R1

NUT, valve

1шт.

8

59995D

GASKET, valve

2шт.

9

307870R1

RING

valve nut seal

1шт.
